ET211

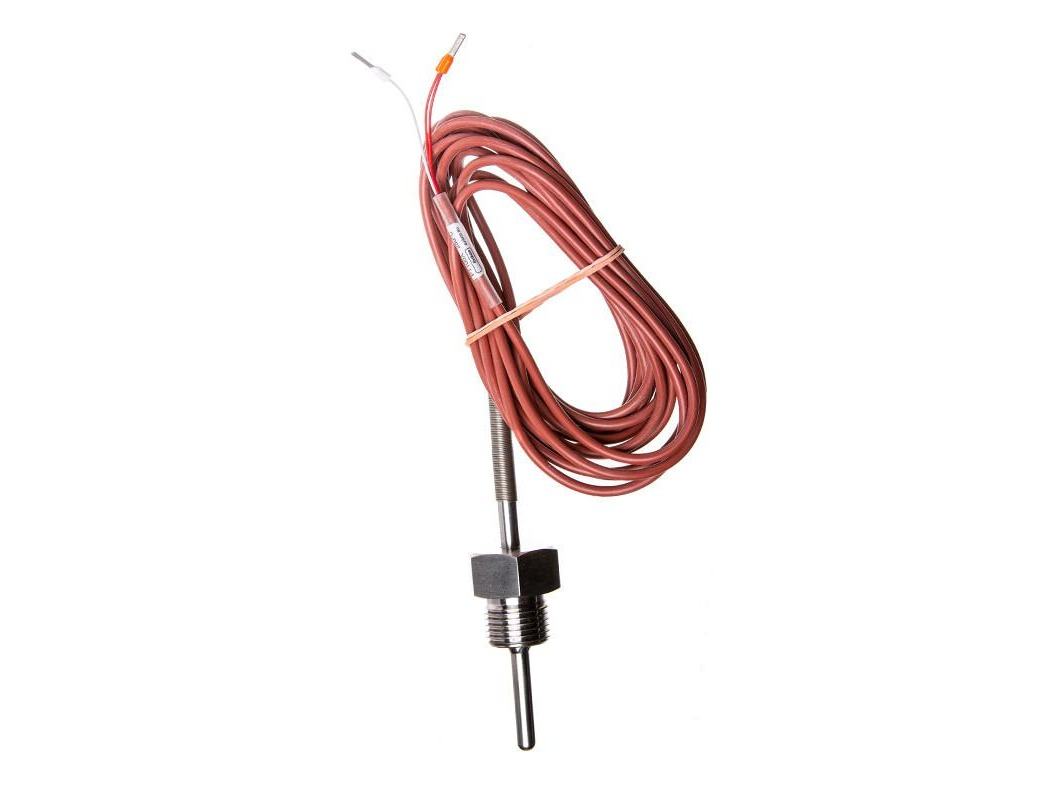

Screw-in resistance temperature sensor probes are intended for measuring temperatures in liquids and gases, ensuring reliable process connection.
Solicitar cotizaciónDescargar ficha técnica
Applications include heating, cooling installations and industrial automation.
Depending on the application needs, many features can be supplied: platinum RTD sensing elements with specific nominal resistance and accuracy class for temperatures up to +500 °C and common thermistors, protection tubes of various size with threaded fittings, connection cables for dry or humid conditions and flexible stainless steel armour.

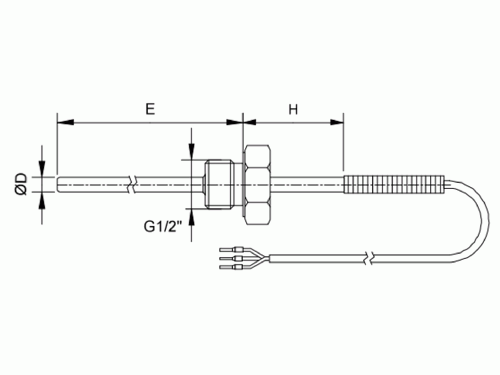

The standard version includes Pt100 class A RTD sensor with measurement range -50...+250°C, Ø 6 mm protection tube with G1/2 thread fitting, 3 meters of 3-wire silicone+insulated cable.
| Sensing element | Pt100, Pt1000 class A or B according to EN 60751 |
|---|---|
| Measurement range | -50...+250 °C or -50...+500 °C |
| Protection tube | A4 / AISI316L stainless steel |
| Dimensions | Ø6 mm, L50...300 mm |
| Protection class | IP55 as standard, IP68 on request |
| Cable | 3 wires (red-red-white), 2 wires (red-white) |
| Maximum cable temperature (continuous / peak) | silicone insulated 180 / 230 °C; fluoroplast insulated 260 / 310 °C; fiberglass insulated 480 / 530 °C |
| Mounting accessories | welded thread fitting |
