ET910

Temperature Measurement Cable (ET910)

Name: Temperature Measurement Cable (ET910)
SKU: ET910

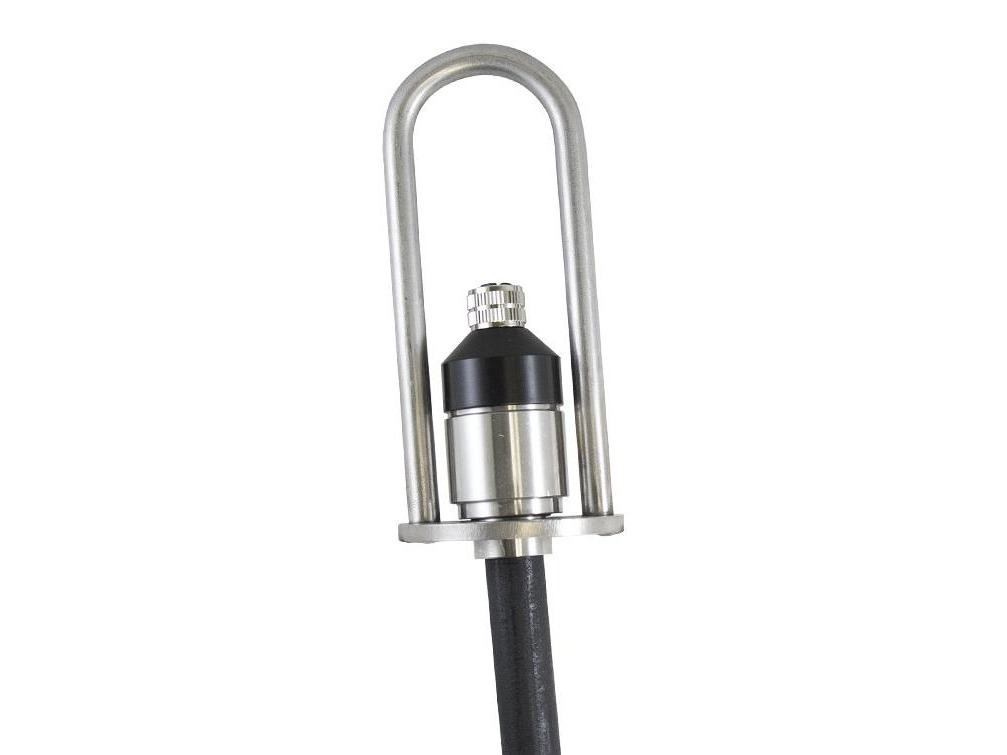

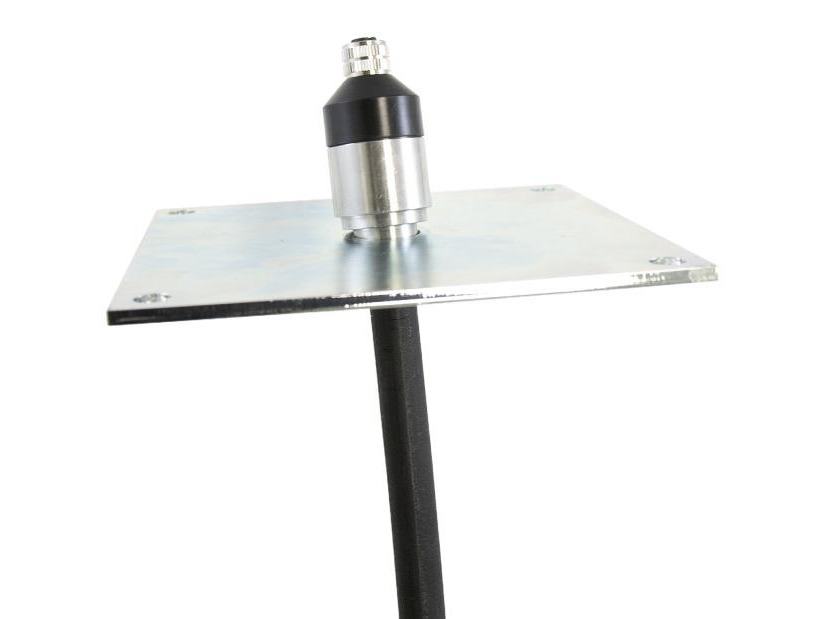

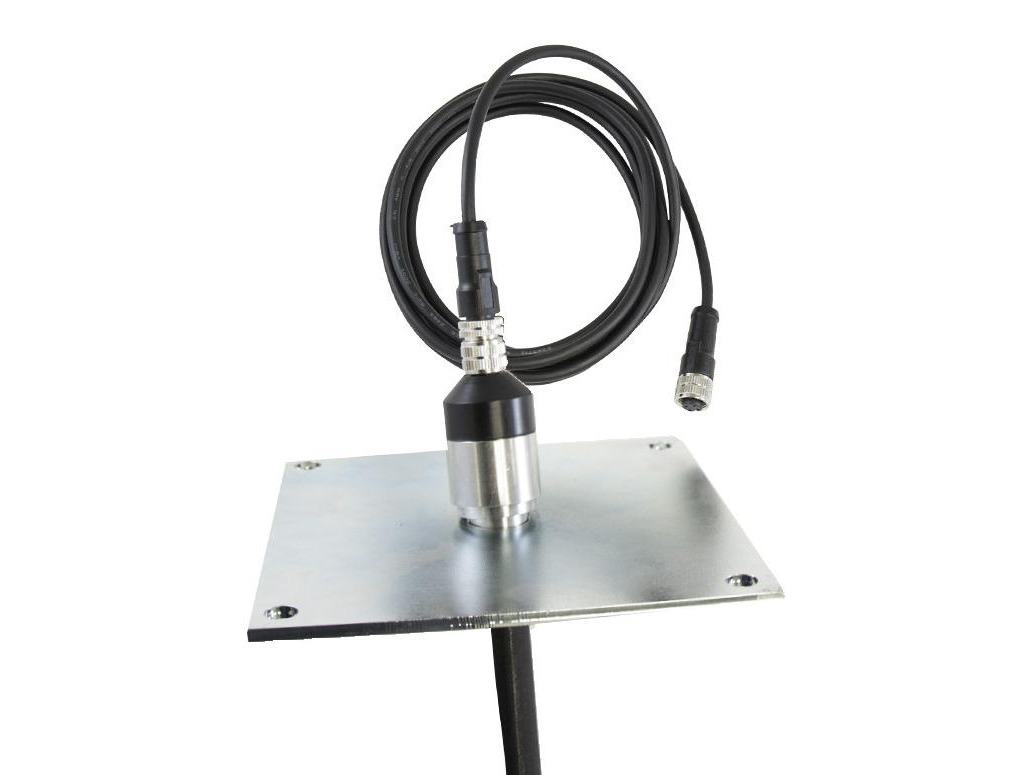

ET910 multipoint temperature measurement cable is developed for reliable temperature measurement in grain silos during product long-term storage. The cables are installed vertically by suspension from silo ceiling or through the roof, by special fixing hooks or flanges.

Solicitar cotización Descargar ficha técnica

Features

For temperature measurement -40...+85°C
Accurate and reliable temperature measurement
Up to 32 digital addressable 1-wire sensors
IP67 water and dust protected design
SWA protection tube

Description

Digital 1-wire temperature sensors with sequence detection function are used, so the physical position of each sensor in the cable is automatically detected.

ET910 temperature measurement cable is fully protected from water and dust.

Technical Data

Sensing element	digital, 1-wire (µLAN interface)
Number of sensors in cable	up to 32, depending on application
Interval between sensors	1...3 m, depending on application
Measurement range	-40...+85 °C
Resolution	0,0625 °C
Protection tube	Ø15 mm; steel wire armoured
Protection class	IP67
