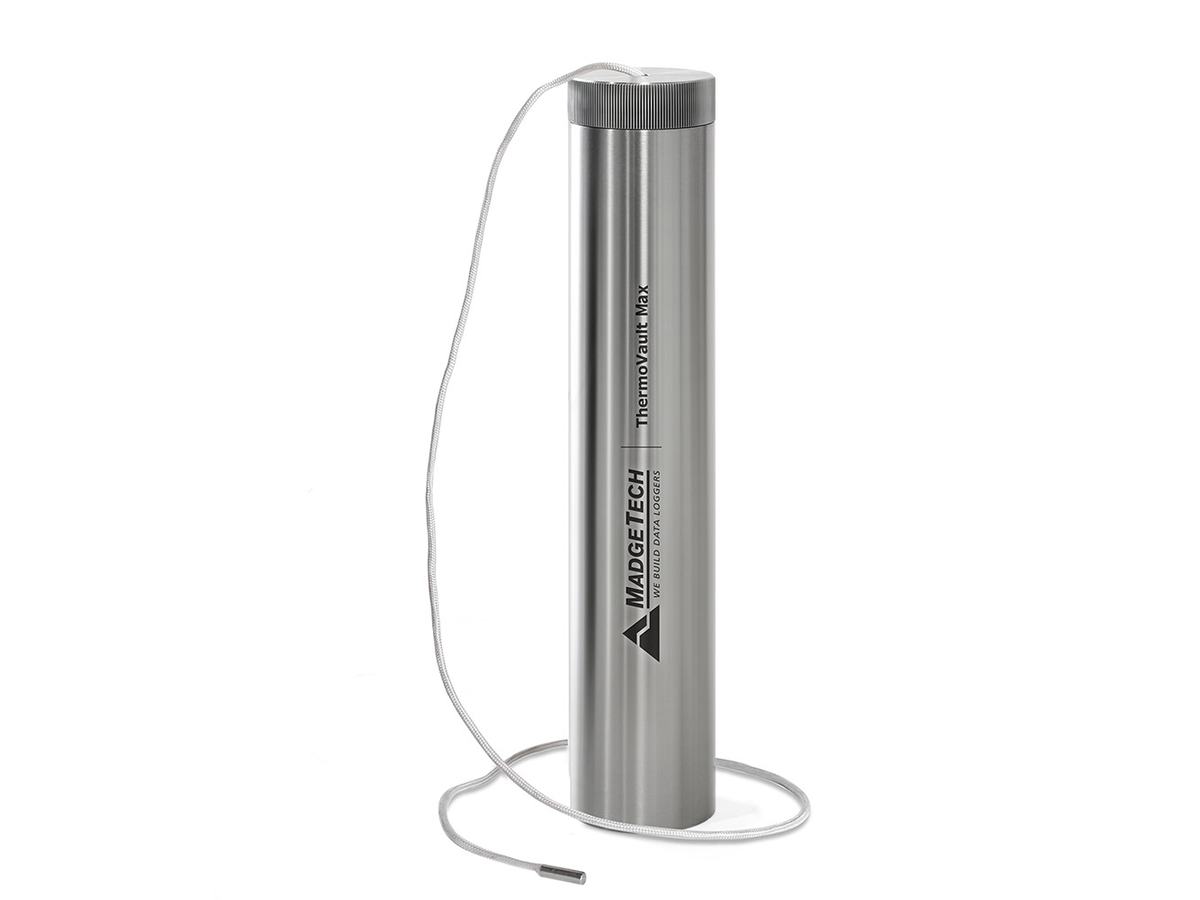

DHS Data Logging System
DHS (DHS Data Logging System)
The DHS is a data logging system for validating dry heat sterilization cycles. Includes standard calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- HiTemp140-M12 High Temperature Data Logger
- ThermoVault Max Extreme Temperature Thermal Barrier
- 36 in. Glass Braided RTD Probe or Stainless Steel Overbraid with M12 Connector
Description

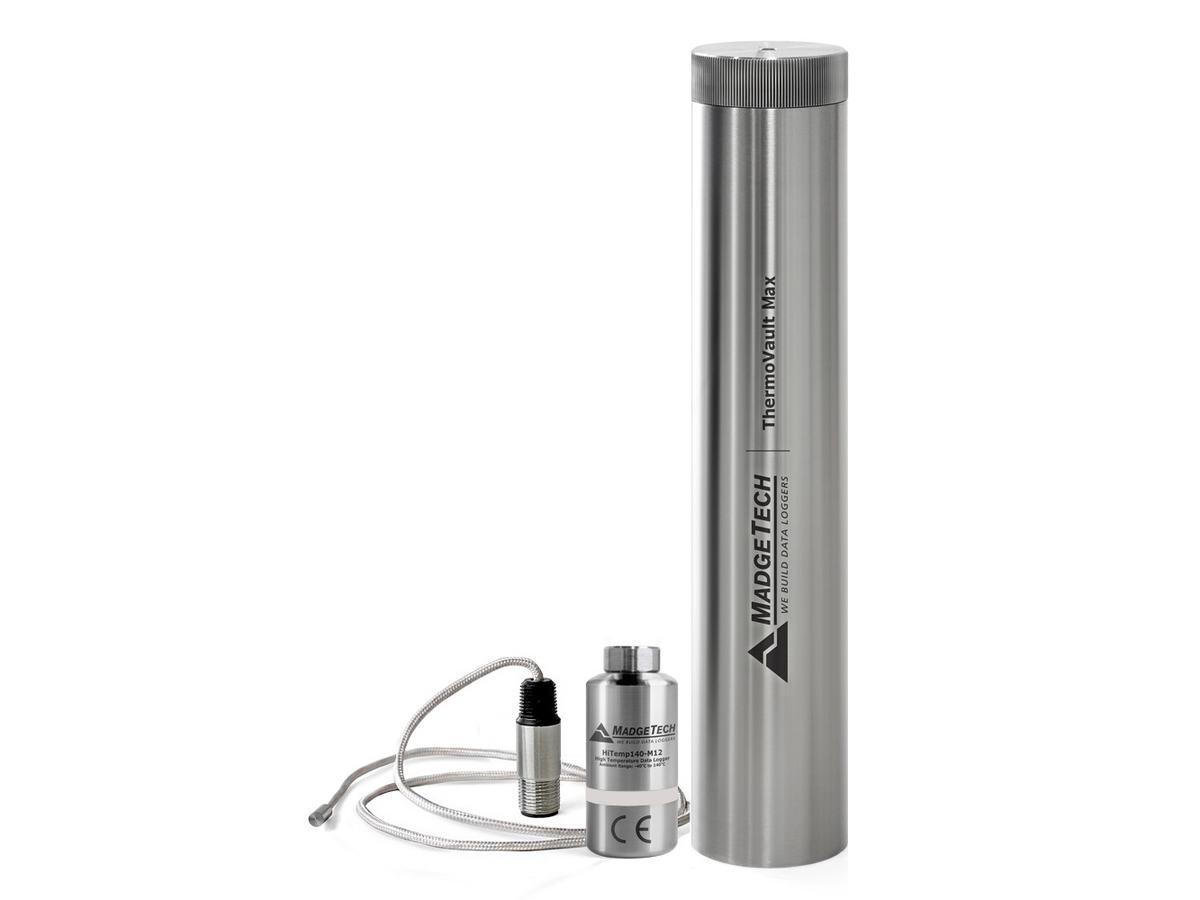

The DHS Includes:
(1) HiTemp140-M12: High Temperature Data Logger
(1) ThermoVault Max: Extreme Temperature Thermal Barrier
(1) 36 in. Glass Braided RTD Probe with M12 Connector and Flat Probe Tip OR 36 in. Fiberglass RTD Probe with Stainless Steel Overbraid
The DHS is capable of withstanding and measuring temperatures up to 400 °C (752 °F), allowing it to record throughout the entire sterilization process. It’s simple to use, just insert the HiTemp140-M12 into the ThermoVault Max enclosure, screw the cap back on securely and the device is ready to deploy.
The HiTemp140-M12 can record and store up to 43,690 time stamped readings and can utilize a wide variety of RTD probe options with its M12 connection.
The DHS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
This system is not IP rated and is for use in dry applications only.
General
| Memory | 21,504 readings |
|---|---|
| Reading Rate | 4 readings per second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 1 year typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery |
| Material | 316 Stainless Steel, PTFE, Silicone |
| Dimensions | 1.75 in OD x 9.6 in L (44.45 mm OD x 243.8 mm L) |
| IP Rating | This system is not IP rated and is for use in dry applications only |
| Operating Environment | -200 °C to 400 °C %RH to 95 %RH non-condensing |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
Temperature
| Temperature Sensor | 36 inch Glass Braided RTD depyrogenation probe |
|---|---|
| Temperature Range | -200 °C to +400 °C |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.02 °F) |
| Temperature Calibrated Accuracy | ±1.2 °C (-200 °C to +400 °C) |
Documentos
Instrumentos relacionados

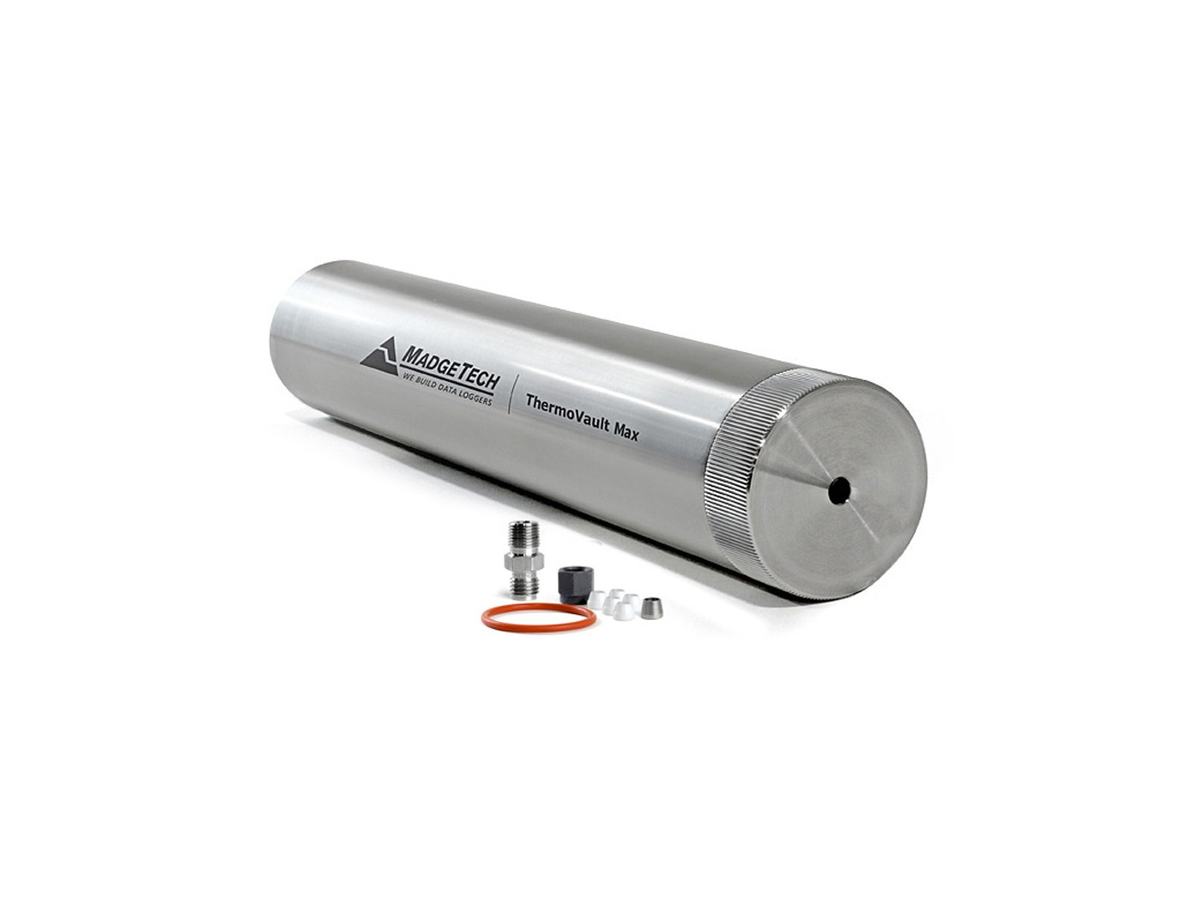

TMAX Wet Seal Kit
