EggTemp
EggTemp

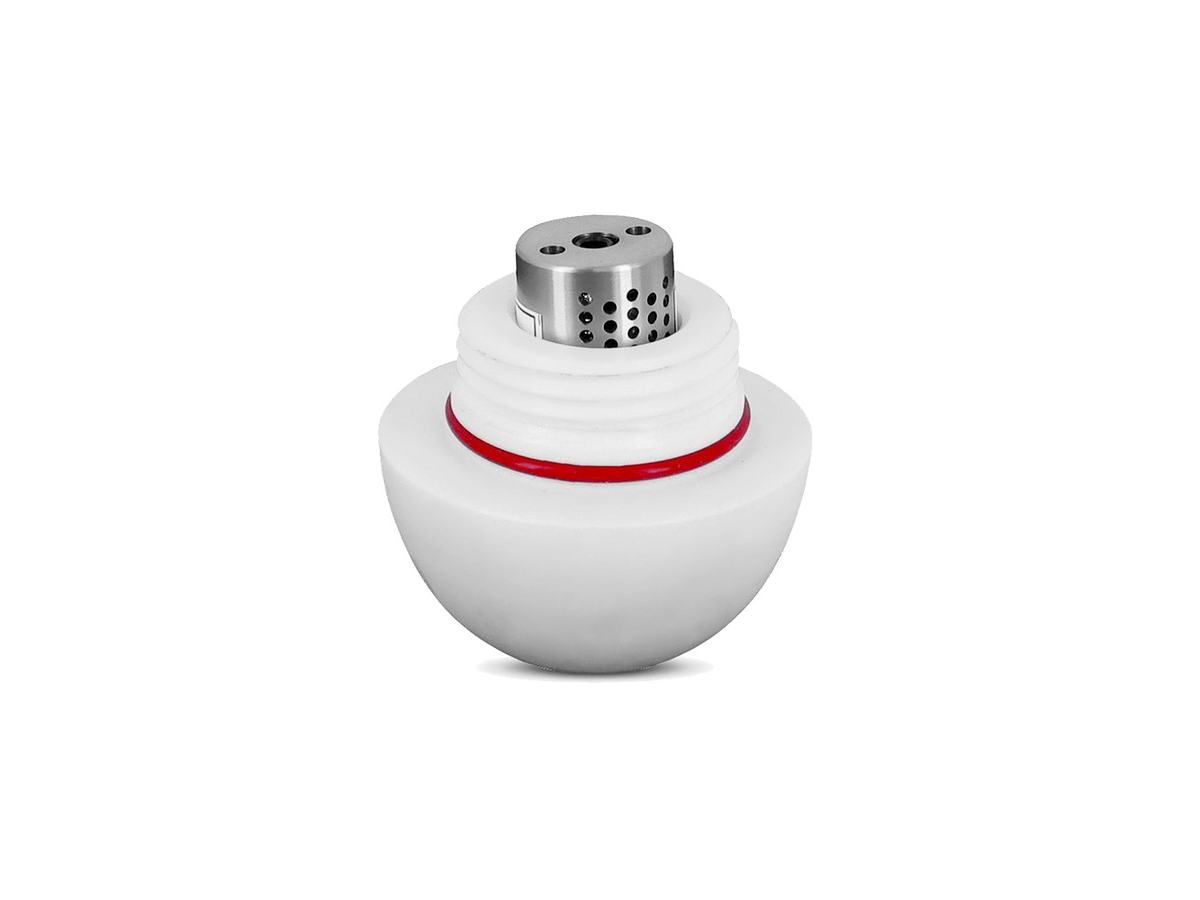

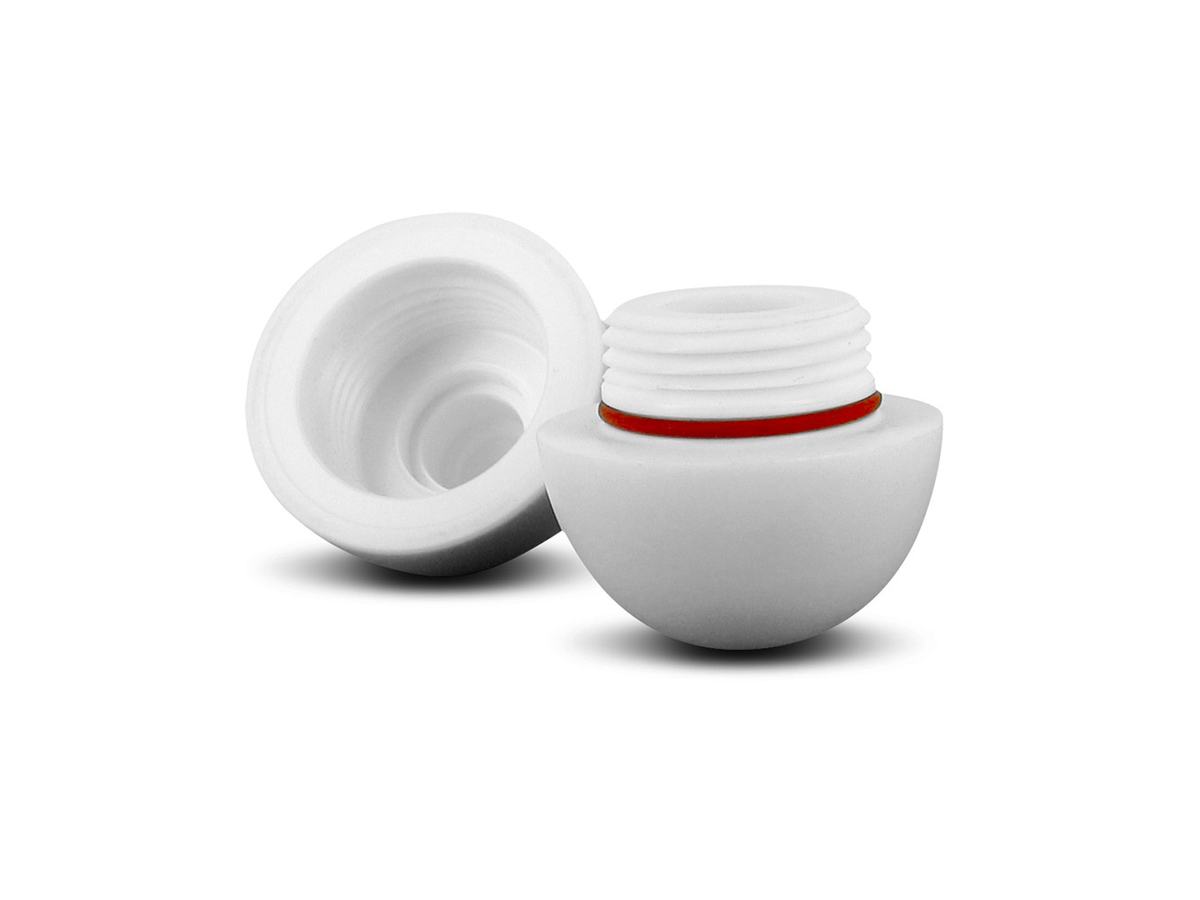

The EggTemp is an egg-shaped temperature data logger. Includes ISO17025 accredited calibration certificate.
Key Features
- Submersible
- Mimics Real Egg
- Configurable Temperature Alarms
Description
The EggTemp data logger is specifically designed to measure and record data of the temperature of eggs during shipping, storage and incubation. This device easily fits into egg cartons and responds to the ambient environment as a real egg would, simulating the temperature of the actual product.
The EggTemp is submersible and can measure temperatures up to +60 °C (+140 °F) with an accuracy of ±0.5 °C. The non-volatile memory can hold up to 32,767 readings and will retain data even if the battery becomes discharged.
The EggTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 32,767 readings |
|---|---|
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Baud Rate | 38,400 |
| LED Indicators | Red & Green |
| Battery Life | 1 year |
| Material | Enclosure: HDPE; Logger: Stainless Steel |
| Dimensions | 2.25 in x 1.68 in dia. (57.15 mm x 42.67 mm dia.) |
| IP Rating | IP68 |
| Operating Environment | 0 °C to +60 °C (+32 °F to +140 °F), 0 %RH to 100%RH |
| Required Interface Package | IFC202 |
| Approvals | CE |
Temperature
| Temperature Sensor | Internal semiconductor |
|---|---|
| Temperature Range | 0 °C to +60 °C (+32 °F to +140 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C |
