ETR101A
ETR101A
The ETR101A is a data logging system for exhaust temperature profiling. Includes standard calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- TC101A Temperature Data Logger
- Type K Thermocouple
- IFC200 Data Logger Interface
- Weatherproof Enclosure
Description

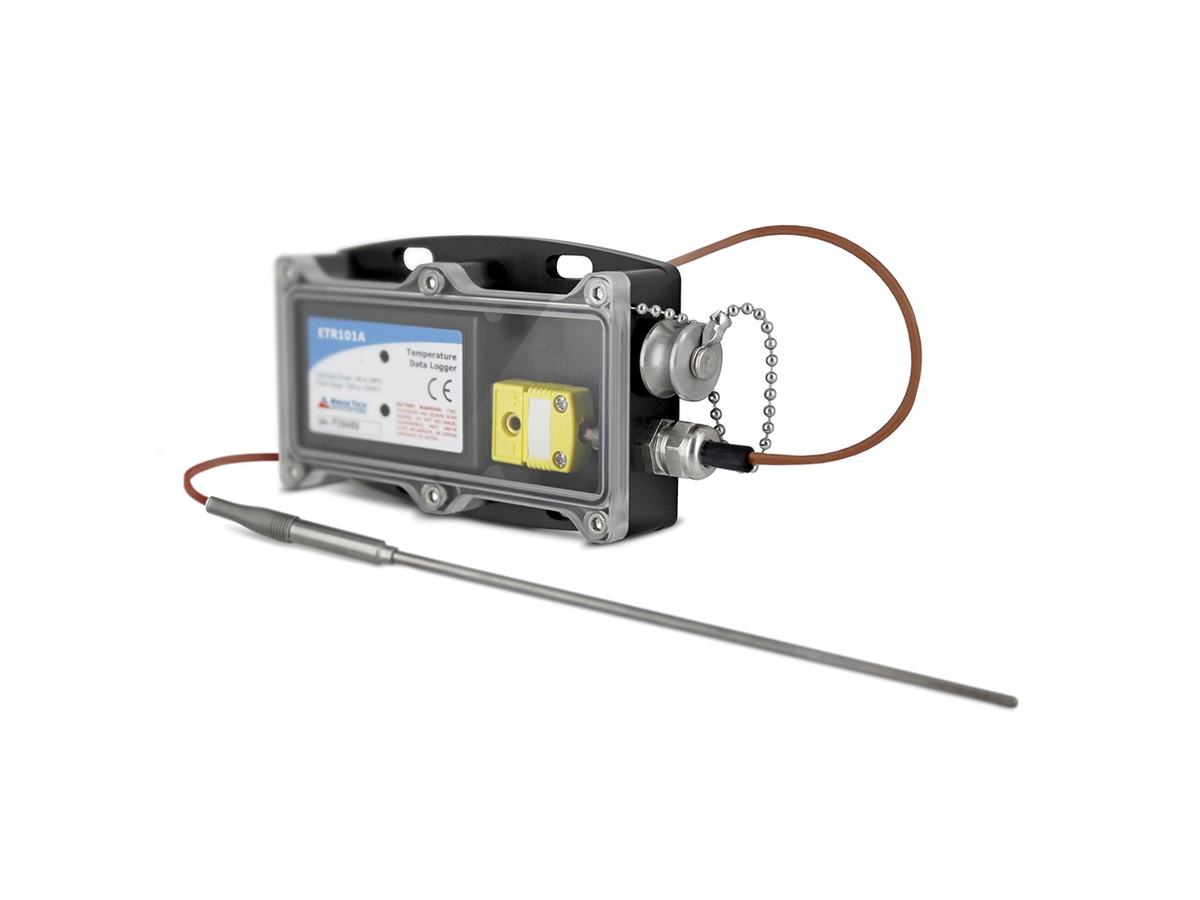

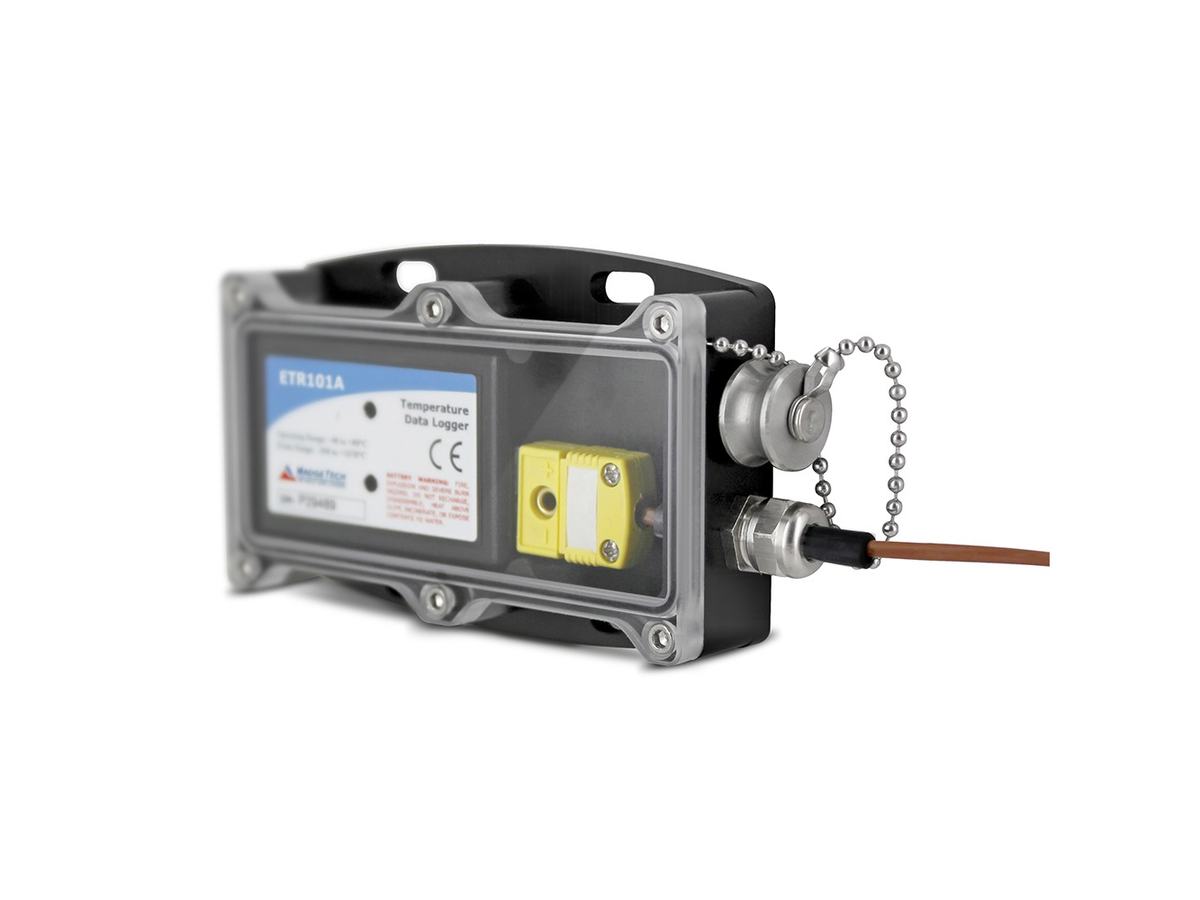

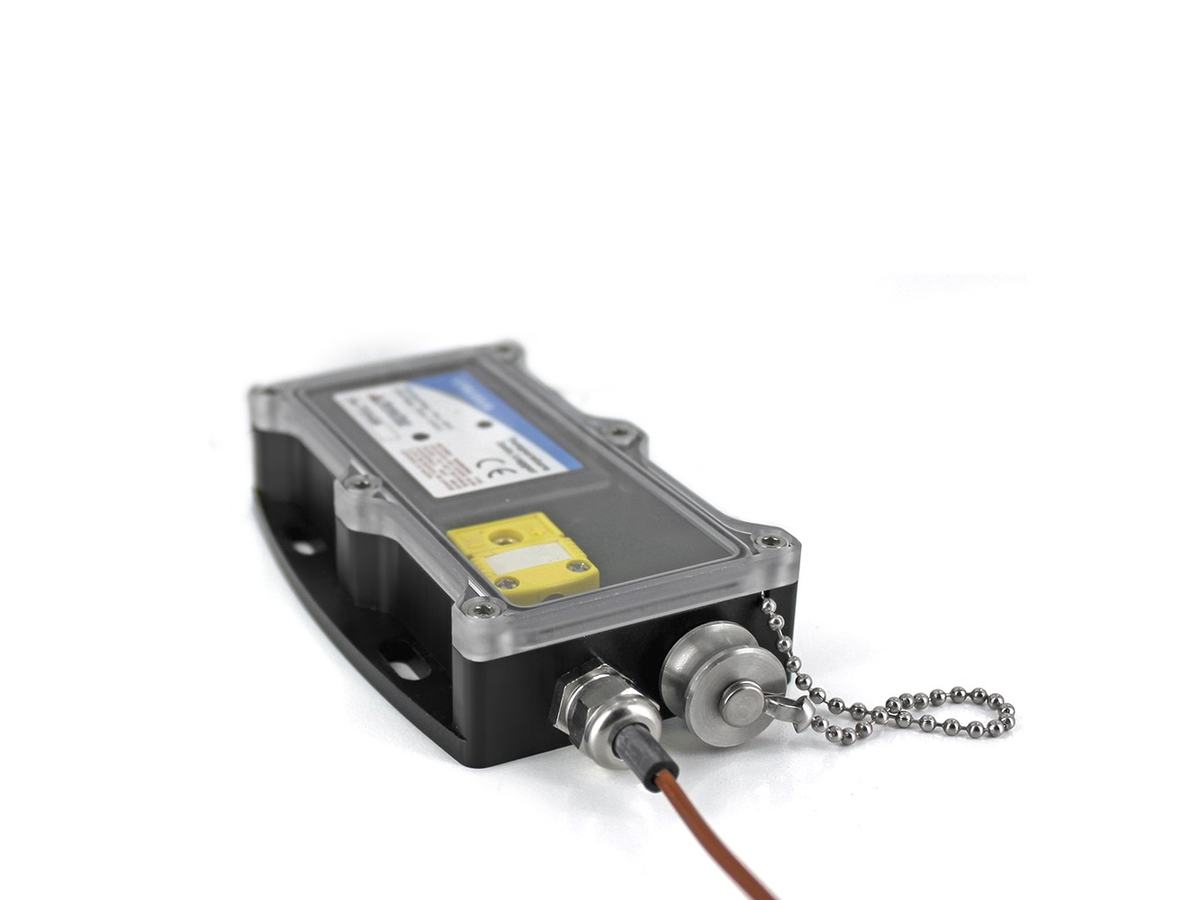

The ETR101A Includes:
(1) TC101A: Temperature Data Logger
(1) Type K Thermocouple
(1) IFC200: Data Logger Interface
(1) Weatherproof Enclosure
(1) Hex Screwdriver
(1) MadgeTech 4 Software
The ETR101A is a complete system designed to profile the exhaust temperature of on-road vehicles and off-road equipment. Once the temperature profile is created, its provided to the diesel particulate filter (DPF) manufacturer to aid in the selection of the correct DPF for the exhaust system.
Setup is simple and easy. Using the MadgeTech 4 Software, program the data logger for a set period of time then mount the logger (in its water resistant enclosure) to the vehicle. Data from the logger is then retrieved by using the IFC200 to download data to the MadgeTech 4 Software. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 1,032,192 readings (all channels enabled) |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red and Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -20 °C to 80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC200 |
Temperature
| Temperature Sensor | Semiconductor |
|---|---|
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.25 °C (±0.45 °F) |
| Remote Channel Temperature Sensor | Thermocouple Type K |
| Remote Channel Temperature Range | -260 °C to +899 °C (-436 °F to +1650.2 °F) |
| Remote Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Remote Channel Temperature Calibrated Accuracy | ±0.5 °C |
Galeria
Configurar o equipamento
Escolha modelo, sondas e acessórios. As combinações incompatíveis são bloqueadas na hora; as demais regras são verificadas ao adicionar o equipamento à cotação.
Carregando as opções…
ETR101A
É possível colar um código e a configuração se monta sozinha.
Serviços e acessórios
São cotados à parte: não é preciso configurar o equipamento.
Documentos
Instrumentos relacionados

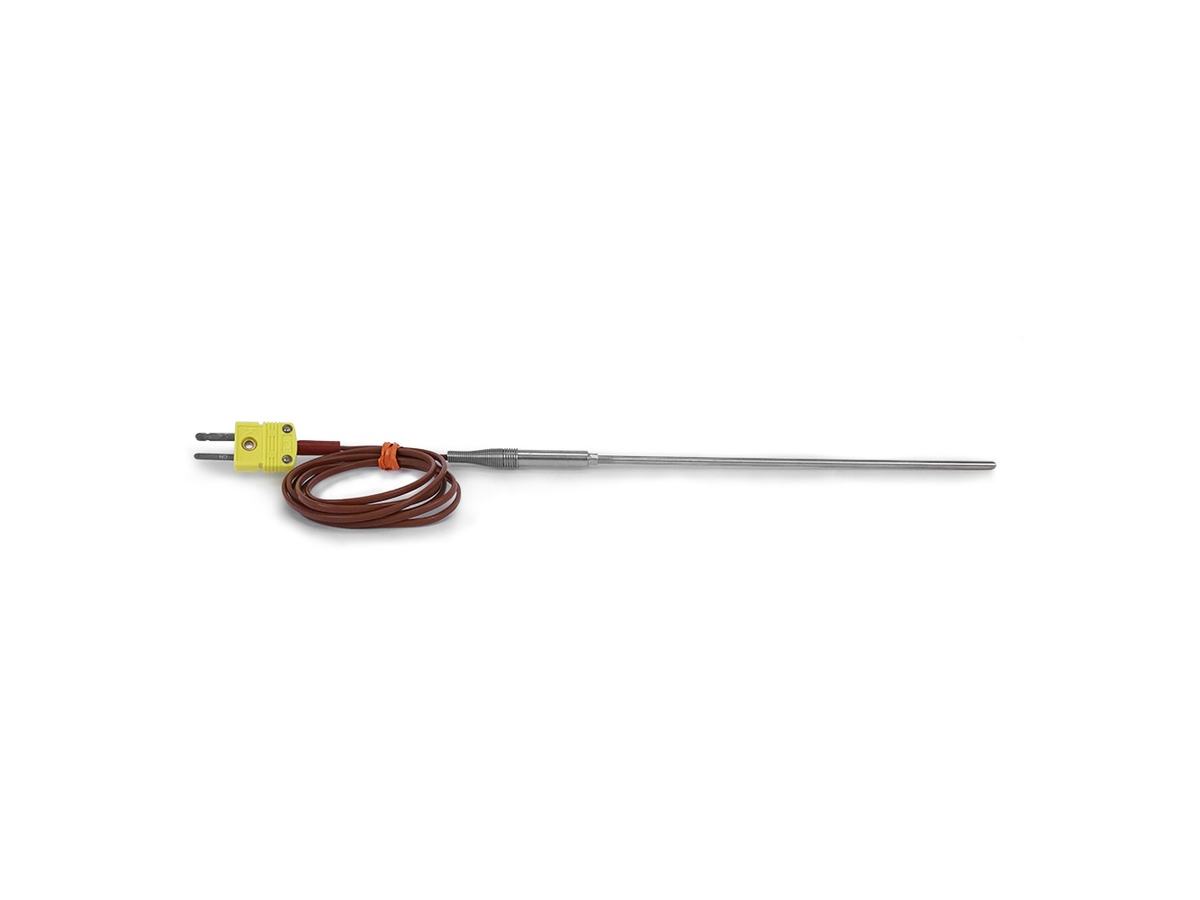

Type K 36″ Thermocouple 6″ Sheath (TJ36-CASS-18U-6-SMP-M)
