LF101A
LF101A
The LF101A is a data logging system to measure and record leaf wetness. Includes a declaration of conformance.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- Bridge101A Bridge Data Logger
- Leaf Wetness Sensor
- Waterproof Enclosure
Description

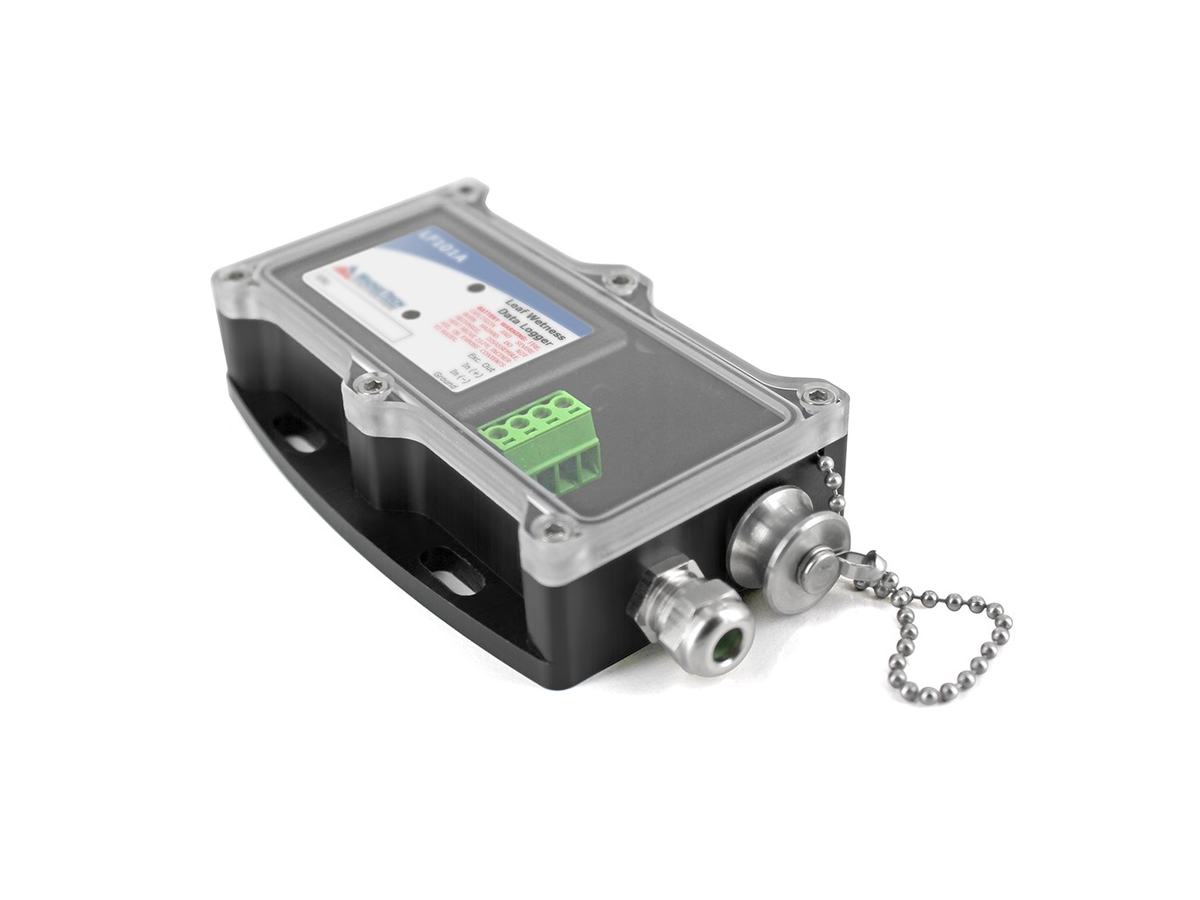

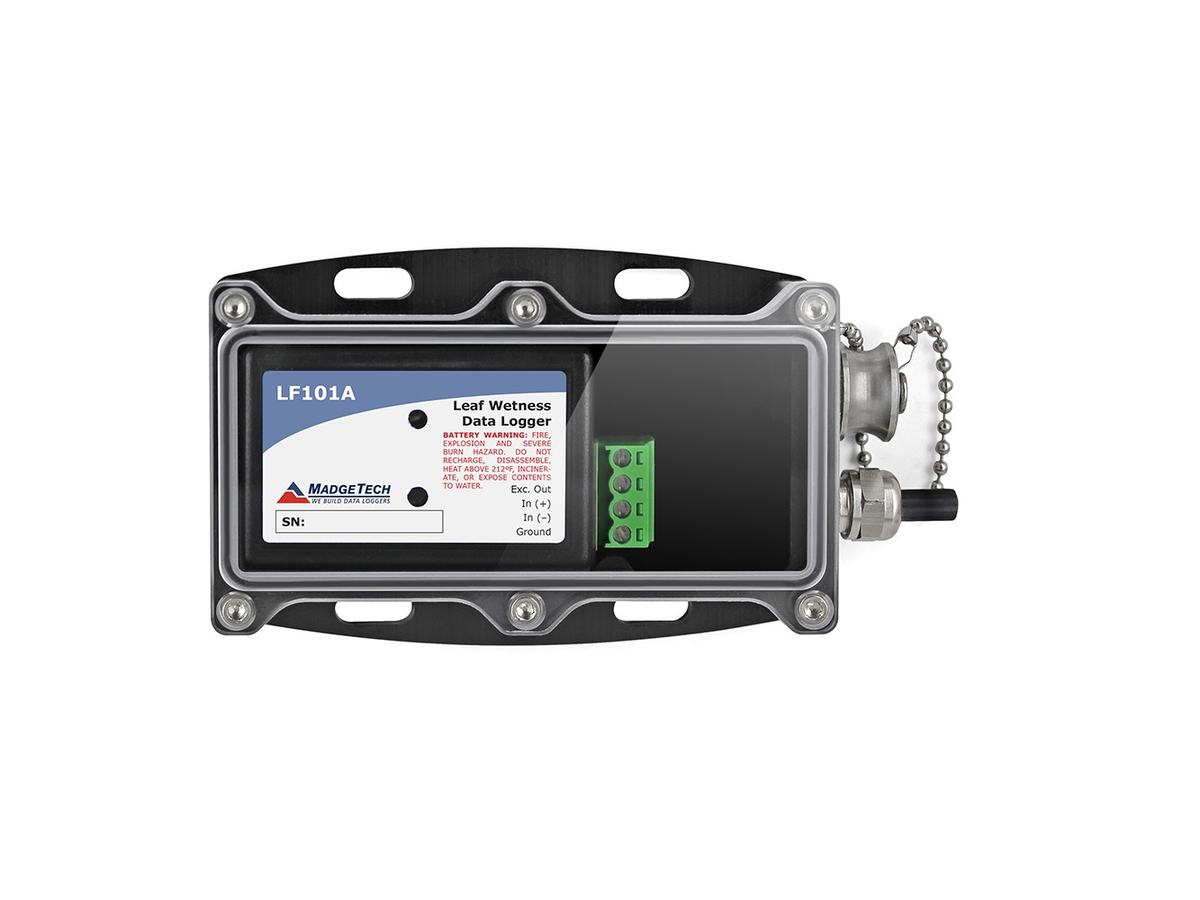

The LF101A Leaf Wetness Data Logger is a complete solution for accurately measuring and recording leaf wetness conditions. Designed to respond to environmental conditions similarly to a natural leaf, the sensor detects both the presence and amount of moisture and can also identify ice formation.
Ideal for plant disease forecasting, irrigation studies and frost cycle monitoring, the LF101A includes a data logger, weatherproof enclosure and leaf wetness sensor for a ready-to-use monitoring system. With storage for up to 1 million readings, ultrahigh-speed data download, multiple start/stop functionality, optional memory wrap and password protection, programmable alarms and a battery life indicator, the LF101A provides reliable, flexible monitoring for agricultural and environmental applications.
General
| Memory | 2,064,384 readings |
|---|---|
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 months typical at a 1 minute reading rate with a 350Ω load; 2 years typical at a 1 minute reading rate with a 1000Ω load |
| Material | ABS Plastic |
| Dimensions | Enclosure: 2.9 in x 5.8 in x 1.5 in (74 mm x 148 mm x 39 mm); Probe: 4.4 in x 2.3 in x 0.03 in (111 mm x 58 mm x 0.76 mm) |
| IP Rating | IP65 |
| Operating Environment | -10 °C to +60 °C (+14 °F to +140 °F), 0 %RH to 100 %RH non-condensing |
| Required Interface Package | IFC200 |
Voltage
| Voltage Range | Dry: 266 mV typcial; 100 % Saturated: 833 mV typical |
|---|---|
| Voltage Resolution | 50 µV |
| Voltage Calibrated Accuracy | ±0.01 % |
