Motor101A
Motor101A

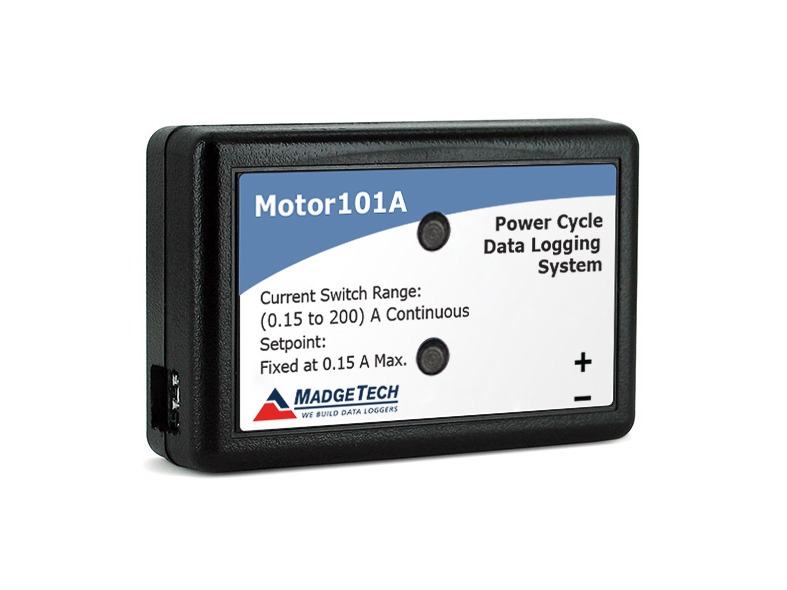

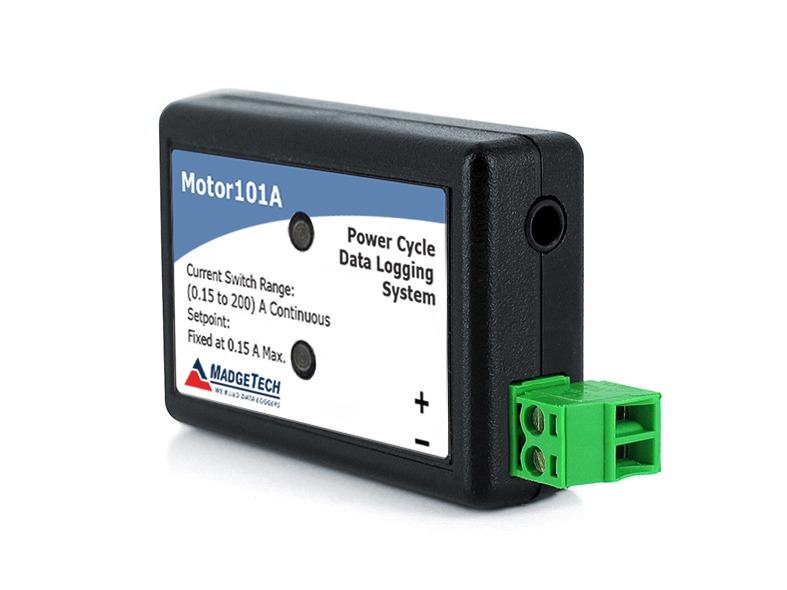

The Motor101A is a data logging system to monitor the on/off status of motors. Includes certificate of conformance.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- State101A State Data Logger
- Current Switch
- IFC200 Interface Cable
Description
The Motor101A Includes:
(1) State101A: State Data Logger
(1) Current Switch
(1) IFC200: Interface Cable
The Motor101A was designed to measure and record the on/off status changes for motors or other equipment drawing up to 200 Amps.
Just clamp the Motor101A to a wire and when the current passing through exceeds 150 mA the output changes, providing a voltage for the Motor101A to measure. This device can hold up to 465,578 readings, but memory will only be used if the status has changed.
The Motor101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 465,578 readings |
|---|---|
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical |
| Material | ABS Plastic |
| Dimensions | Data Logger: 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm); Current Switch: 2.1 in x 3.5 in x 1.0 in (54 mm x 89 mm x 16 mm) |
| Operating Environment | -15 °C to +40 °C (+5 °F to +104 °F), 10 %RH to 90 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
State
| State Resolution | 1 second (reading rate dependent) |
|---|---|
| Amperage Range | 0.15 to 200 Amps |
| Trip Point | 0.15 A (150 mA) fixed (200 mA AC for 50 Hz operation) |
| Status Output | N.O.1.0 A at 30 VAC/DC |
| Housing | Split Core |
