PRHTemp101A
PRHTemp101A

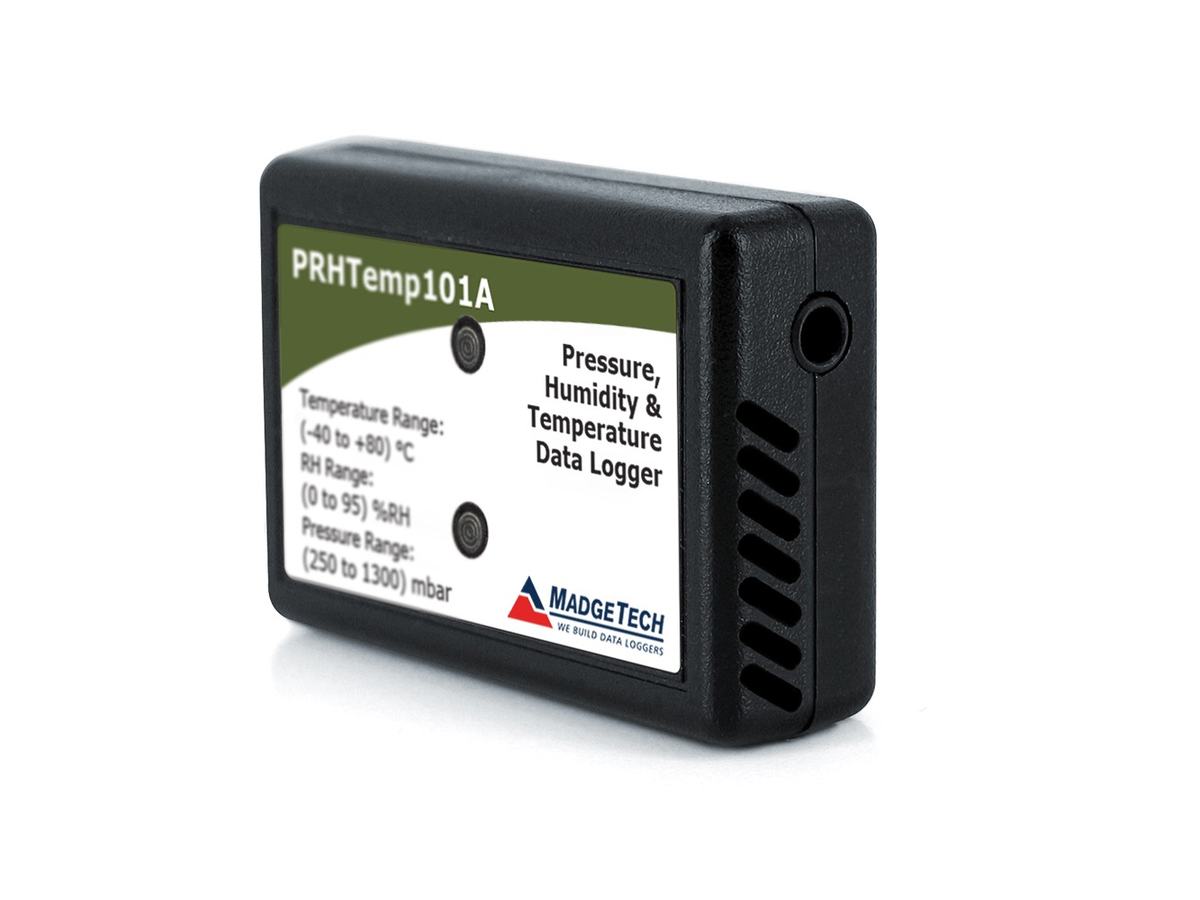

The PRHTemp101A is a compact, pressure, humidity and temperature data logger. Includes standard calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- Compact Size
- Configurable Alarms
- Memory Capacity of 500,000+ Readings
Description
The PRHTemp101A is a pressure, humidity, and temperature data logger. Its compact design and 10-year battery life make it ideal for long-term deployment.
The PRHTemp101A has multiple start/stop functions and can even be programmed to start recording 18 months in advance. It also features user-specified high/low alarm limits (pressure channel only) and the ability to store up to 523,776 readings.
The PRHTemp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 523,776 readings |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Battery Life | 10 years typical (at a 15 minute reading rate) |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA |
| Required Interface Package | IFC200 |
| Approvals | CE |
Temperature
| Internal Channel Temperature Sensor | Resistance Temperature Detector (RTD) |
|---|---|
| Internal Channel Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) from 0 °C to +55 °C (+32 °F to +131 °F); ±1.0 °C (±1.8 °F) from -40 °C to 0 °C (-40 °F to +32 °F); and +55.01 °C to +80 °C (+131.01 °F to +176 °F) |
Pressure
| Pressure Sensor | Piezoresistive |
|---|---|
| Pressure Range | 250 mbar to 1300 mbar |
| Pressure Resolution | 0.02 mbar |
| Pressure Calibrated Accuracy | 10 mbar (+5 °C to +55 °C / +41 °F to +131 °F) |
