RFPRHTemp2000A

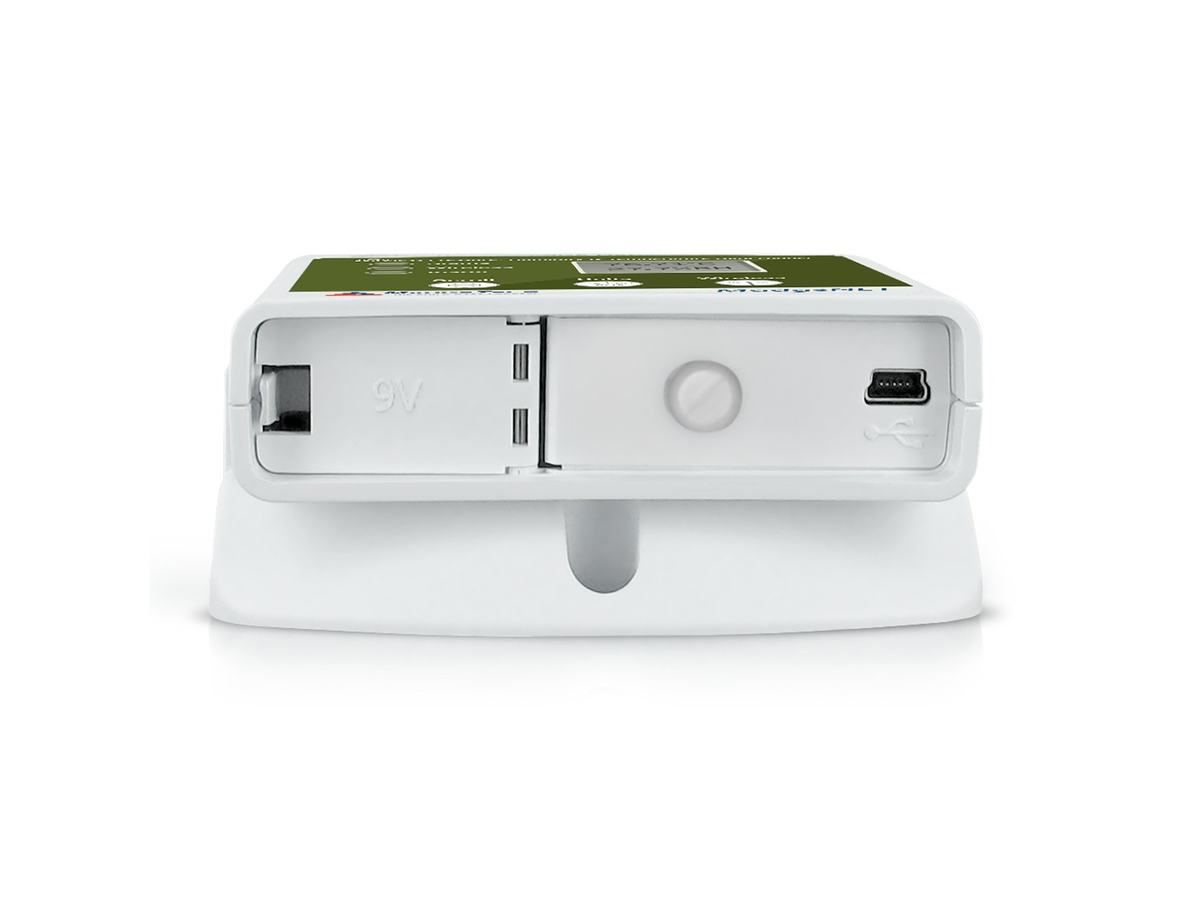

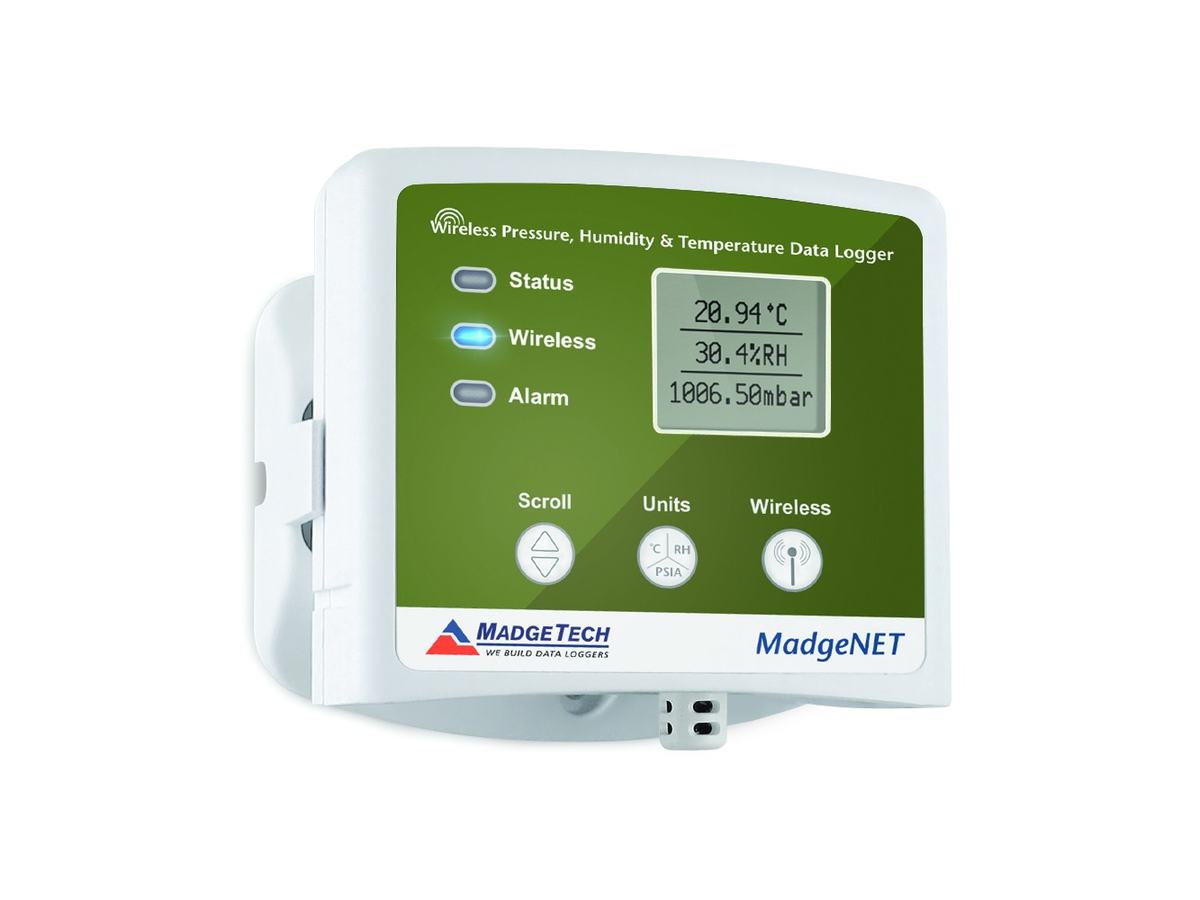

The RFPRHTemp2000A is a wireless pressure, humidity and temperature data logger. Includes standard calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
The RFPRHTemp2000A is a wireless pressure, humidity and temperature data logger. It’s the all-in-one solution for monitoring and maintaining critical conditions.
This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPRHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
The RFPRHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFPRHTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
Note: RFC wireless interface required.
| Memory | 10,752 readings (all channels enabled) |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Functionality | Green LED blinks every 5 seconds to indicate unit is logging; Blue LED blinks every 15 seconds to indicate unit is in wireless mode Red LED blinks every 1 second to indicate alarm condition |
| Battery Life | 5 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F),; 0 %RH to 95 %RH non-condensing,; 0.002 PSIA to 100 PSIA |

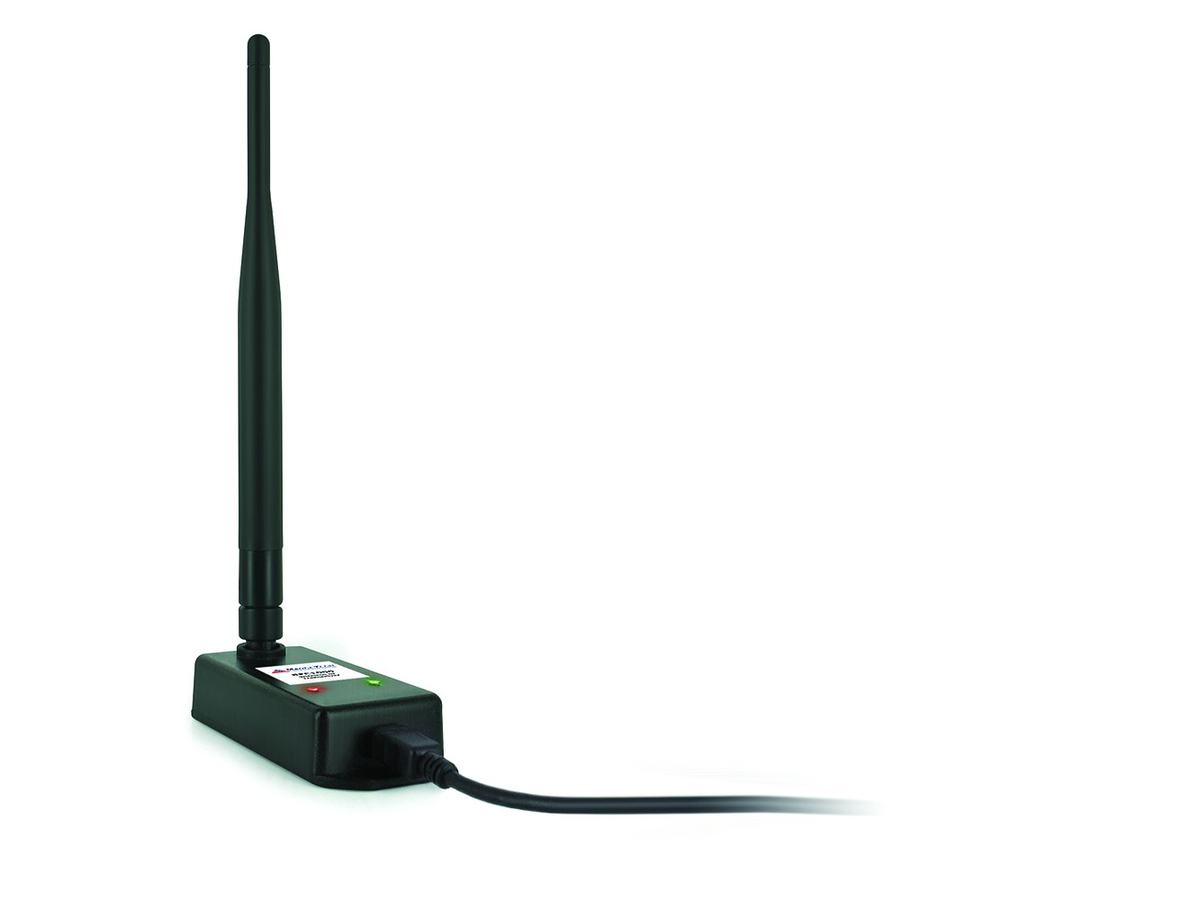

| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Internal Channel Temperature Sensor | Resistance Temperature Detector (RTD) |
|---|---|
| Internal Channel Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (+5 °C to +55 °C) |
| Pressure Sensor | Silicon |
|---|---|
| Pressure Range | 250 mbar to 1300 mbar |
| Pressure Resolution | 0.02 mbar |
| Pressure Calibrated Accuracy | 10 mbar (+5 °C to +55 °C) |
| RF Baud Rate | 250,000 |
|---|---|
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
Escolha modelo, sondas e acessórios. As combinações incompatíveis são bloqueadas na hora; as demais regras são verificadas ao adicionar o equipamento à cotação.
Carregando as opções…
É possível colar um código e a configuração se monta sozinha.
São cotados à parte: não é preciso configurar o equipamento.

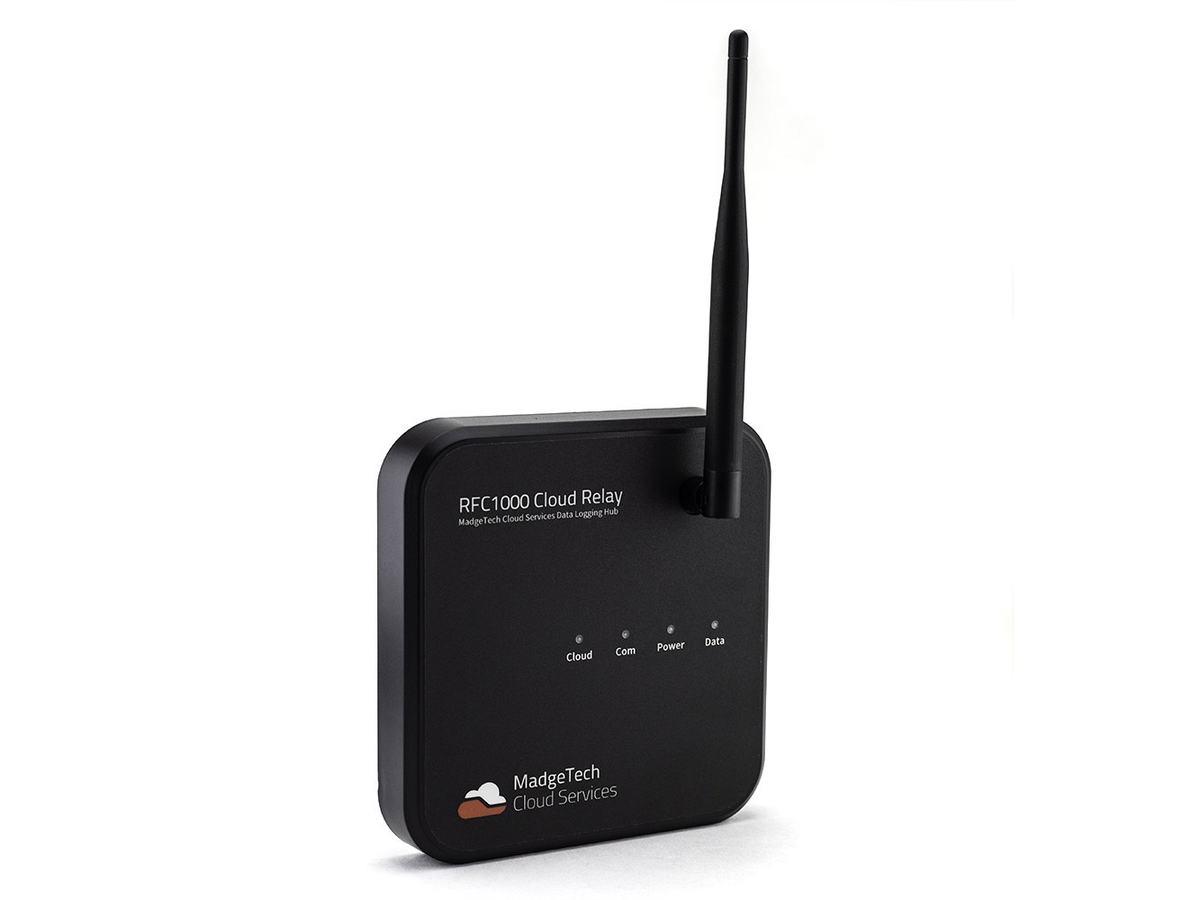

MadgeTech Cloud Services data logging hub for use with the RFOT and RF2000A series.

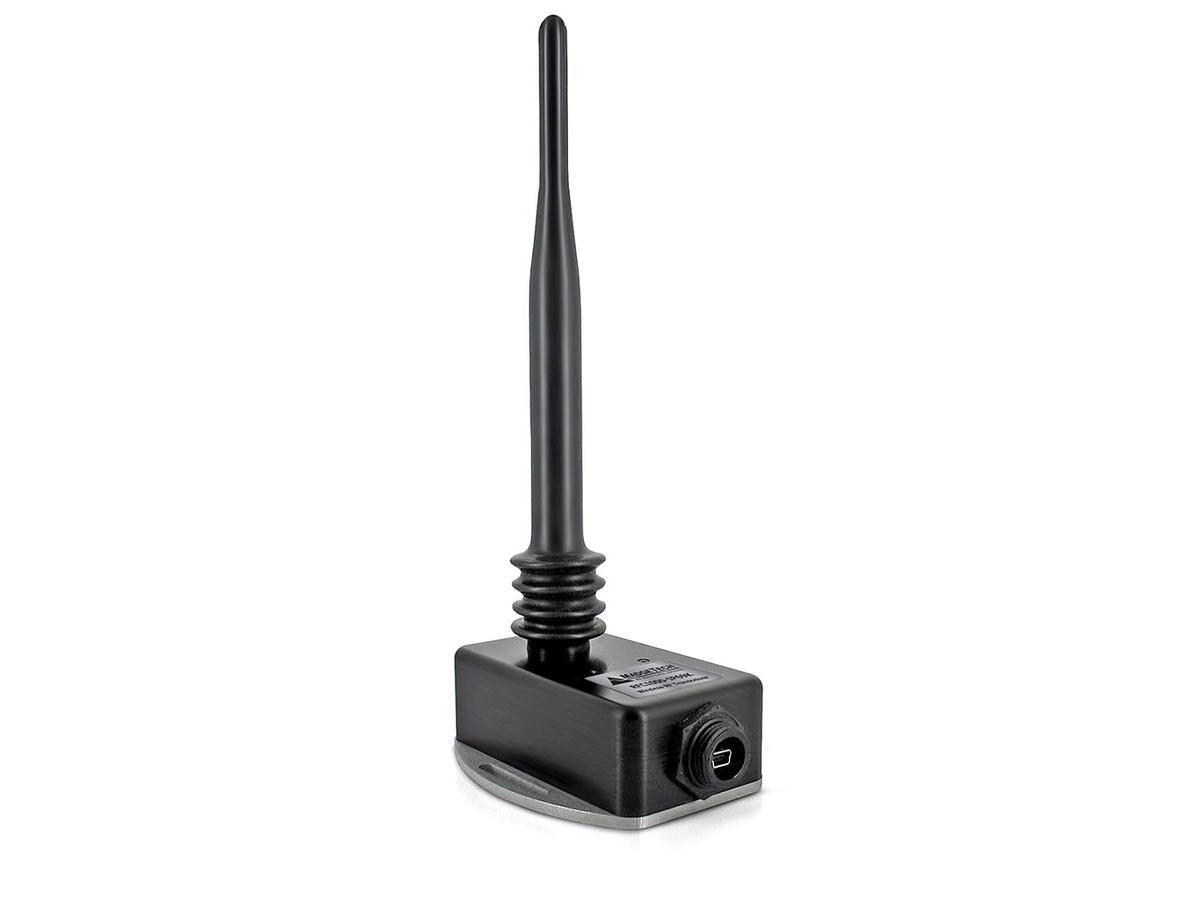

Splash proof wireless transceiver for RFOT and RF2000A series.
