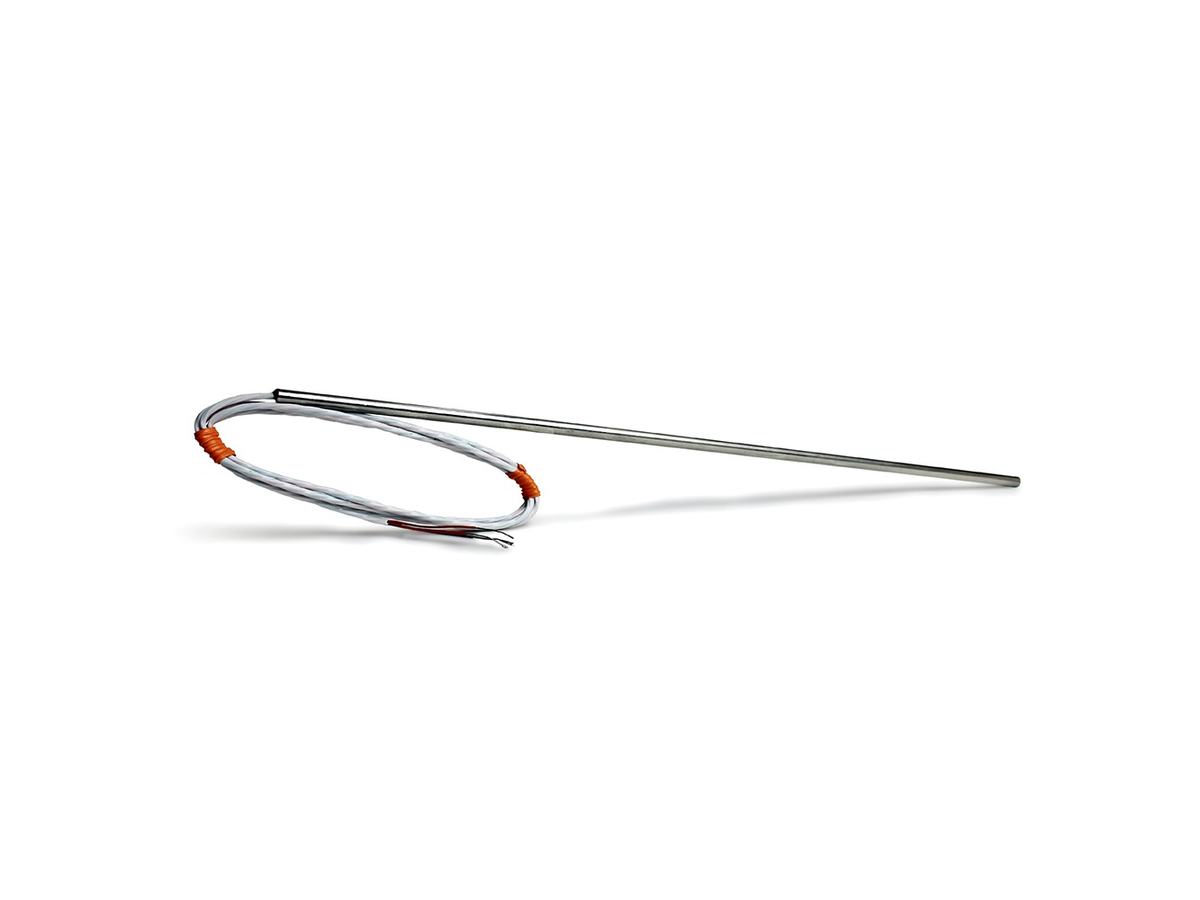

RTD Probe (72 inch)
4 Wire 72″ RTD Probe with 6″ Sheath (RTD Probe (72 inch))
4 wire, 72″ RTD Probe with a 6″ Sheath.
Description
Precision 100 Ω, 4 wire, 72″ RTD probe with a 6″ sheath.
General
| Probe Type | RTD |
|---|---|
| Temperature Range | -200 °C to +600 °C (-328 °F to +1112 °F) |
| Accuracy | ±0.15 °C at 0 °C |
| Sheath Material | Stainless Steel Probe |
| Sheath Length | 6 inches |
| Sheath Temperature Range | +600 °C (+1112 °F) |
| 2, 3 or 4 Wire RTD | 4 Wire RTD |
| Lead Wire Material | AWG stranded nickel-plated copper, PFA insulated, PFA jacketed cable. |
| Lead Wire Temperature Range | +260 °C (+500 °F) |
| Cable Length | 72 inches |
