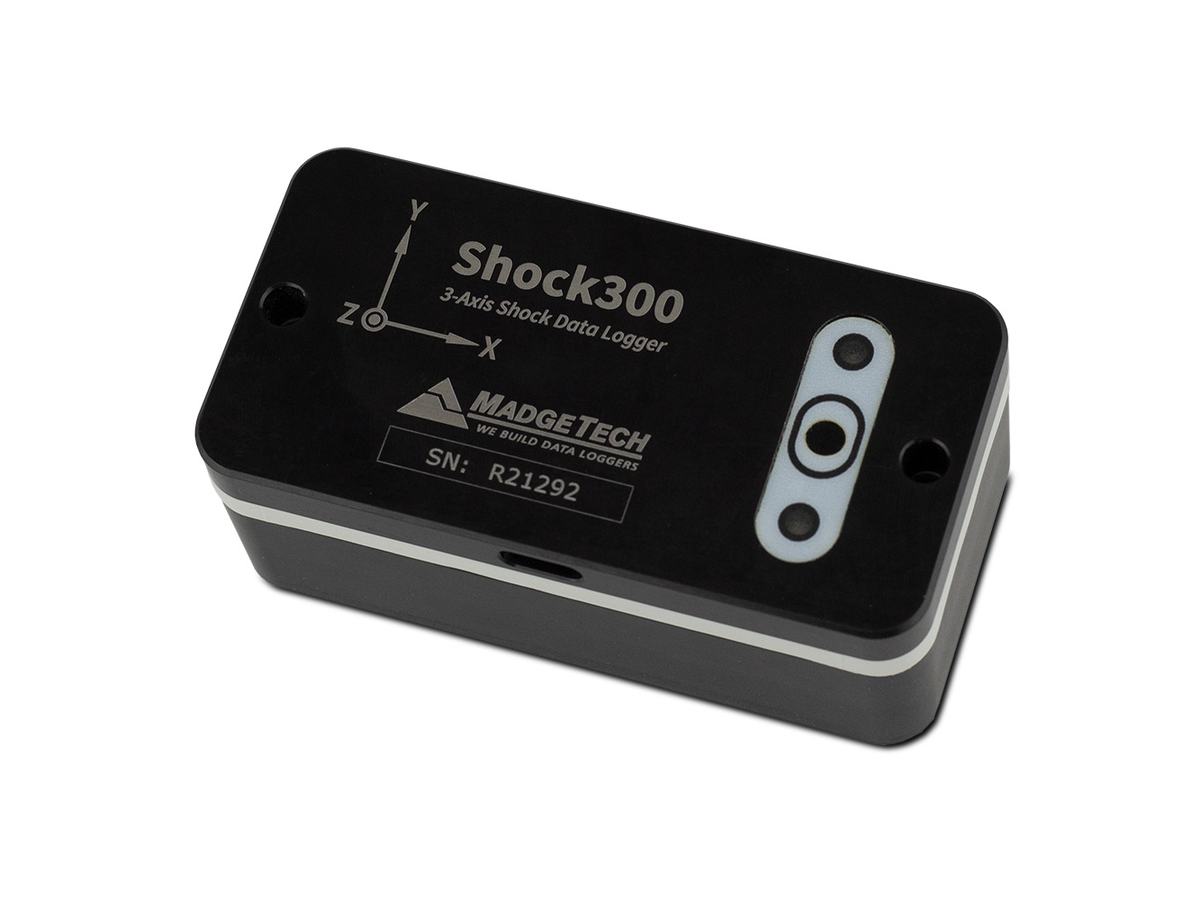

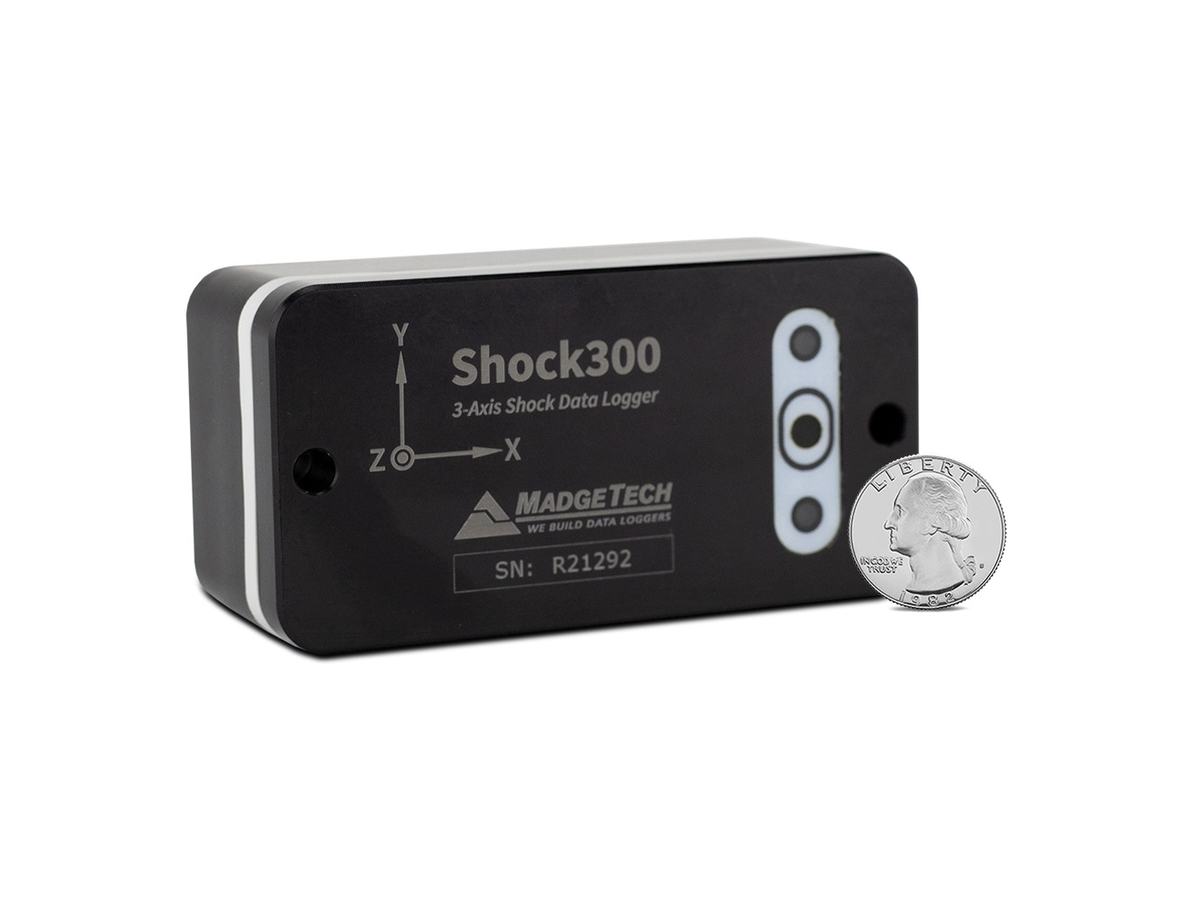

Shock300
Shock300
The Shock300 is a compact tri-axial shock data logger with three built-in acceleration ranges. Includes declaration of conformance.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- Three programmable acceleration ranges to choose from: ±15 g, ±100 g and ±300 g
- >4M readings of non-volatile memory
- 1kHz sampling rate
- Rechargeable Battery with three month battery life on single charge
- Direct USB interface connection
Description
The Shock300 is a tri-axial shock data logger specifically designed for documenting dynamic environments.
This device provides not one, but three acceleration ranges to choose from: ±15 g, ±100 g and ±300 g. The ranges are implemented on separate low-g and high-g accelerometers for excellent resolution and accuracy. Compact and lightweight, the Shock300 can measure and record up to 4,192,254 readings and is equipped with a rechargeable battery for convenience.
The Shock300 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The Shock300 replaces the Shock101.
General
| Memory | 4,192,254 readings; (1,397,418 per channel, all channels in use) |
|---|---|
| Battery Life | 20-29 days dependent on user settings (reading rate,; trigger level, peak or instantaneous) |
| Dimensions | 3.4 in x 1.7 in x 1.3 in; (86 mm x 43 mm x 33 mm) |
| Operating Environment | -20 ºC to +60 ºC,; 0 %RH to 95 %RH non-condensing |
| Required Interface Package | USB-C cable required (included); 1MBaud |
| Approvals | CE compliant; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU |
Shock
| Accelerometer Type | MEMS Semiconductor |
|---|---|
| Acceleration Range(g): | ±15 g / ±100 g / ±300 g |
| Acceleration Resolution(g): | 0.02 g/0.05 g/0.2 g |
| Calibrated Accuracy (g) | ±0.3 g/±2.0 g/±6.0 g |
| Sampling Rate | 1000 Hz |
| Reading Rate | 1024 Hz to 5 minutes for shock |
