ThermoVault
ThermoVault
The ThermoVault is an oven temperature profiling system. Includes standard calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- TC101A Thermocouple-Based Temperature Data Logger
- Thermal Insulated Enclosure
- Type K Thermocouple
Description
The ThermoVault Includes:
(1) TC101A: Thermocouple-Based Temperature Data Logger
(1) Thermally Insulated Enclosure
(1) Type K Thermocouple

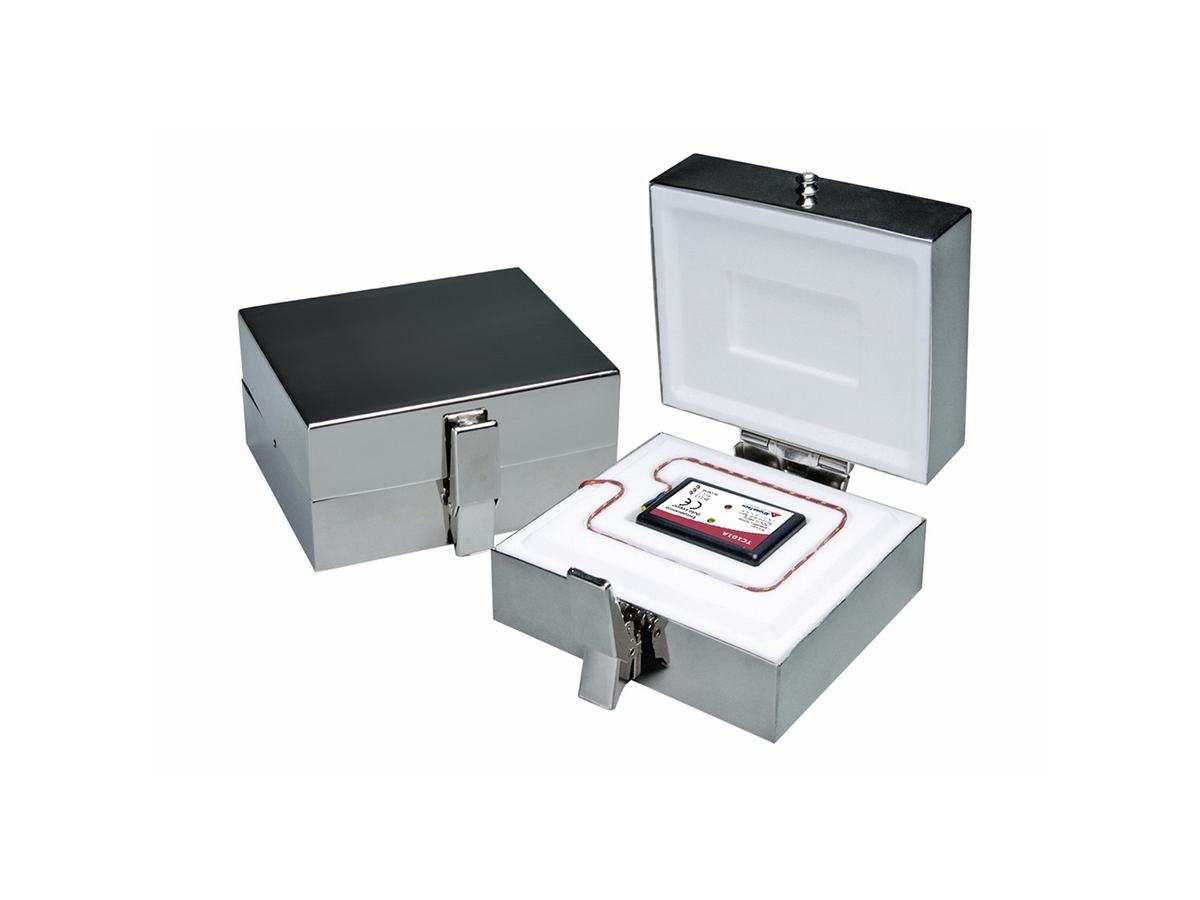

The ThermoVault is a thermal insulated, thermocouple-based temperature data logging system for oven profiling. This device can withstand an oven temperature of up to 350 °C (662 °F) for up to 30 minutes when properly sealed. Its stainless steel enclosure and external thermocouple probes provide accurate temperature measurements, with fast response times.
The ThermoVault is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 500,000 readings; software configurable memory wrap; 250,000 readings in multiple start/stop mode |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 1 Internal & 1 Remote |
| LED Indicators | Red & Green |
| Battery Life | 10 Years typical at a 15 minute reading rate |
| Material | 304 stainless steel w/ PTFE insulation |
| Dimensions | 5.1 in x 4.5 in x 2.5 in (129 mm x 113 mm x 64 mm) |
| Operating Environment | See specifications sheet, 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
Temperature
| Internal Channel Temperature Sensor | Semiconductor |
|---|---|
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.25 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
