TR43A
2-Channel Temperature and Humidity Logger with External Sensor
Solicitar cotaçãoBaixar ficha técnica
The TR4A series enables data collection and management using dedicated mobile device applications.
Data recorded by the logger is sent to the mobile device via Bluetooth Low Energy, which can then be transferred to our free cloud-based "T&D WebStorage Service" using WiFi or cellular network.
The all-in-one sensor for TR43A has a temperature measurement range of 0-55°C and can measure humidity from 10 to 95％RH. The body itself has an IP64 rating* and can be used in environments of -40 to 80°C.
*Note that the temperature-humidity sensor is not water resistant.
| Channels | Temperature 1ch, Humidity 1ch |
|---|---|
| Range | Temperature: 0 to 55°C Humidity: 10 to 95%RH |
| Comm Interfaces | Bluetooth 4.2 (Bluetooth Low Energy) |
With the compact rugged design and Bluetooth capability, the TR43A is easy to deploy and operate, suitable for tracking temperature and humidity in transport, in storage, in limited-access areas, as well as in residential and office buildings.

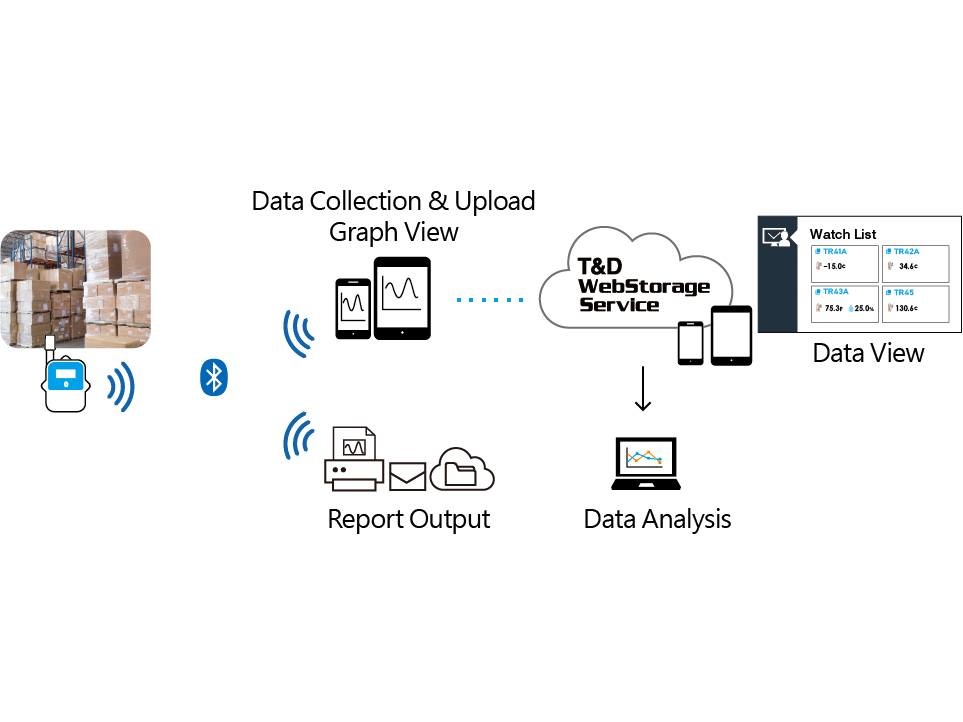

We offer free mobile apps that let you access temperature/humidity data anytime from your smartphone or tablet over Bluetooth.
"T&D Thermo" facilitates logger configuration and data collection using a Bluetooth connection. The data retrieved by the mobile device can be viewed in a graph, saved, output as a PDF report, and uploaded to the cloud-based T&D WebStorage Service.
"TR4 Report" is a specialized mobile app for generating PDF reports for a specified time period. It allows you to create, print and share data reports in simple steps.
Escolha modelo, sondas e acessórios. As combinações incompatíveis são bloqueadas na hora; as demais regras são verificadas ao adicionar o equipamento à cotação.
Carregando as opções…
É possível colar um código e a configuração se monta sozinha.
São cotados à parte: não é preciso configurar o equipamento.
Splash-Proof Compact Wireless Temperature Logger; Select from a wide range of optional sensors to meet your measurement needs.
Splash-Proof Compact Wireless Temperature Logger with Extended Battery Life; Select from a wide range of optional sensors to meet your measurement…
Ultimate IoT temperature and humidity logger connectible via wireless LAN, Bluetooth and USB!
This sensor is supplied with the RTR503B/503B, but also compatible with the TR43A.
This attachment is for use with the TR41A/42A/43A(*), TR45, and RTR500B series L models.
This maintenance set is for use with the TR41A/42A/43A, RTR500B series, and TR-5i series data loggers.
For use with the RTR501B/502B/503B/505B/507B and TR41A/42A/43A.
