TR45
Temperature Logger with Measurement Range from -199 to 1760°C
Solicitar cotaçãoBaixar ficha técnica
The TR4A series enables data collection and management using dedicated mobile device applications.

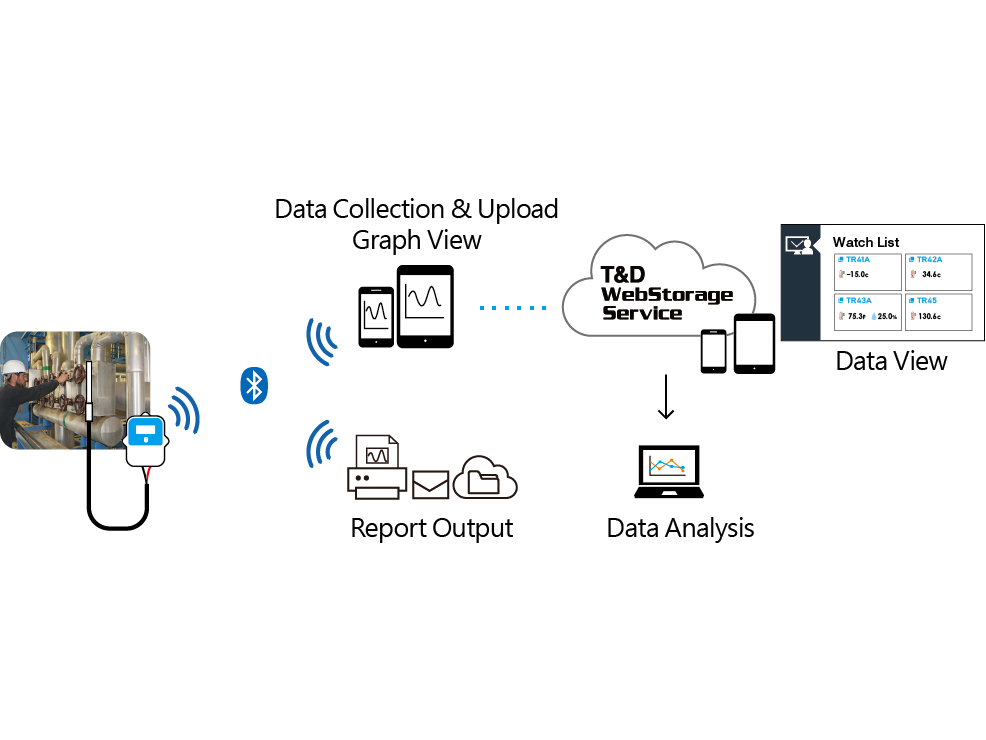

Data recorded by the logger is sent to the mobile device via Bluetooth Low Energy, which can then be transferred to our free cloud-based "T&D WebStorage Service" using WiFi or cellular network.
The TR45 model is a versatile one channel temperature logger that can be connected to a Pt100 sensor or to a variety of thermocouple types (K, J, T, S, R). It is possible to measure and record temperature in a wide range from -199 to 1760°C.
| Channels | Temperature 1ch Thermocouple: Type K, J, T, S, R or Pt100 / Pt1000 (sensor not provided / Pt sensor available as option) |
|---|---|
| Range | TC: -199 to 1760 °C Pt: -199 to 600 °C |
| Comm Interfaces | Bluetooth 4.1 (Bluetooth Low Energy) |
The TR45 coupled with PT100/Thermocouple sensors is best suited to measure ultra high temperatures such as in a furnace or in deep freezers where temperatures reach ultra low levels.
We offer free mobile apps that let you access temperature data anytime from your smartphone or tablet over Bluetooth.
"T&D Thermo" facilitates logger configuration and data collection using a Bluetooth connection. The data retrieved by the mobile device can be viewed in a graph, saved, output as a PDF report, and uploaded to the cloud-based T&D WebStorage Service.
"TR4 Report" is a specialized mobile app for generating PDF reports for a specified time period. It allows you to create, print and share data reports in simple steps.
In addition to T&D Thermo and TR4 Report, the TR45 can still be used with the ThermoREC and ThermoStorage Apps.
Escolha modelo, sondas e acessórios. As combinações incompatíveis são bloqueadas na hora; as demais regras são verificadas ao adicionar o equipamento à cotação.
Carregando as opções…
É possível colar um código e a configuração se monta sozinha.
São cotados à parte: não é preciso configurar o equipamento.
Thermocouple temperature loggers with 4 channels on a single unit.Connecting loggers makes it possible to simultaneously measure and record up to 16…
Ultimate 2-channel thermocouple logger connectible via wireless LAN, Bluetooth and USB. Ideal for ultra low temperature vaccine monitoring!
Ultimate IoT temperature and humidity logger connectible via wireless LAN, Bluetooth and USB!
High precision IoT temperature and humidity logger connectible via wireless LAN, Bluetooth and USB!

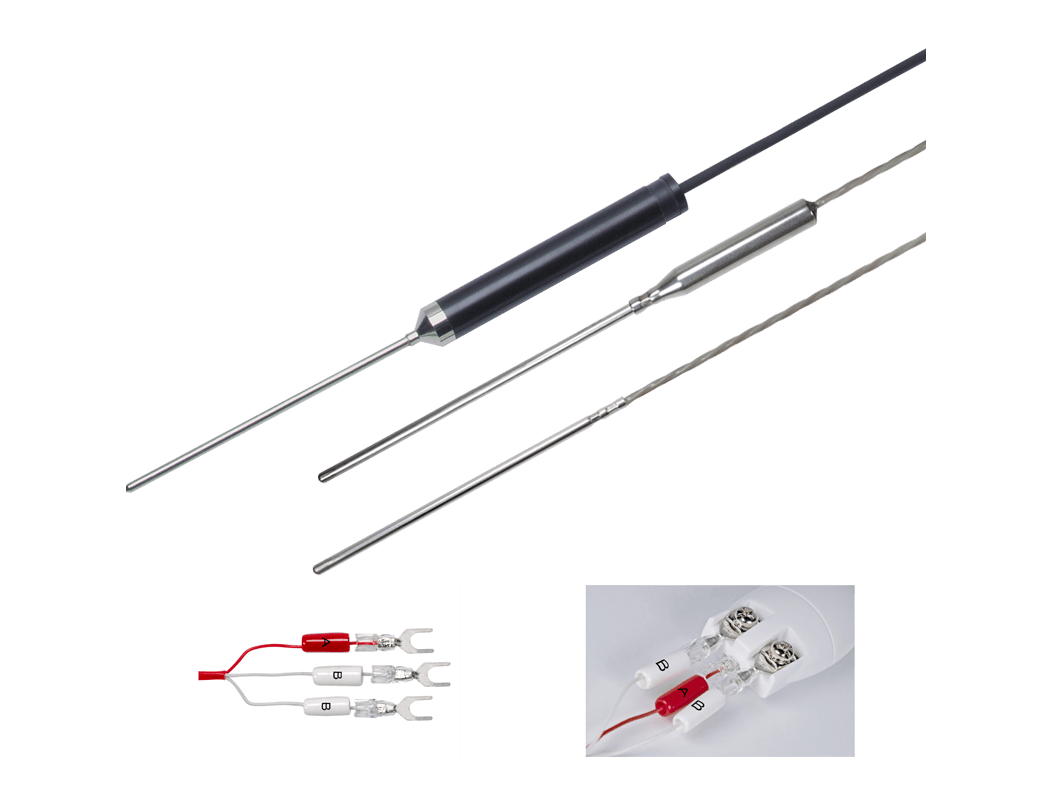

This is a Pt100 temperature sensor for the TR45, TR-55i-Pt, and RTR505B/505BL.
