TR71A2
T&D TR71A2
Ultimate 2-channel IoT temperature loggers connectible via wireless LAN, Bluetooth and USB. Ideal for monitoring temperature of vaccines.
Solicitar cotaçãoBaixar ficha técnica
Overview
The TR71A2 with two sensor connections can measure temperatures from -60 up to 155℃.
The wide range of optional sensors provides increased measurement flexibility.
The LCD screen allows the simultaneous display of either the current values of two channels, the highest and lowest values of channel 1, or the highest and lowest values of channel 2.
The ALM icon on the LCD alerts the user of the occurrence of an alarm.
Use the wireless LAN feature (compatible with the enterprise communication) to auto-upload data to the cloud for anytime anywhere access and receive warning notifications. By using Bluetooth or USB, you can configure device settings, generate reports, download data, and view the uploaded data.
A USB cable (option US-15C) is required to connect the device to a PC.
Note: The TR7A2 series is the successor model of our TR7A series.
Main Specifications
| Channels | Temperature 2ch |
|---|---|
| Range | -40 to 110℃ |
| Comm Interfaces | Wireless LAN, USB, Bluetooth 4.2 (Bluetooth Low Energy) |
| Waterproof Capacity | None |
TR71A2 Operational Differences by Measurement Mode
| Max/Min Values | Normal Mode: Max/Min temperature reading since the start of recording or reset (via buttons or software/app); Vaccine Mode: Max/Min recorded value since the start of recording or reset (via buttons or software/app) |
|---|---|
| Warning Judgment Time | Normal Mode: 30 sec to 60 min (9 selections) A warning will be issued when a measurement exceeds the set threshold value or a sensor error occurs for longer than the set judgment time.; Vaccine Mode: 0 sec. If a recorded value exceeds the set threshold value or if a sensor error occurs, a warning will be issued. |
| Warning Display [ALM] Icon | Normal Mode: Warning alarms for exceeding a set upper and lower limit and for sensor errors will both disappear when the warning condition is resolved.; Vaccine Mode: Warning alarms for exceeding a set upper and lower limit will not disappear even after a value returns to within the threshold range. Warning alarms for sensor errors will disappear upon return to normal. |
Special Features

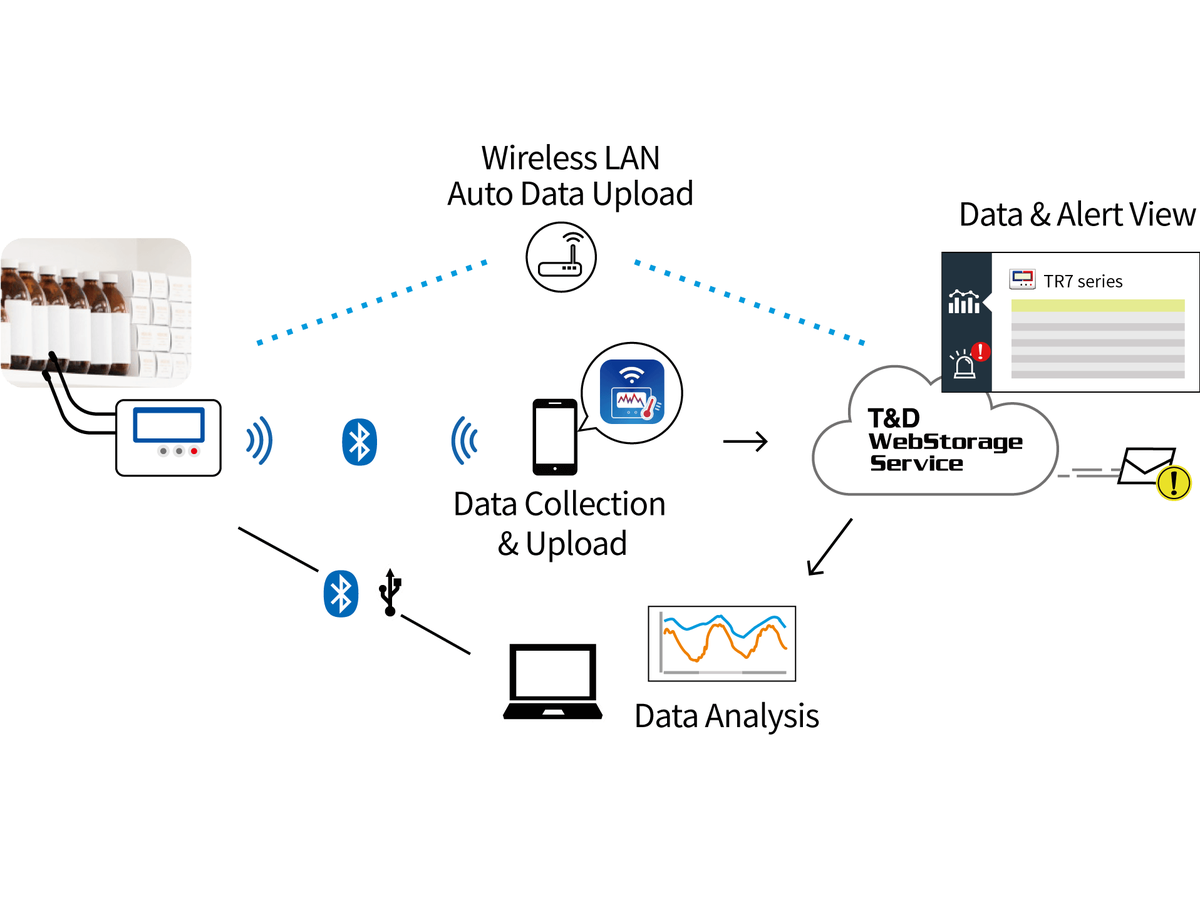

The TR71A2 uses a wireless LAN access point to auto-upload recorded data and warning notifications to our free-of-charge cloud-based “T&D WebStorage Service”. You can download data and configure device settings using our dedicated app "TR7 for Windows (for Windows)" or "T&D Thermo (for smartphone / tablet)". By using our Windows software “T&D Graph”, you can easily view and analyze data from a PC.
