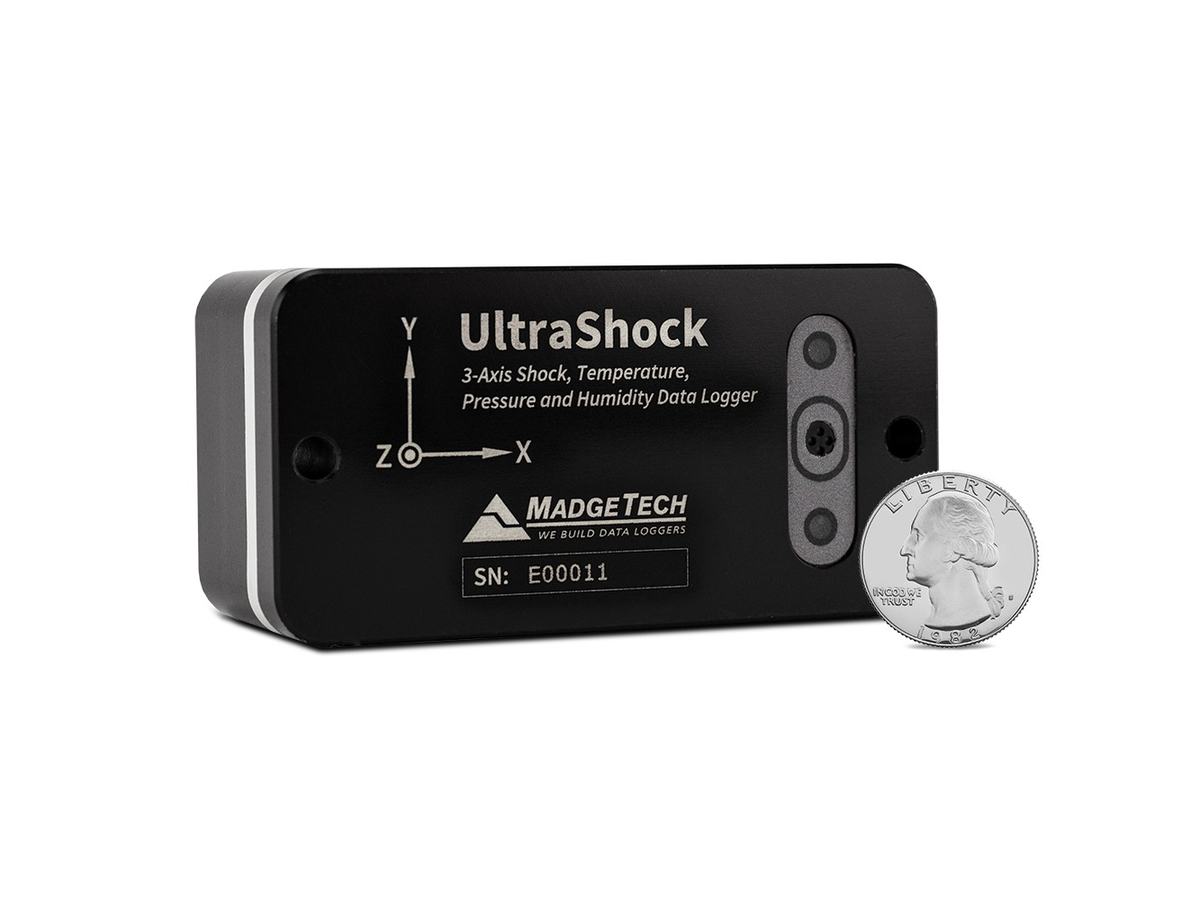

UltraShock
UltraShock
The UltraShock is a tri-axial, stand-alone, compact shock data logger with three built-in acceleration ranges. Includes standard calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
Key Features
- Three built-in acceleration ranges: ±15 g, ±100 g and ±300 g
- Records shock, temperature, humidity and pressure
- 3,593,358 readings of non-volatile memory
- 1kHz sampling rate
- Rechargeable battery with three month battery life
- Direct USB-C interface connection
Description
The new UltraShock contains powerful improvements and an all-in-one functionality, allowing it to replace all current shock models and their capabilities. New refinements also include a smaller, lighter design and LED status indicators.
Additional features include a significantly improved battery life and the use of a USB-C cable, making it easily rechargeable. Each UltraShock purchase contains an AC adapter and USB cable, eliminating the need for an additional interface cable.
The UltraShock is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The UltraShock replaces the UltraShock Legacy and the TSR101.
General
| Memory | 3,593,358 readings; (598,893 per channel, all channels in use) |
|---|---|
| Reading Rate | 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every; 2 seconds at intervals shorter than; 2 seconds. Otherwise, sampled at the reading rate. |
| Battery Life | 20-29 days dependent on user settings (reading rate,; trigger level, peak or instantaneous) |
| Material | Anodized aluminum |
| Dimensions | 3.4 in x 1.7 in x 1.3 in; (86 mm x 43 mm x 33 mm) |
| Operating Environment | -20 ºC to +60 ºC,; 0 %RH to 95 %RH non-condensing |
| Required Interface Package | USB-C cable required (included); 1MBaud |
| Approvals | CE compliant; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU; IP Rating 64 |
Shock
| Accelerometer Type | MEMS Semiconductor |
|---|---|
| Acceleration Range (g) | ±15 g/±100 g/±300 g |
| Acceleration Resolution (g) | 0.02 g/0.05 g/0.2 g |
| Calibrated Accuracy (g) | ±0.3 g/±2.0 g/±6.0 g |
| Sampling Rate | 1000 Hz |
| Accelerometer Freq. Resp. | >1000 Hz (15 g); >500 Hz (100 g, 300 g) |
| Reading Rate | 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every; 2 seconds at intervals shorter than; 2 seconds. Otherwise, sampled at the reading rate. |
