VTMS-GB-250
The VTMS is a wireless vaccine temperature monitoring system, recording temperatures as low as -100 °C (-148 °F). Includes ISO17025 accredited calibration certificate.
Solicitar cotaçãoBaixar ficha técnica
The VTMS Includes:
(1) RFTCTemp2000A: Wireless Thermocouple Temperature Data Logger
(1) Type K Thermocouple
(1) Glycol Bottle (optional)
(1) Power Supply

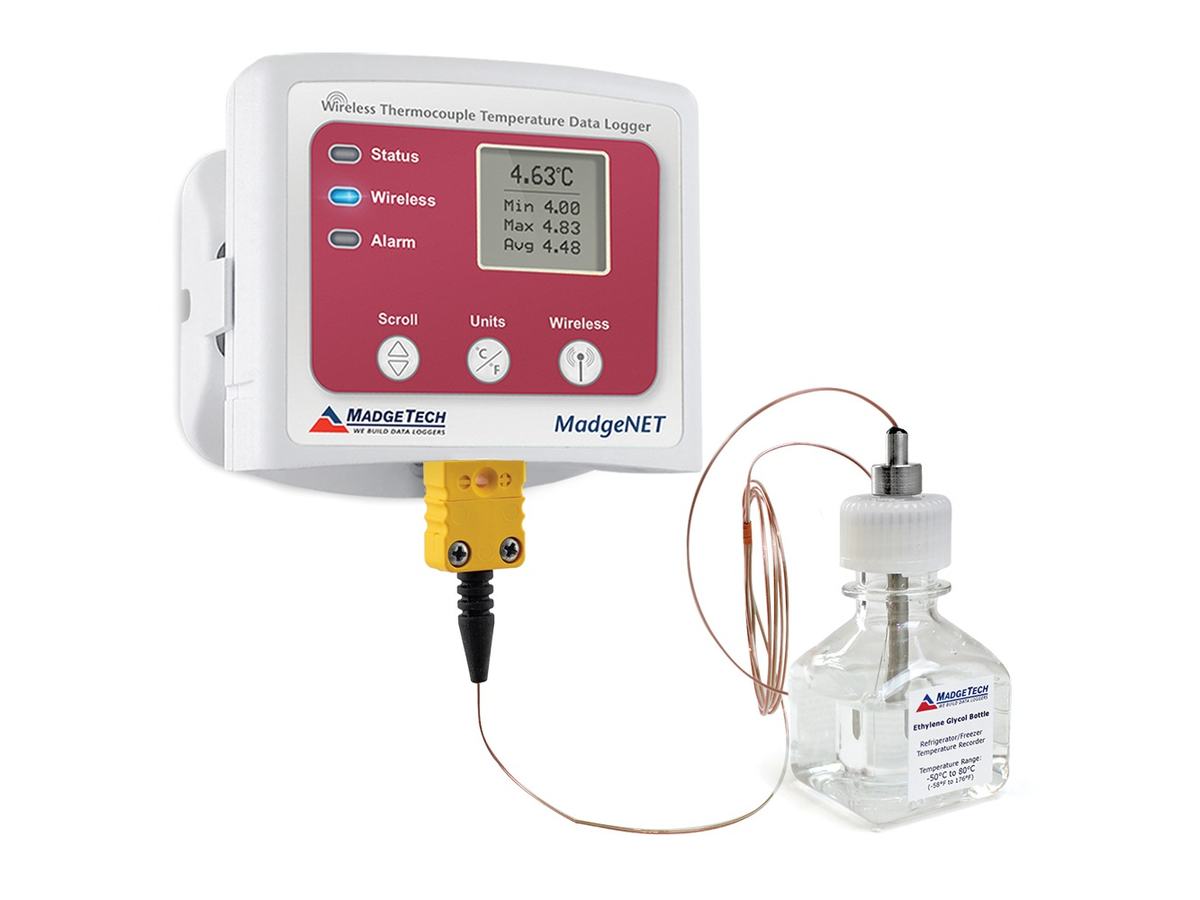

The VTMS is a wireless temperature data logging system specifically designed to continuously monitor temperature-sensitive vaccines/pharmaceuticals in refrigerators, freezers and coolers. Without the optional glycol bottle, the VTMS can measure and record temperatures as low as -100 °C (-148 °F).
This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the VTMS will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action. For refrigeration storage, the RFTCTemp2000A connects to a glycol bottle, providing temperature buffered readings.
The VTMS is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The VTMS is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
Note: RFC wireless interface required.
| Memory | 16,128 readings (all channels enabled) |
|---|---|
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| Cold Junction Compensation | Automatic based on internal channel |
| Battery Life | 3 years typical at 1 minute reading rate |
| Material | ABS Plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only |
| Weight | 1.1250 LBS |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 (wireless); USB to Mini USB Cable |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Internal Channel Temperature Sensor | Semiconductor |
|---|---|
| Internal Channel Temperature Range | -20 °C to 60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Type K Thermocouple (Included) |
| Remote Channel (Thermocouple) Temperature Range | -100 °C to +80 °C (-148 °F to +176 °F) |
| Remote Channel (Glycol Bottle) Temperature Range | -50 °C to +80 °C (-58 °F to +176 °F) |
| Remote Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Remote Channel Temperature Calibrated Accuracy | ±0.5 °C |
Escolha modelo, sondas e acessórios. As combinações incompatíveis são bloqueadas na hora; as demais regras são verificadas ao adicionar o equipamento à cotação.
Carregando as opções…
É possível colar um código e a configuração se monta sozinha.
São cotados à parte: não é preciso configurar o equipamento.
MadgeTech Cloud Services data logging hub for use with the RFOT and RF2000A series.
Splash proof wireless transceiver for RFOT and RF2000A series.
Thermocouple Probe Assembly.
36 in. Type K Thermocouple with Stainless Steel Sheath.
Thermocouple Probe Assembly.
Ethylene Glycol Bottles, available in 30 ml, 60 ml and 250 ml.
Thermocouple Probe Assembly.
