E2218

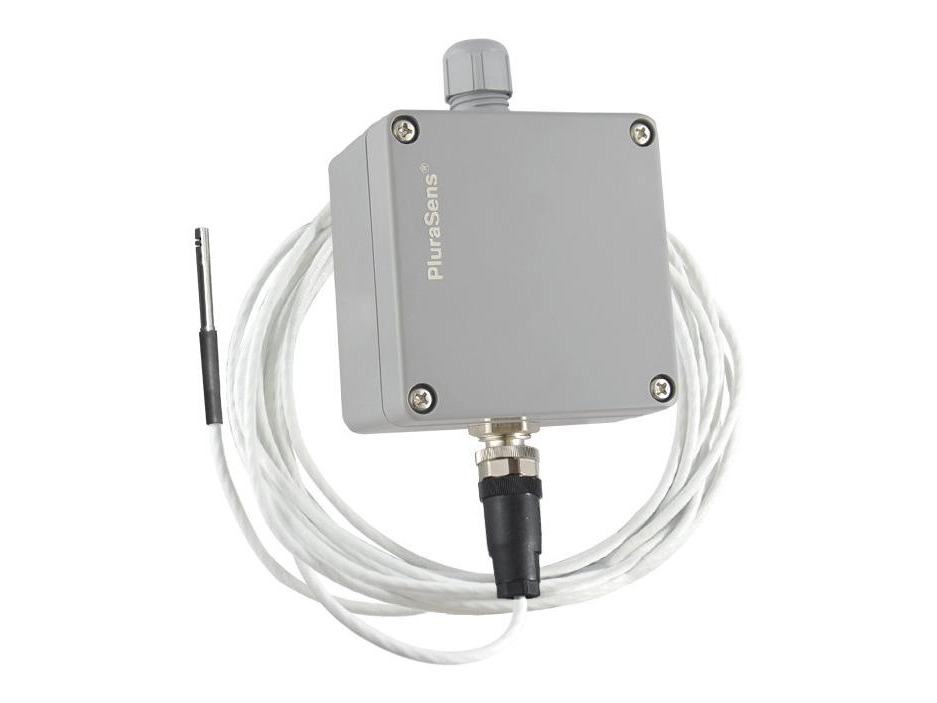

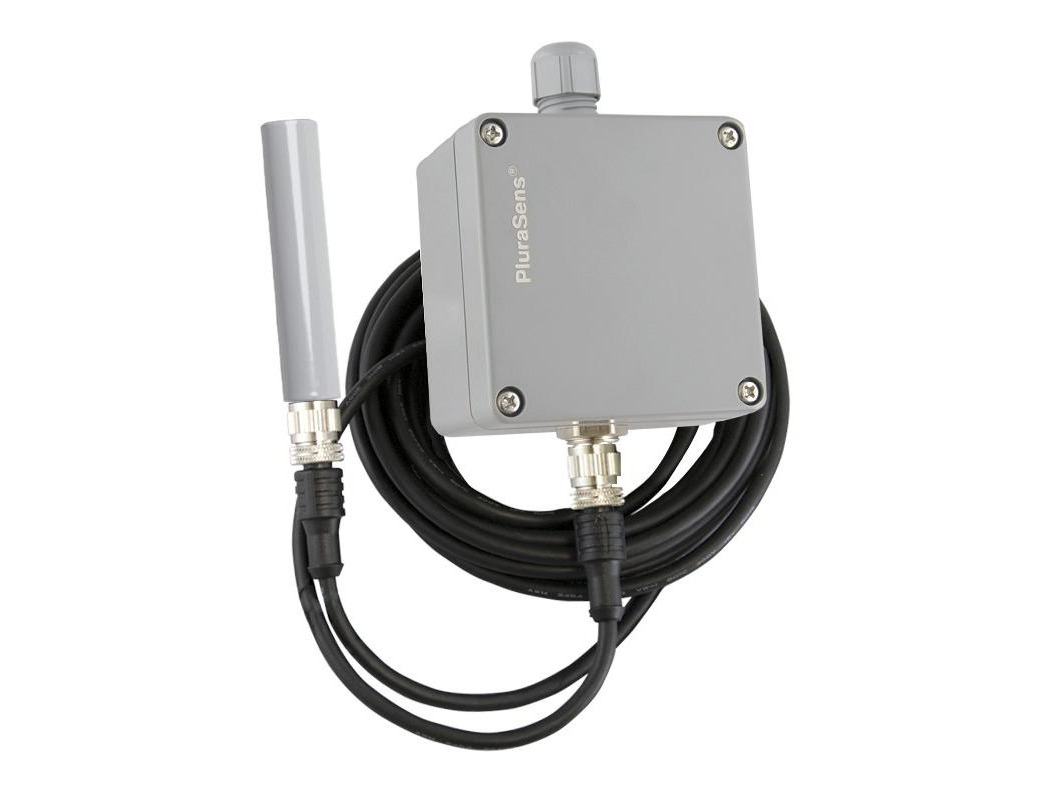

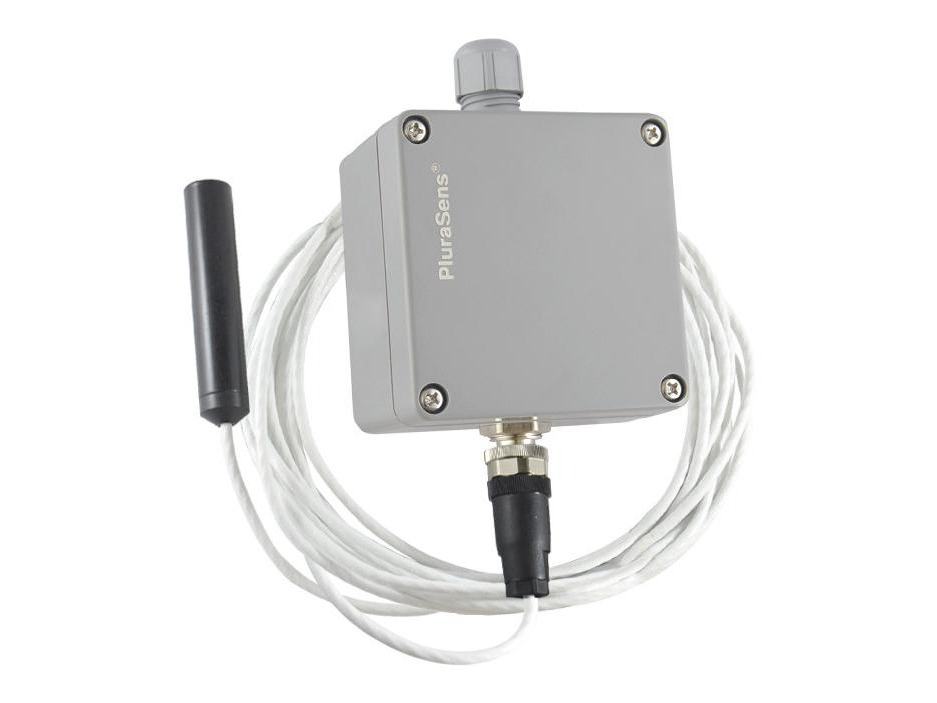

Humidity & temperature transmitter (E2218)

Humidity and temperature transmitter E2218 is a member of new PluraSens ® family of multifunctional measurement instruments. The transmitter is intended for measurement of relative and absolute humidity, temperature and dew point value in air and non-aggressive gases with high accuracy and stability.

Solicitar cotizaciónDescargar ficha técnica

Humidity & temperature transmitter (E2218)

Features

  • Industrial IP65 protected enclosure
  • Two 0-10 V or 4-20 mA switchable analog outputs
  • RS485 Modbus RTU digital interface
  • Attached or remote probes
Humidity & temperature transmitter (E2218)

Description

E2218 features two freely configurable analog outputs 4-20 mA / 0-10 V, RS485 Modbus RTU interface for direct Fieldbus networking and a range of attachable or remote probes for various applications.

Humidity & temperature transmitter (E2218)

Technical Data

Ranges0...100 %RH, -40...+85 or -40...+125 °C
Analog output2 × 3-wire 0-10 V or 4-20 mA, programmable
Output scalefreely adjustable within measurement ranges
Resolution0,01 %RH / 0,01 °C
Accuracy±2,5 %RH, ±0.3 °C; ±1.8 %RH, ±0.3 °C on request
Power supply12...36 VDC (default); 24 VAC as option
Operating conditions-40...+85 °C, 0...100 %RH (non-condensing)
Electromagnetic compatibilityaccording to 2004/108/EEC, 2014/30/EU and EN61326-1 requirements
