E2244

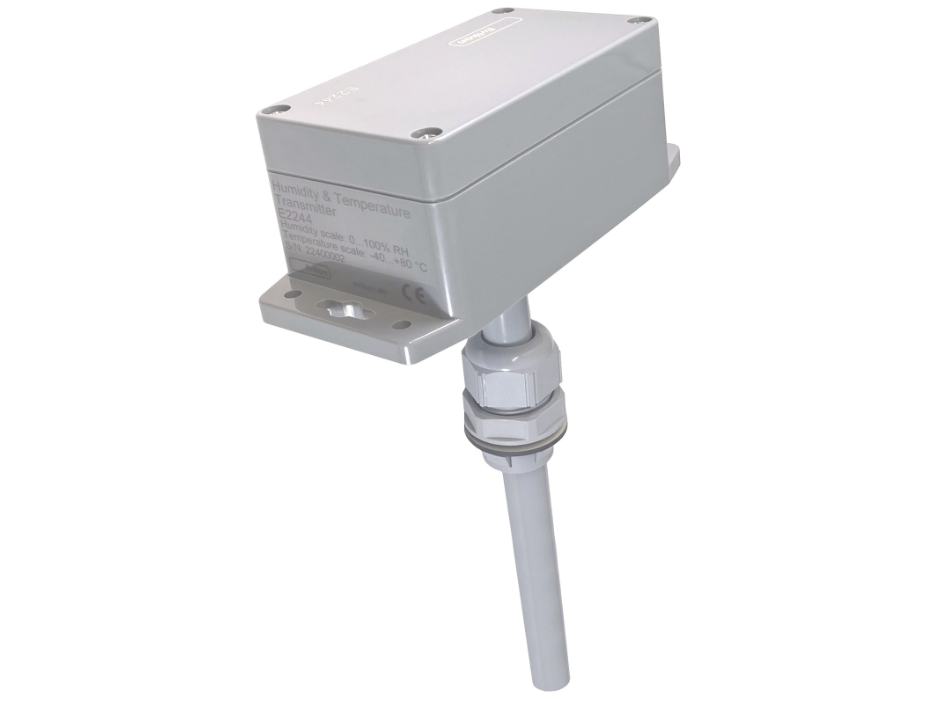

Humidity & temperature transmitter (E2244)

E2244 features 4 analog outputs 2x4-20 mA and 2x0-10 V for connection to various secondary instruments and controllers, BMS systems.

Solicitar cotizaciónDescargar ficha técnica

Humidity & temperature transmitter (E2244)

Features

  • Wall mounting or ventilation airducts mounting (as option)
  • Relative humidity, ambient temperature measurement
  • Industrial IP65 protected enclosure
  • 4 analog outputs (2 x 0-10 V and2 x 4-20 mA)
Humidity & temperature transmitter (E2244)

Description

Possibility of having readings of relative humidity and ambient temperature at the same time.

Easy-to-install enclosure saves time on integration.

Technical Data

Measurement rangesWall-mount version 0…100 %RH, -40…+60 °C; Duct-mount version 0…100 %RH, -40…+80 °C
Analog outputs4 analog outputs (2 x 0-10 V and 2 x 4-20 mA)
Accuracy±2,5 % RH / ±0,5 °C
Power supply12…30 VDC (24 VDC nominal)
Operating conditions-40...+60 °C, 0...100 %RH (non-condensing)
Electromagnetic compatibility (CE marking)according to 89-336-EEC and EN61326-1 requirements
