ET204

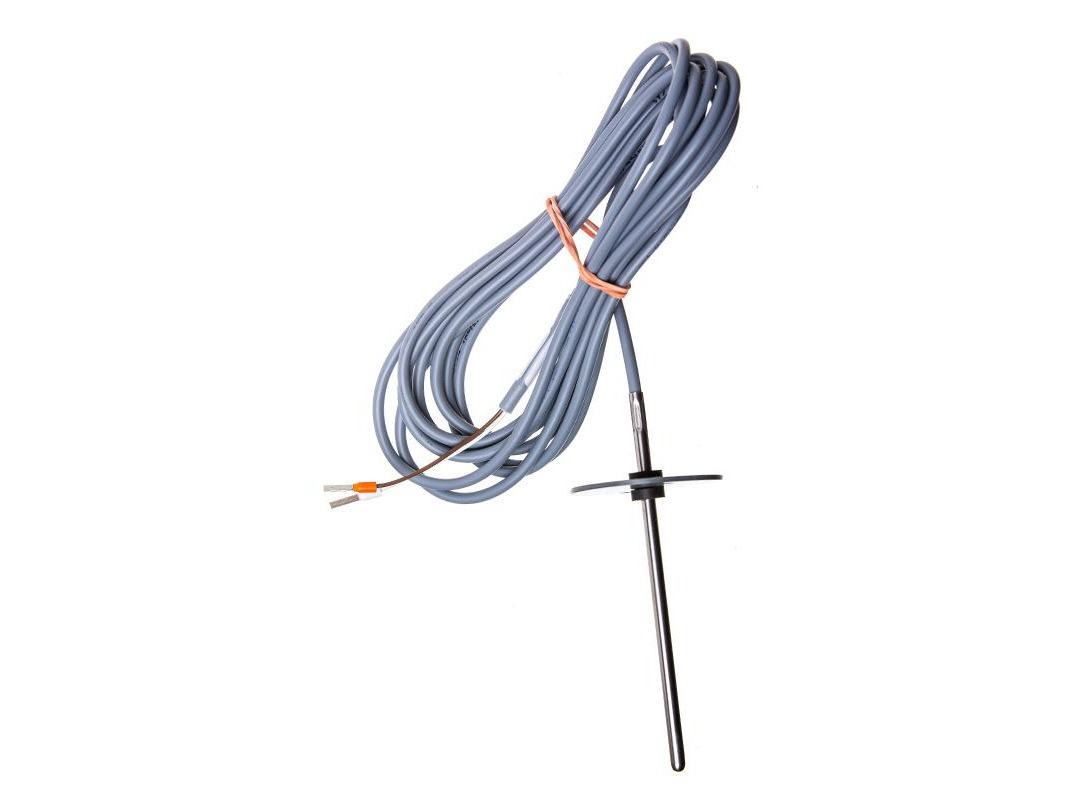

ET204 temperature sensor is designed for use in HVAC/R systems.
Solicitar cotizaciónDescargar ficha técnica
| Sensing element | Pt1000 EN60751 class F0.15 or F0.3; Ni1000 DIN 43760 or LG curve; customer specified NTC thermistor; curves A, B, C, D, F or as specified |
|---|---|
| Stem size options | diameter D 4 / 5 / 6 mm; length L 30...250 mm |
| Protection tube material | thermoplastic polymer; or AISI 316L / EN1.4404 stainless steel |
| Protection class | IP55 |
| Cable | LiYYW 2×0,25 mm^2 |
| Cable length | from 200 to 20 000 mm |
| Operation conditions | -40...+105 °C |
Elija modelo, sondas y accesorios. Las combinaciones incompatibles se bloquean solas; el resto de las reglas se verifica al agregar el equipo a la cotización.
Cargando las opciones…
Se puede pegar un código y la configuración se arma sola.
Se piden por separado: no hace falta configurar el equipo.
ET731 series air temperature sensors are designed for measuring temperatures in air-ducts. Applications include building automation, meteorology and…
Wall mounted temperature sensors for measuring ambient temperature in dry rooms.
ET721 series air temperature sensors are designed for measuring temperatures in dry and damp rooms or outdoors. Applications include building…
ET701 series air temperature sensors are designed for measuring temperatures in dry and damp rooms or outdoors. Applications include building…
ET203 temperature sensor is designed for floor-heating and HVAC systems.
