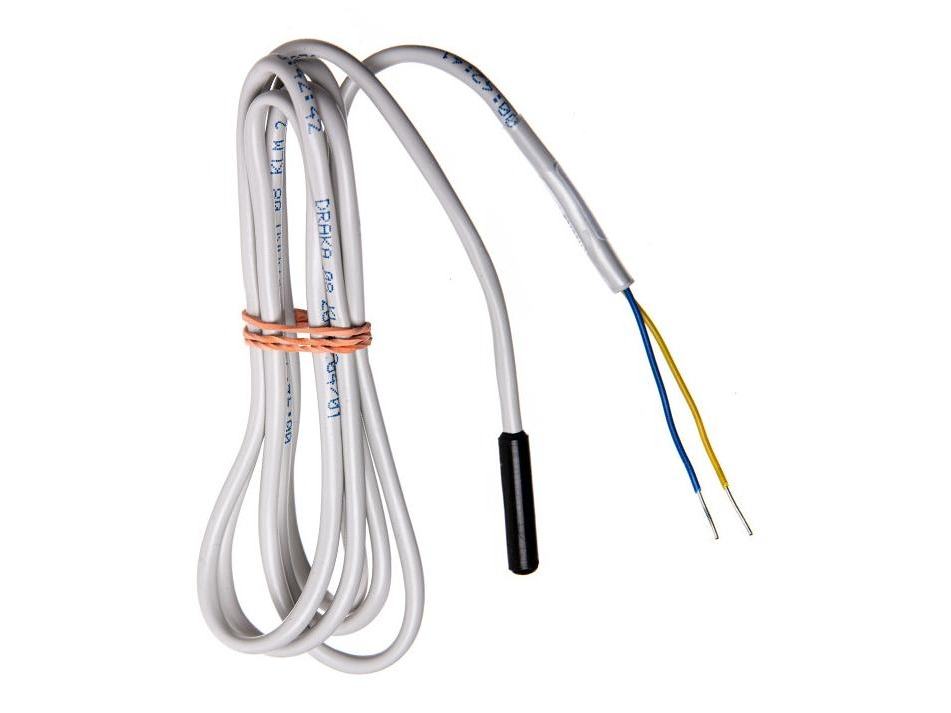

ET203
ET203 temperature sensor is designed for floor-heating and HVAC systems.
Solicitar cotizaciónDescargar ficha técnica
| Sensing element | Pt1000 EN60751 class F0.15 or F0.3; Ni1000 DIN 43760 or LG curve; customer specified NTC thermistor; curves A, B, C, D, F or as specified |
|---|---|
| Protection tube size | diameter D 6 mm; length L 25 mm |
| Protection tube material | thermoplastic polymer |
| Protection class | IP67 |
| Cable options | flexible LiYYW 2×0,22 / 0,25 mm2; rigid KLM 2×0,8 mm |
| Cable length N | from 200 to 20 000 mm |
| Operation conditions | -40...+105 °C |
