Name: RFRTDTemp2000A
SKU: RFRTDTemp2000A

RFRTDTemp2000A

The RFRTDTemp2000A is a wireless RTD-based temperature data logger. Includes standard calibration certificate.

Solicitar cotação Baixar ficha técnica

Key Features

Accepts 2, 3 or 4-wire 100 Ω Platinum RTDs
Continuous Monitoring
Configurable Alarms & Notifications

Description

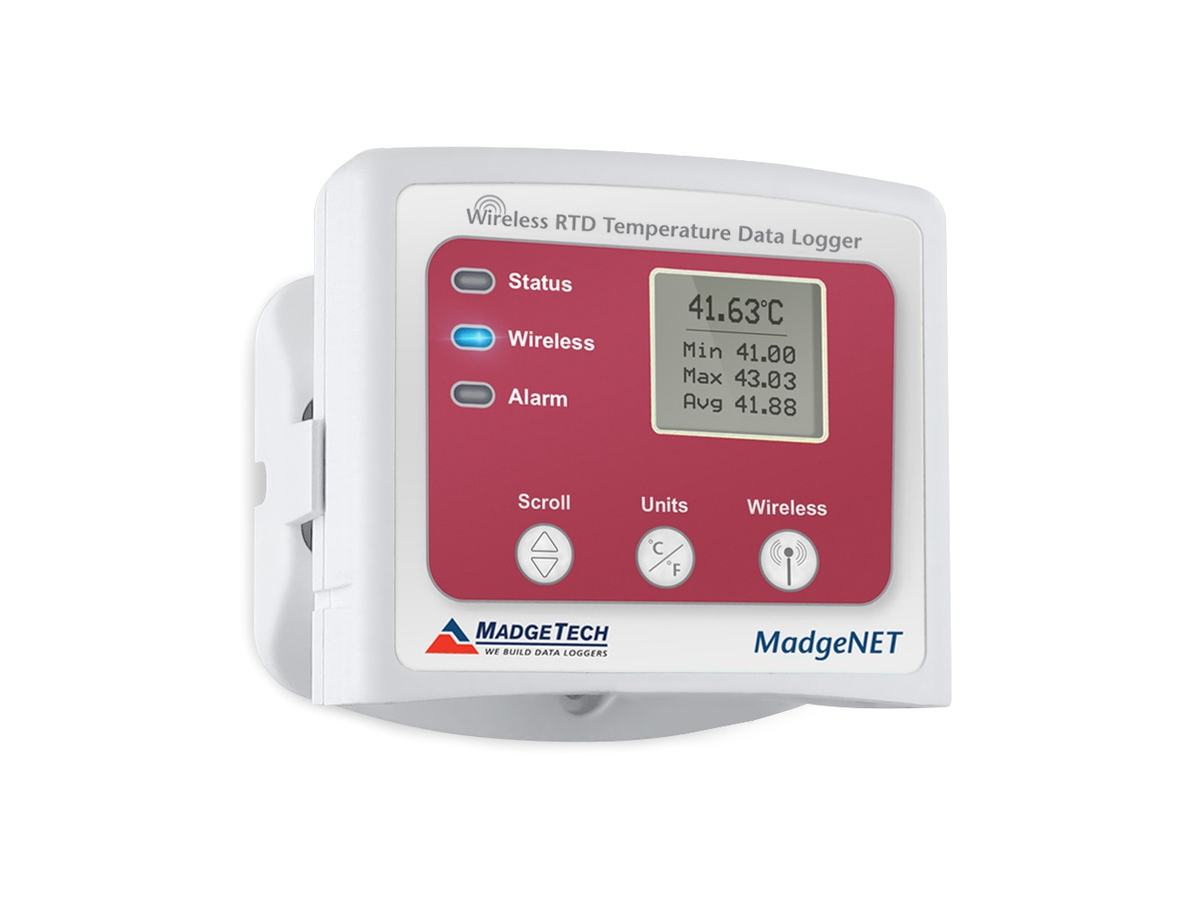

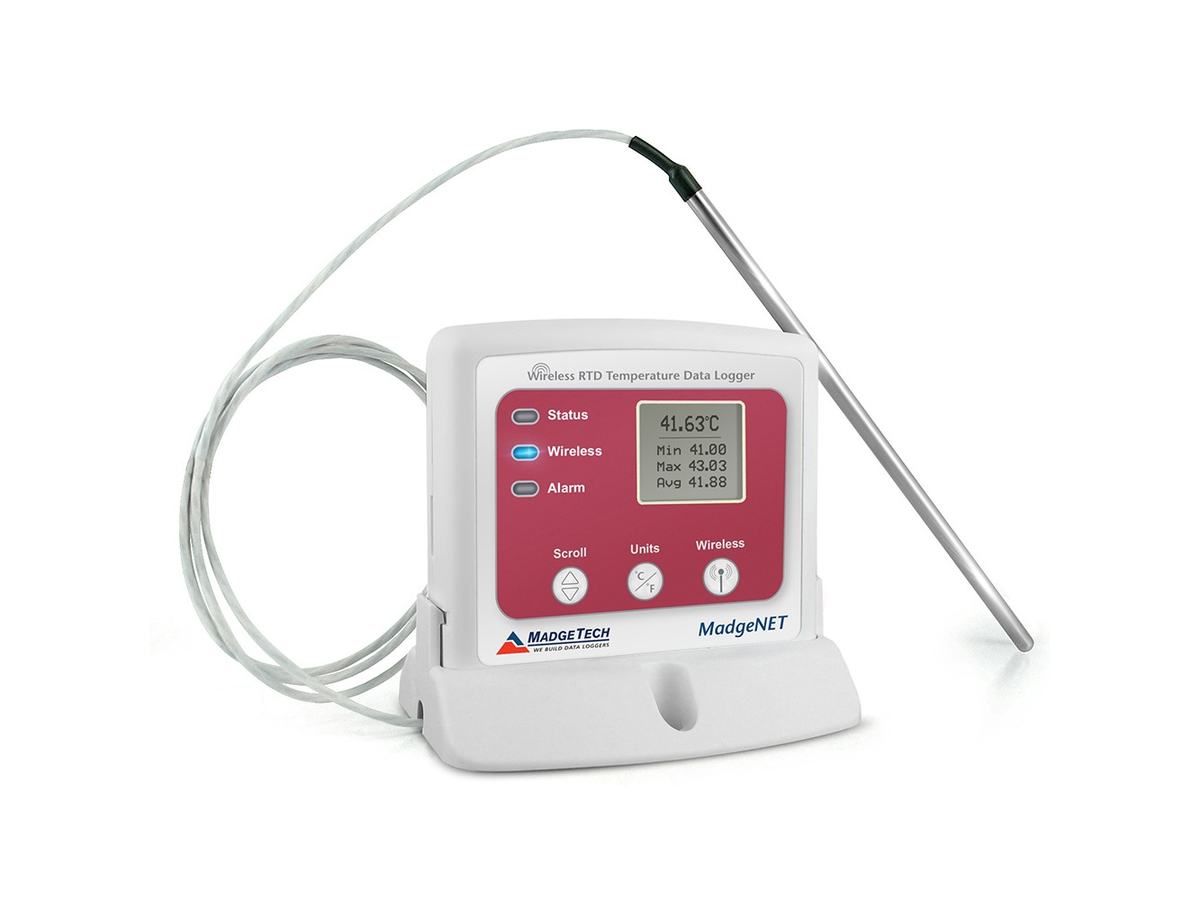

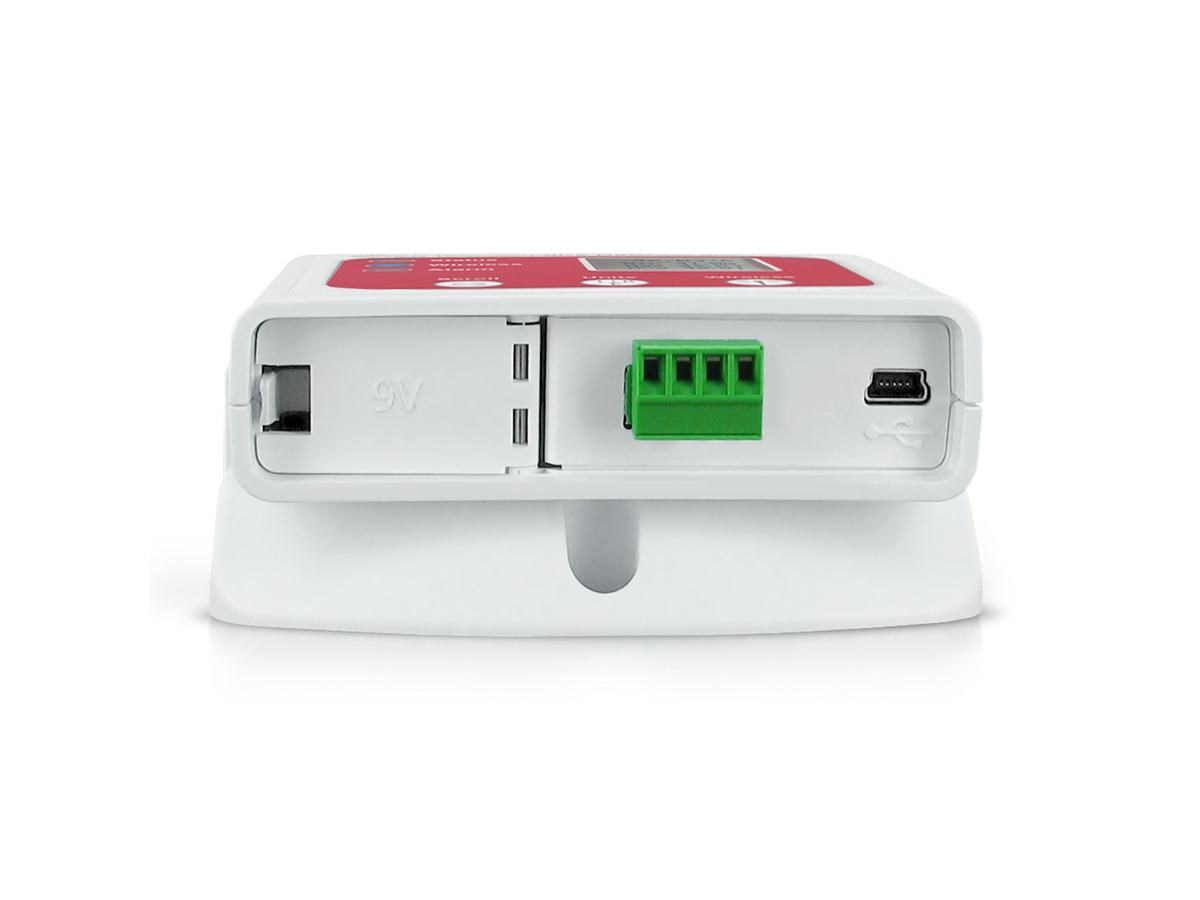

The RFRTDTemp2000A is a wireless RTD-based temperature data logger (probe sold separately). The RFRTDTemp2000A accepts 2, 3 or 4-wire 100 Ω platinum RTDs with an accuracy of ±0.04 °C.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFRTDTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFRTDTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFRTDTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Note: RFC wireless interface required.

General

Memory	21,504 readings
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	3 years typical at a 1 minute reading rate
Material	ABS plastic
Dimensions	3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating	IP22
Operating Environment	-20 °C to +60 °C (-4 °F to + 140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

External Temperature Sensor	100 Ω Resistance Temperature Detector (RTD)
External Temperature Range	18.5 Ω to 390.5 Ω; -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent)
External Temperature Resolution	0.005 Ω; 0.01 °C (0.0018 °F) (Probe Dependent)
External Temperature Calibrated Accuracy	±0.015 Ω; ±0.04 °C (±0.072 °F); (Probe Dependent)

Wireless

RF Carrier Frequency	2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical outdoors Line of sight	Up to 2000 ft
Typical Indoors line of sight	Up to 500 ft

Galeria

Configurar o equipamento

Escolha modelo, sondas e acessórios. As combinações incompatíveis são bloqueadas na hora; as demais regras são verificadas ao adicionar o equipamento à cotação.

Documentos

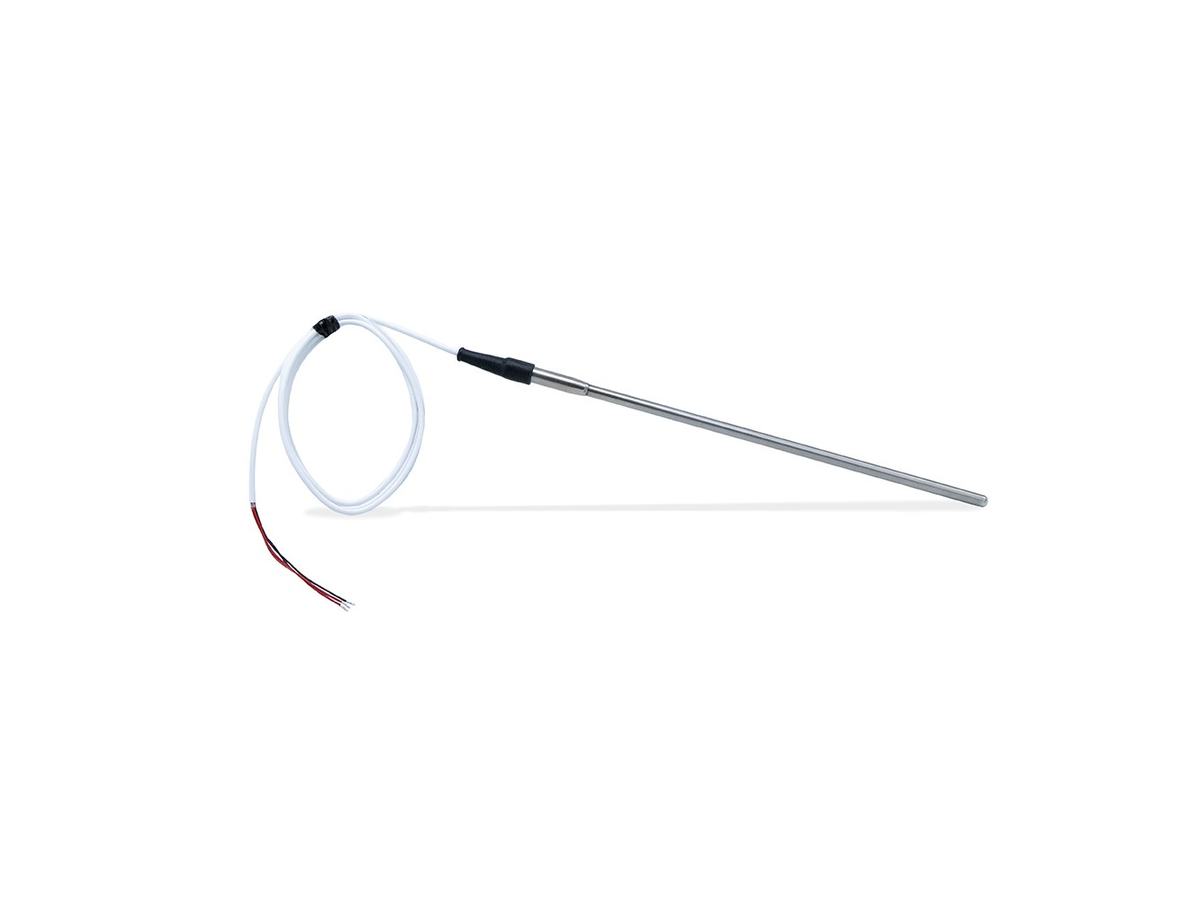

RTD Probe_901516-00
4 Wire 36″ RTD Probe with 6″/12″ Sheath (901516-00)
4 wire, 36″ RTD Probe with 6″/12″ Sheath.
U9VL-J
U9VL-J Lithium Battery
9.0 Volt, Lithium Battery, 1200 mAH
RFC1000
RFC1000 Wireless Transceiver
Wireless transceiver for the RFOT and RF2000A series.
RTD Probe_901915-00
4 Wire 36″ RTD Probe with 6″/12″ Sheath (901915-00)
4 wire, 36″ RTD Probe with 6″/12″ Sheath.
RTD Probe (72 inch)
4 Wire 72″ RTD Probe with 6″ Sheath (RTD Probe (72 inch))
4 wire, 72″ RTD Probe with a 6″ Sheath.
4 Wire 144" RTD Probe (no plug)
4-Wire 144″ RTD Probe (No Plug)
144″ 4-Wire RTD Probe with Stainless Steel Sheath capable of measuring -200 °C to +260 °C.
RFC1000 Cloud Relay
RFC1000 Cloud Relay
MadgeTech Cloud Services data logging hub for use with the RFOT and RF2000A series.
RFC1000-IP69K
RFC1000-IP69K Splash Proof Transceiver
Splash proof wireless transceiver for RFOT and RF2000A series.
