Titan S8
The Titan S8 is a state-of-the-art, 8-channel data acquisition system. Capable of simultaneously measuring and recording temperature, voltage, current, pulse and frequency, the Titan S8 is an all-in-one solution for any application.
Solicitar cotaçãoBaixar ficha técnica

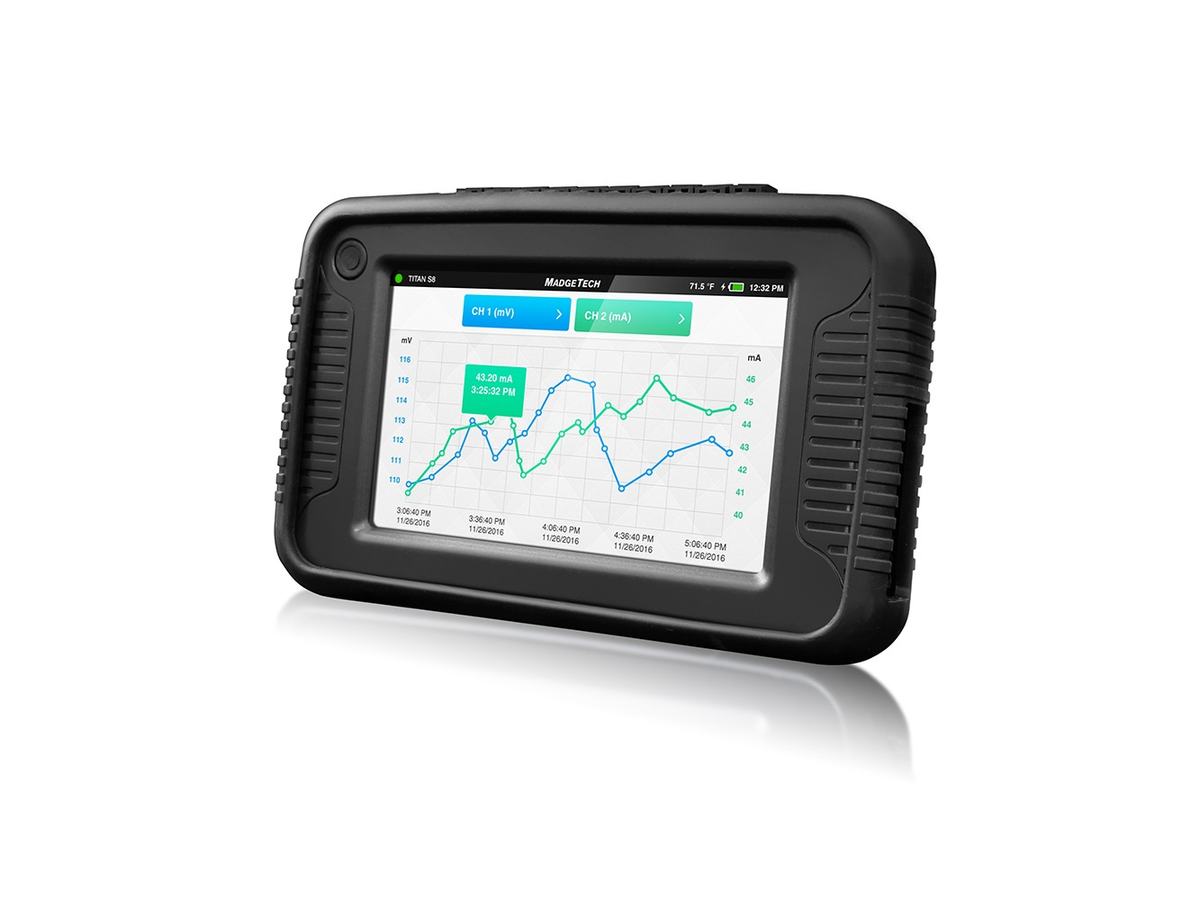

The Titan S8 is an 8-channel, remote access data acquisition logger with a full-color, 5 inch touchscreen interface for real-time monitoring.
This versatile device supports thermocouple, RTD and thermistor probes to measure current, voltage, temperature and pulse. The Titan S8 is an all-in-one solution, allowing users to view all 8 channels simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8 can store up to 5,000,000 readings which can be downloaded to a USB memory device and uploaded to the MadgeTech 4 Software for further analysis.
The handheld Titan S8 provides customizable solutions including channel configurations, engineering units and alarms for benchmark or undesirable readings.
*Due to the versatility of the Titan S8, this device is calibrated to MadgeTech’s standard calibration points.
| Channels | 8 channels (Temperature, Current, Frequency, Voltage, Pulse) |
|---|---|
| Battery Life | 10 hours continuous use |
| Material | PC / ABS Enclosure, TPE Protective Boot |
| Dimensions | 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen. |
| IP Rating | IP20 |
