RTR500BM
T&D RTR500BM
Data Collector for RTR-500/RTR500B Series Loggers with 4G Cellular Phone Network Capability
Solicitar cotizaciónDescargar ficha técnica
Overview
The RTR-500/RTR500B series allows you to mix and match an array of wireless radio communication loggers with various data collectors to meet your needs.

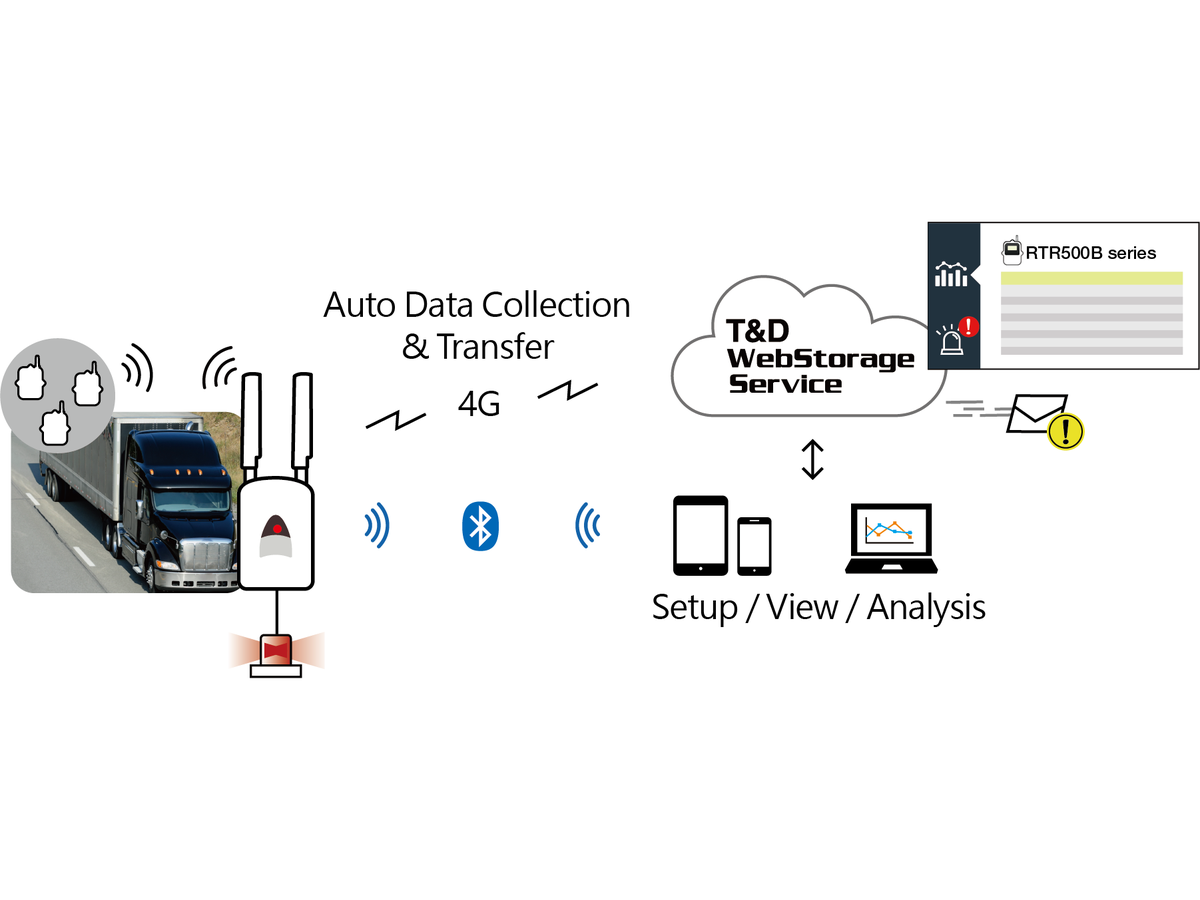

The RTR500BM is a data collector equipped with 4G mobile network capability. It collects data from nearby data loggers via wireless radio communication and then automatically sends it via 4G cell phone networking* to the free cloud storage service "T&D WebStorage Service" for anytime anywhere access.
The RTR500BM also has a warning monitoring function that sends a warning e-mail via T&D WebStorage Service and/or SMS when a set limit is exceeded.
It is perfect for situations where you have no PC or LAN available, such as during transportation, in greenhouses or at construction sites. As long as you can supply power, you can collect and transfer data without worry and stress.
*A SIM card is required. Some carriers in the US are not supported and cannot be used with the RTR500BM.
Note: The RTR500B series is the new generation model of our RTR-500 series.
Main Specifications
| Inter-unit Communication | Optical, Short Range Wireless |
|---|---|
| Data Transfer | 4G Communication |
| Unit - PC | USB |
Special Features
The RTR500BM can be combined with any of our RTR-500/RTR500B series data loggers. And up to 20 loggers can be registered for simultaneous use. Use our PC software “RTR500BM for Windows” or the mobile app “T&D 500B Utility” to make mobile communication settings.
Because it uses mobile networking to transfer data, all you need to do is secure a power source and be in mobile range in order to send data to our cloud-based "T&D WebStorage Service" which makes it easy to check data, display graphs, and check warnings from your PC, smartphone or tablet anytime, anywhere.
Upon a warning, notification can automatically be sent via e-mail from T&D WebStoarge Service and/or SMS. Also, by connecting a buzzer or lamp to the contact output, you can set up an on-site alarm.
