TR-72nw
T&D TR-72nw
2-channel IoT temperature and humidity logger connectible via Ethernet and USB!
Solicitar cotizaciónDescargar ficha técnica
Overview
The TR-72nw allows you to measure and record temperature from 0 to 55°C and humidity from 10 to 95%RH.
Functional buttons on the device allow you to make settings and start/stop recording. Use the Ethernet connection to auto-upload data to the cloud for anytime anywhere access and get warning notices. Connect to a PC with a USB cable to download recorded data, create reports and make setting changes.
It is perfect for not only homes and offices but for warehouse and storage facilities.
Main Specifications
| Channels | Temperature 1ch, Humidity 1ch (External) |
|---|---|
| Range | Temperature: 0 to 55°C Humidity: 10 to 95%RH |
| Comm Interfaces | Wired LAN, USB |
| Waterproof Capacity | None |
Special Features

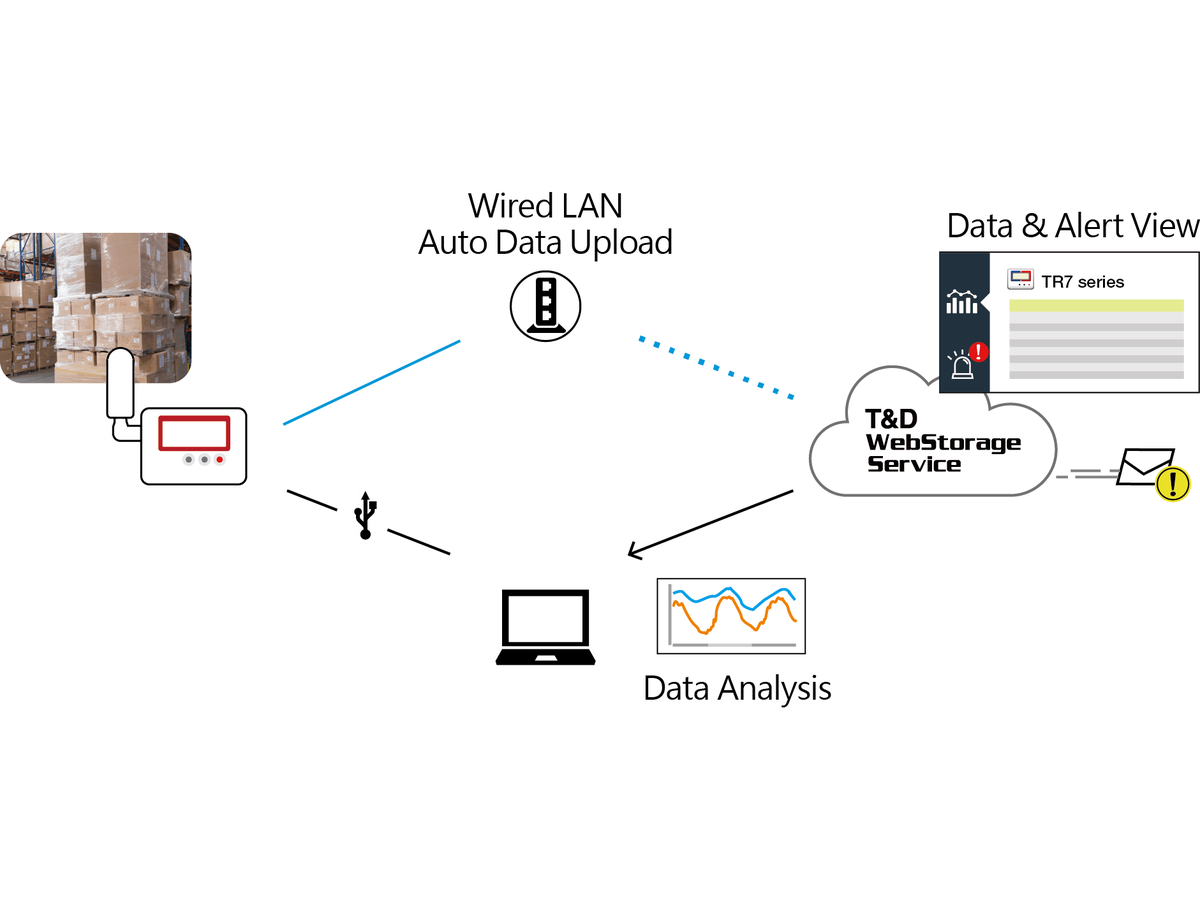

The TR-72nw uses a wired LAN connection to auto-upload recorded data and warning notifications to our free cloud-based "T&D WebStorage Service" or your Windows PC running the "T&D Data Server" software. Use our mobile app “T&D Thermo” to check data from your smartphone or tablet. To make settings from and download data via USB to a PC, use our Windows software “TR7 for Windows”. Our Windows software “T&D Graph” makes it easy to view and analyze data from your PC.
Configurar el equipo
Elija modelo, sondas y accesorios. Las combinaciones incompatibles se bloquean solas; el resto de las reglas se verifica al agregar el equipo a la cotización.
Cargando las opciones…
TR-72nw
Se puede pegar un código y la configuración se arma sola.
Servicios y accesorios
Se piden por separado: no hace falta configurar el equipo.
Documentos
Instrumentos relacionados
T&D TR72A2
Ultimate IoT temperature and humidity logger connectible via wireless LAN, Bluetooth and USB!
T&D TR-72nw-S
High precision 2-channel IoT temperature and humidity logger connectible via Ethernet and USB!
Sensor Extension Cable (TR-5C10)
Option recommended when you wish to extend the supplied sensor cable.
High Precision Temperature-Humidity Sensor (SHA-3151)
This sensor is supplied with the '-S' type models and also available as an option for the regular type (without -S) models.
Wall Attachment (TR-07K2)
This attachment is for use with the TR7 series, TR-73U, TR-74Ui/74Ui-S, and RTR-574/574-S.
Temperature-Humidity Sensor (THA-3001)
This is our standard temperature-humidity sensor for use with the TR72A2, TR-72nw, RTR-574, RTR-576, TR-74Ui, and TR-76Ui.
USB Mini-B Cable (US-15C)
This cable is supplied with the data loggers and data collection devices that are USB-compatible.
