ET231
ET231 Series surface thermometers with bayonet lock are intended for measuring temperatures in solids, on bearings and moulding tools, for example in the plastics industry.
Solicitar cotizaciónDescargar ficha técnica
Thanks to the conical shape of the measuring tip, these temperature probes are suitable for use in cone-shaped bores.
The rugged pressure spring acts as a cable protector and ensures a uniform pressure between the measuring tip and the bottom of the hole. The sensor provides good heat transfer through adjustable spring pressure. The fitting length can be altered by rotating the bayonet lock.
The sensor is normally a Pt100 temperature sensor to EN 60 751, Class A in 3-wire circuit. Versions with thermocouples, Pt1000, PTC or NTC sensors are available on request.
Elija modelo, sondas y accesorios. Las combinaciones incompatibles se bloquean solas; el resto de las reglas se verifica al agregar el equipo a la cotización.
Cargando las opciones…
Se puede pegar un código y la configuración se arma sola.
Se piden por separado: no hace falta configurar el equipo.

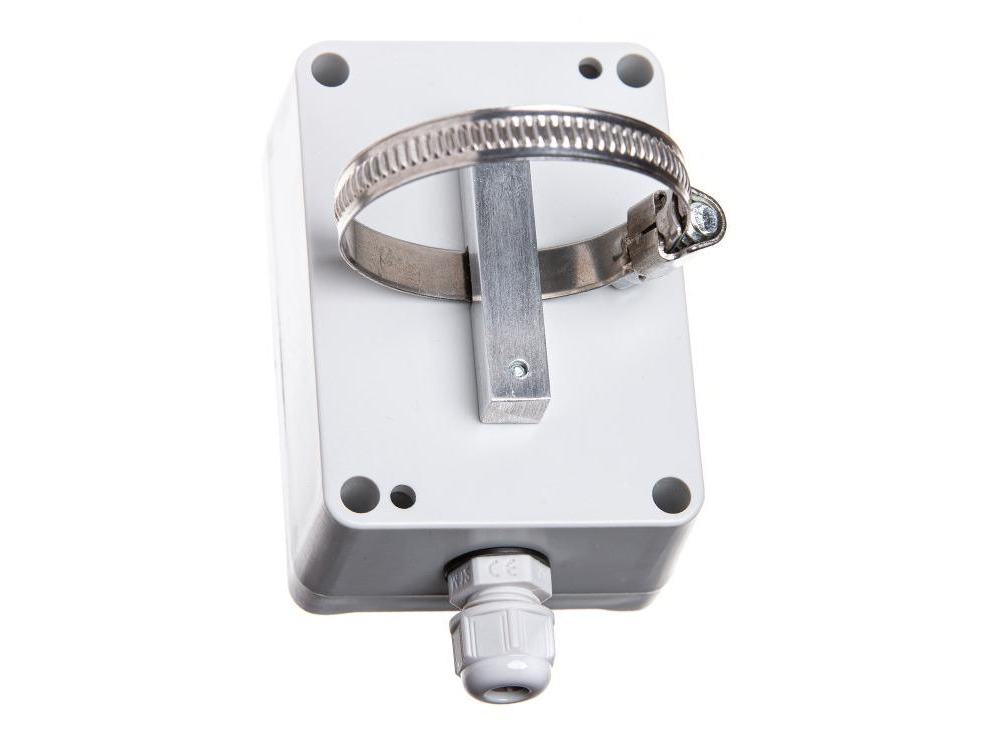

ET741 series pipe surface temperature sensors are designed for measuring temperatures of hot water pipes in HVAC applications.
ET243 surface temperature sensor is designed for measuring temperature on closed pipe systems or other round or flat surfaces. The sensor can be…
ET241 series surface temperature sensors are designed for measuring temperatures on closed pipe systems or other round or flat surfaces. The sensor…
ET203 temperature sensor is designed for floor-heating and HVAC systems.
ET244 surface temperature sensor is designed for measuring temperature on flat or slightly curved surfaces. The sensing element is encapsulated in a…
