ET243

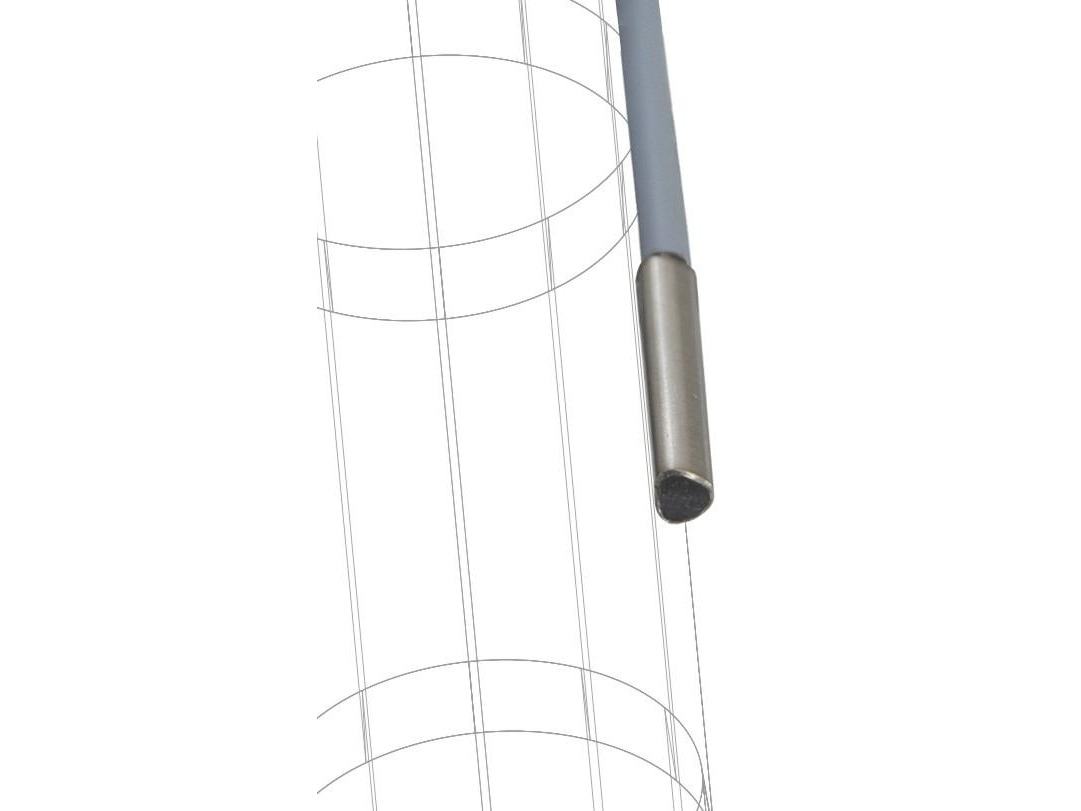

Pipe surface temperature sensor (ET243)

ET243 surface temperature sensor is designed for measuring temperature on closed pipe systems or other round or flat surfaces. The sensor can be conveniently fixed with a nylon cable tie without any mechanical preparation of the measurement site.

Solicitar cotizaciónDescargar ficha técnica

Pipe surface temperature sensor (ET243)

Features

  • Operating range -40...+80 °C or -30...+105 °C
  • Pt1000 sensor
  • For pipes Ø16...60 mm
  • PVC insulated cable
Pipe surface temperature sensor (ET243)

Description

Indirect temperature measurement avoids disturbing flow of the medium and the measurement object is hardly affected by the low thermal mass of the sensor. On the other hand, lack of pressure and chemical effects ensures longer lifespan of the sensor.

It must be considered that large differences in temperature between the measurement medium and surroundings have a direct effect on the measurement result. In such cases, additional insulation around the sensor and the cable in at least 10 cm range is advisable. To improve heat transfer from surface to the sensor, heat-conductive paste can be supplied.

Technical Data

Sensing elementPt1000 EN60751 Class A
Measurement ranges-40...+70 / 80 °C (with LiYY cable)
(continuous / peak)-30...+70 / 105 °C (with LiYwYw cable)
Protection classIP67
BodyA4 stainless steel
Dimensions24×5,5×6,5 mm
Encapsulationpolyamide (nylon)
Cable(LiYY or LiYwYw) 2×0,25 mm2 / 2×0,22 mm2; outer diameter 3,3 / 3,7 mm
Cable insulationPVC
Fits pipesØ16...60 mm
