CA10

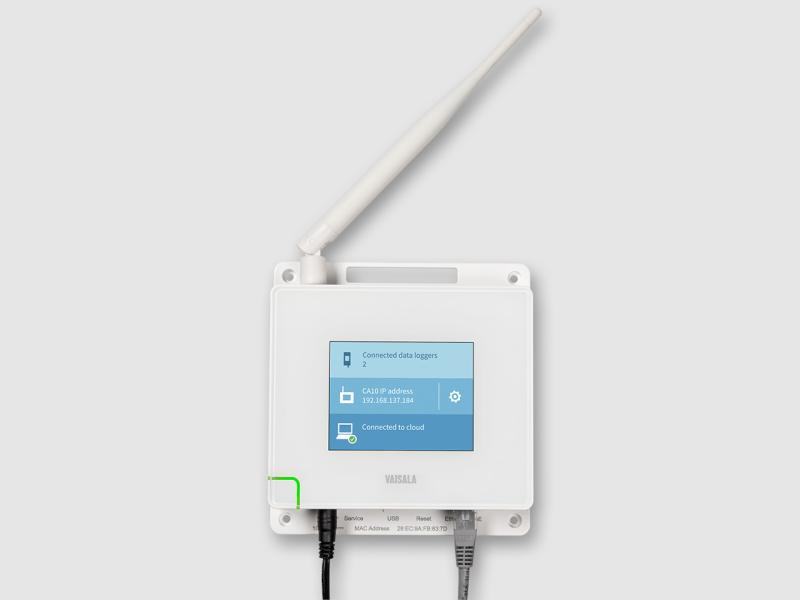

CA10 Cloud Access Point
for CWL100 Wireless Data Logger
Request a quoteDownload the datasheet
Cloud Access Point CA10 is part of the Vaisala Jade Smart Cloud system. CA10 is a wireless networking hardware device that connects CWL100 data loggers to Jade Smart Cloud service. CA10 enables management of the data loggers from the cloud interface. The access point always requires an Internet connection for operation.
CA10 access points and CWL100 data loggers are associated with a specific Vaisala Jade Smart Cloud account when they are purchased so there is no need for the user to do any device pairing actions.
Features
- Connects up to 32 CWL100 wireless data loggers to Vaisala Jade Smart Cloud
- Displays connection status of data loggers and cloud service
- Long range LoRa™ radio with over 100 m (328 ft) typical indoor range
- End-to-end data encryption
- Powered by Power over Ethernet (POE) or DC adapter
- Internet connection required
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
CA10
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Key benefits
Data integrity
Data is encrypted during LoRa transfers to protect against eavesdropping, data tampering, and transfer errors.
Time synchronization
CA10 automatically synchronizes with Network Time Protocol (NTP) servers over the Internet.
Reliability
If a data logger has a connection problem, it will automatically connect to another available nearby access point in the system. At least two access points with free capacity are needed for failover to function.
Documents
- DatasheetCA10 Cloud Access Point is a wireless networking hardware device for connecting CWL100 data loggers to Vaisala Jade Smart Cloud service.
- User guide
