CAB100
CAB100 Industrial Cabinet for continuous monitoring systems
for cleanrooms and industrial settings
Request a quoteDownload the datasheet
The CAB100 is designed for continuous monitoring and alarming of cleanroom and industrial areas. The cabinets provide centralized integration of transmitters with the viewLinc Enterprise Server. The Vaisala CAB100 is an instrument panel that integrates Vaisala’s world-class sensors for monitoring humidity, temperature, differential pressure and many other parameters into a simple, pre-configured cabinet.
Gallery

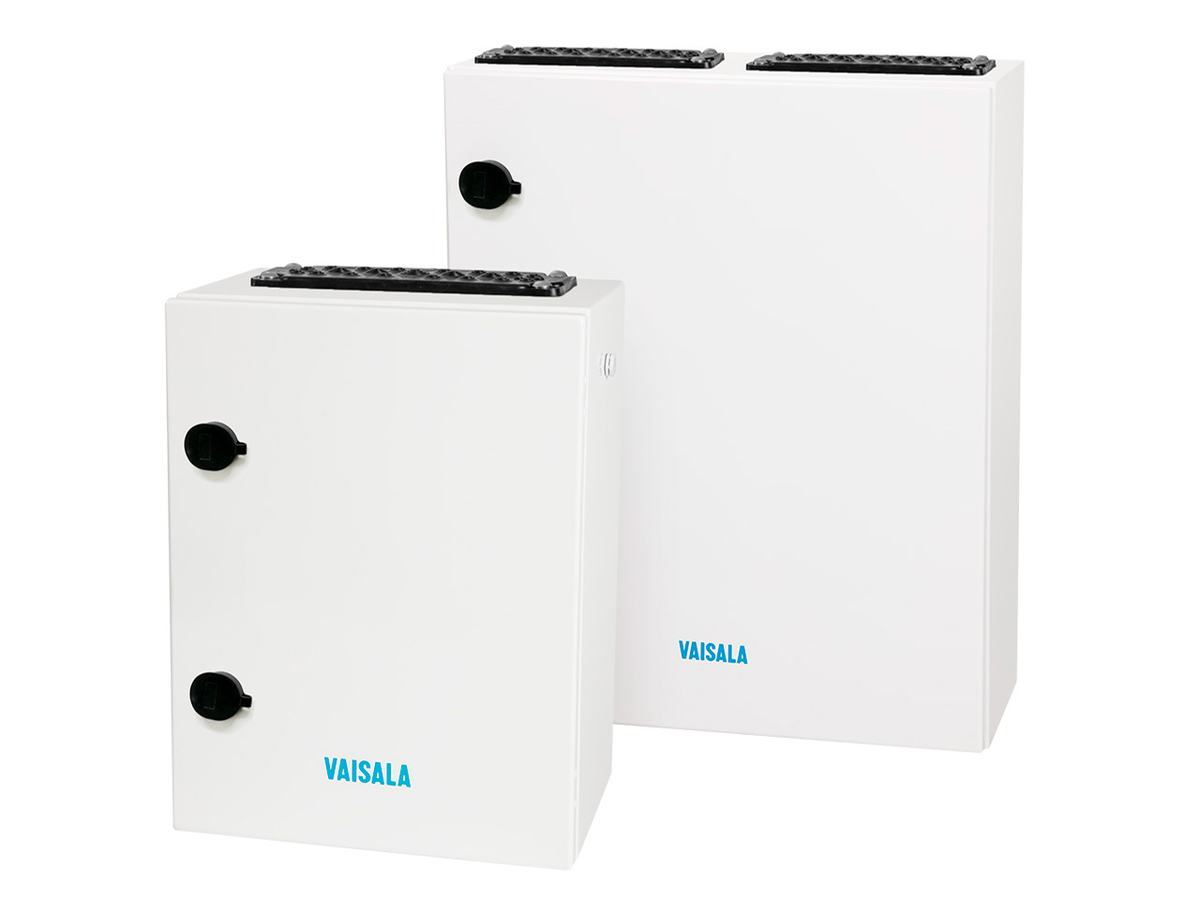

CAB100 Industrial Cabinet for continuous monitoring systems
CAB100 Industrial Cabinet for continuous monitoring systems
CAB100 Industrial Cabinet for continuous monitoring systems
CAB100 Industrial Cabinet for continuous monitoring systems
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
CAB100
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Key benefits
Fully assembled

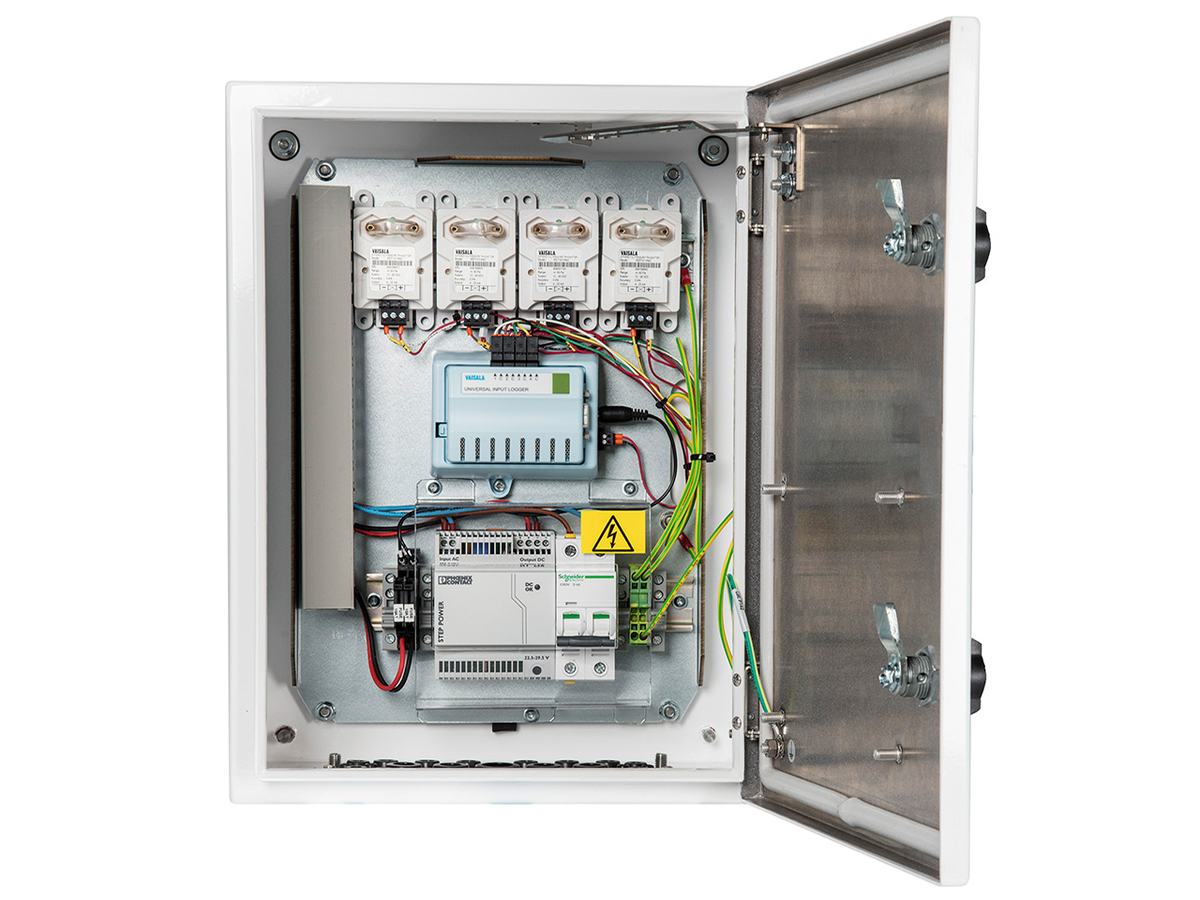

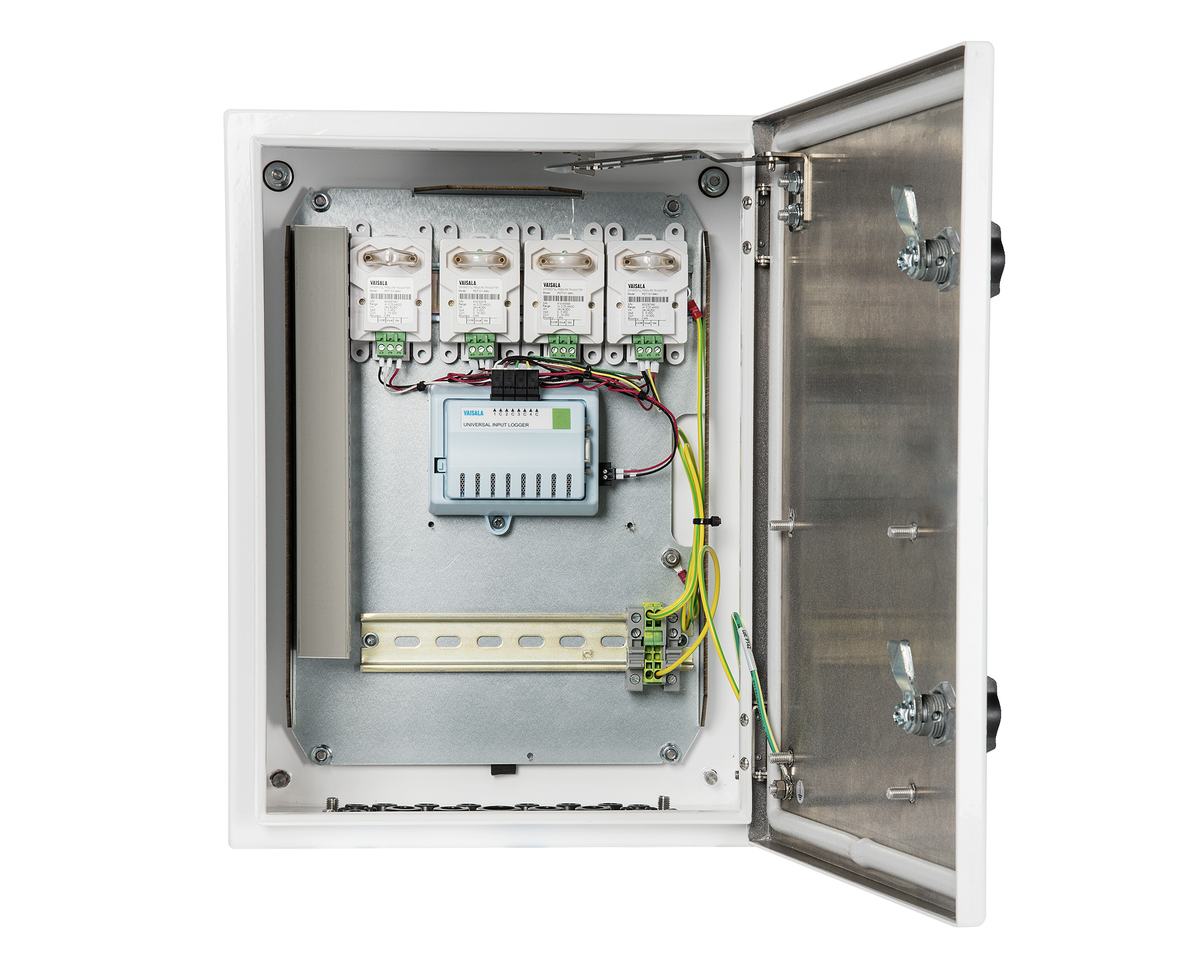

The CAB100 includes: 24V universal power supply, circuit breaker, terminal blocks, internal cable management and factory mounting of all internal transmitter and barriers. The small cabinet has the option of using either 24V universal power supply or vNet data logger interface for Power over Ethernet.
Flexible design, easy connectivity
Designed for field upgradeability or expansion. Both large and small CAB100 models include the hardware required for wiring analog transmitter channels. All that is required is an Ethernet cable, a power cable and pressure tubing or signal wiring from the monitored environment into the cabinet's transmitters. Networking options include Power Over Ethernet and/or a serial portserver.
One cabinet, multiple parameters

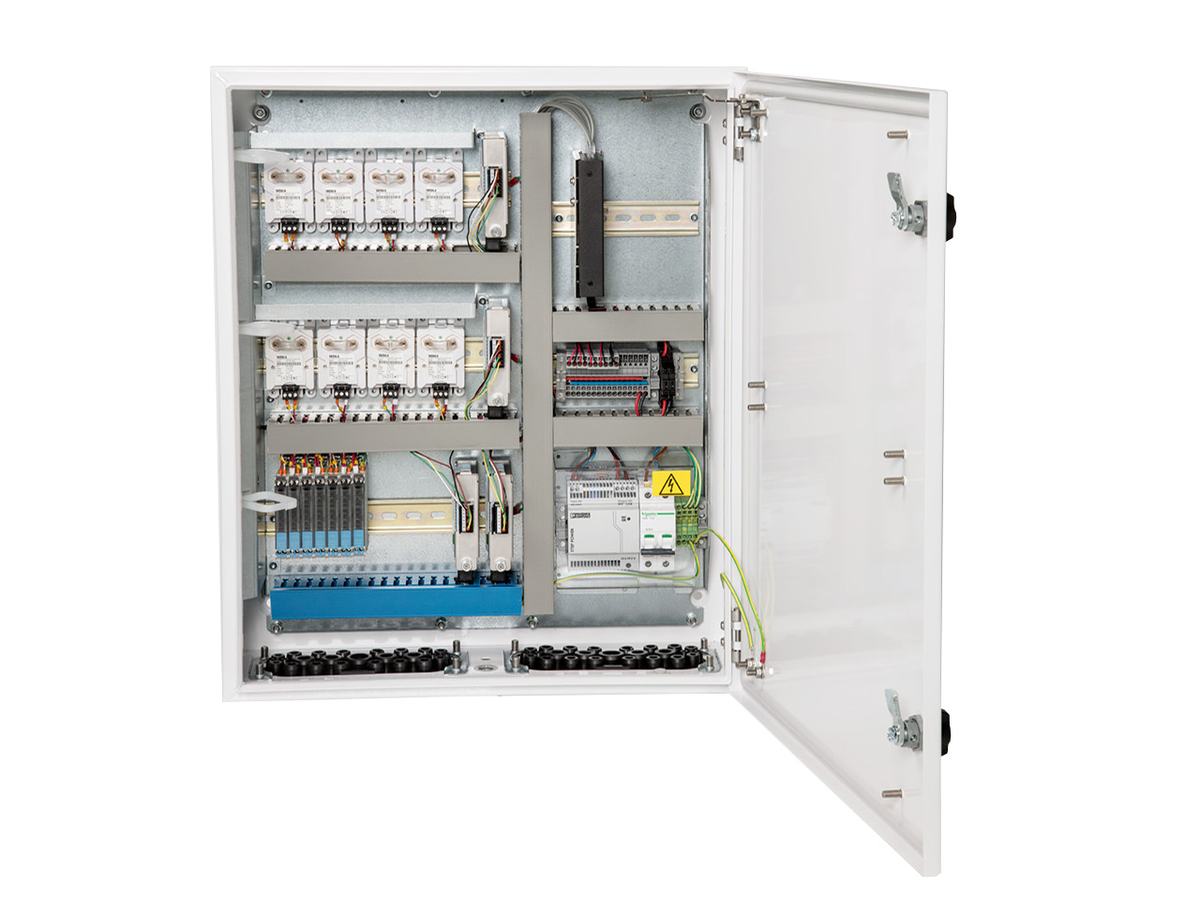

The large CAB100 allows a mix of parameters: differential pressure and analog devices with optional safety barriers or galvanic isolators. Small cabinets measure one parameter: differential pressure, analog, safety barriers.
Documents
- DatasheetVaisala CMS Industrial Cabinet CAB100 integrates Vaisala’s world-class instruments for monitoring differential pressure and other parameters into a simple, pre-configured instrument panel.
- User guideThis document provides instructions for installing, wiring, and maintaining Vaisala CMS Industrial Cabinet CAB100.
