DJ-05

DJ-05 Antistatic Ionizer

Antistatic ionizer is used to remove overflow of mainly plus ions, and also minus ions from the load and elements of a balance and the environment. Electric charges of the air are neutralized by the ionizer enabling reaching a quasi-balance of plus and minus ions. Unbalance of plus and minus ions in the air frequently causes unwanted electric influences (attraction or repulsion) of elements which are in small distance to each other. It is a usual phenomenon for non-conducting materials (i.e.

Request a quoteDownload the datasheet

DJ-05 Antistatic Ionizer

Overview

Antistatic ionizer is used to remove overflow of mainly plus ions, and also minus ions from the load and elements of a balance and the environment. Electric charges of the air are neutralized by the ionizer enabling reaching a quasi-balance of plus and minus ions.

Unbalance of plus and minus ions in the air frequently causes unwanted electric influences (attraction or repulsion) of elements which are in small distance to each other. It is a usual phenomenon for non-conducting materials (i.e. plastic, glass). As some of balance elements are made of plastic and glass, this problem can considerably affect their operation and measurement results. The influence of electrostatics appears in a form of multiplied repeatability error or as multiplied error of indications.

Physical parameters

Neutralization methodCorona discharge, alternating emission of positive and negative ions
Distance form a sample5 – 200 mm (recommended 5 – 50 mm)
Neutralization time<5 s (typically <2 s)
Frame dimensions175×70×172 mm
Packaging dimensions W x D x H375×375×150 mm
Net weight1,3 kg
Gross weight2,5 kg

Electrical parameters

Power supplypower supply: 100 – 240V AC 50/60Hz 1A Max; 15V DC 2,4A ionizer: 12-15V DC 2W
High voltage5 kV DC, pulsed, peak value
Maximum short-circuit current<2mA (output HV)

Ambient conditions

Operating temperature0 – +50 °C
Relative humidity5% – 80% no condensation

Antistatic Ionizer

Documents

  • MYA 21.5Y

    MYA 21.5Y Microbalance

    MYA Microbalances have the world’s lowest reading unit [d] 1 μg and the lowest minimum weight [USP] 0.82 mg. They are equipped with an automatic…

  • MYA 2.5Y

    MYA 2.5Y Microbalance

    MYA Microbalances have the world’s lowest reading unit [d] 1 μg and the lowest minimum weight [USP] 0.82 mg. They are equipped with an automatic…

  • MYA 0.8/3.5Y

    MYA 0.8/3.5Y Microbalance

    MYA Microbalances have the world’s lowest reading unit [d] 1 μg and the lowest minimum weight [USP] 0.82 mg. They are equipped with an automatic…

  • UYA 2.5Y

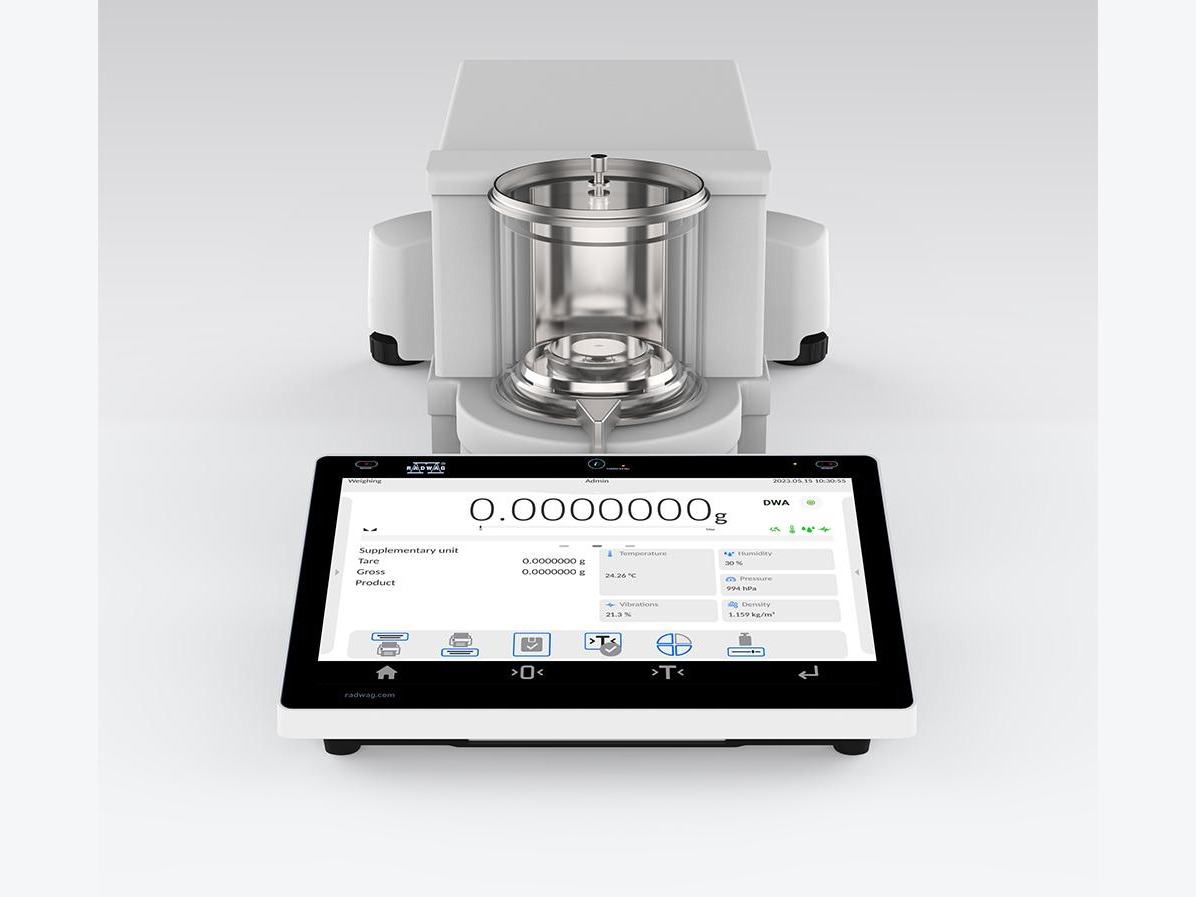

    UYA 2.5Y Ultra-Microbalance
