HAXO-16U-M

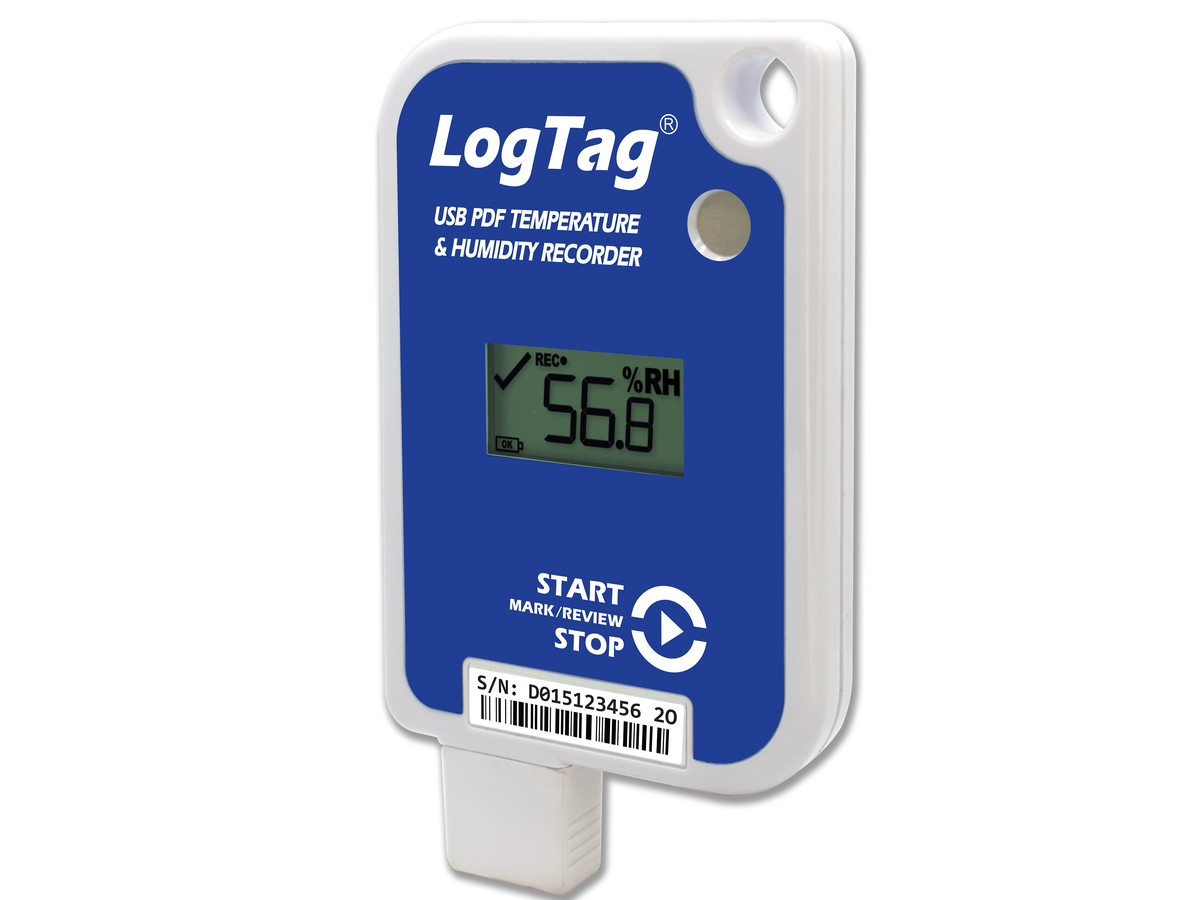

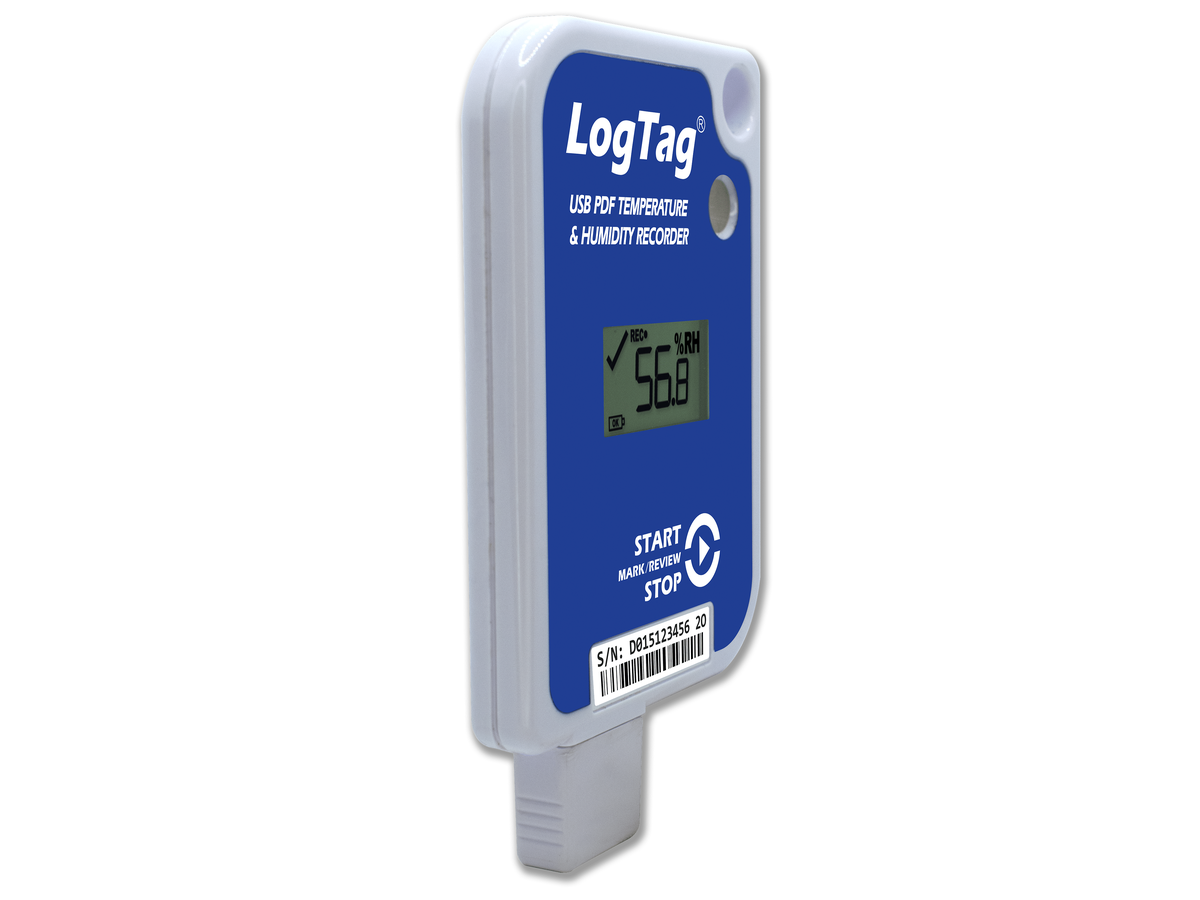

LogTag HAXO-16U-M

Name: LogTag HAXO-16U-M
SKU: HAXO-16U-M

Multi Use USB Data Logger - Humidity & Temperature Recorder

Request a quote Download the datasheet

Highlights

Measuring range: -30 °C to +70 °C @ 0 to 100 % RH
Software-free PDF and CSV reports
Integrated USB port
Temperature and humidity sensors
Easy operation with just one button
Recording and storage of data for up to 365 days
LCD display for monitoring at a glance
Industry-leading speed for downloading reports

LogTag HAXO-16U-M Multi Use-Data Logger for Accurate & Reliable Humidity Monitoring

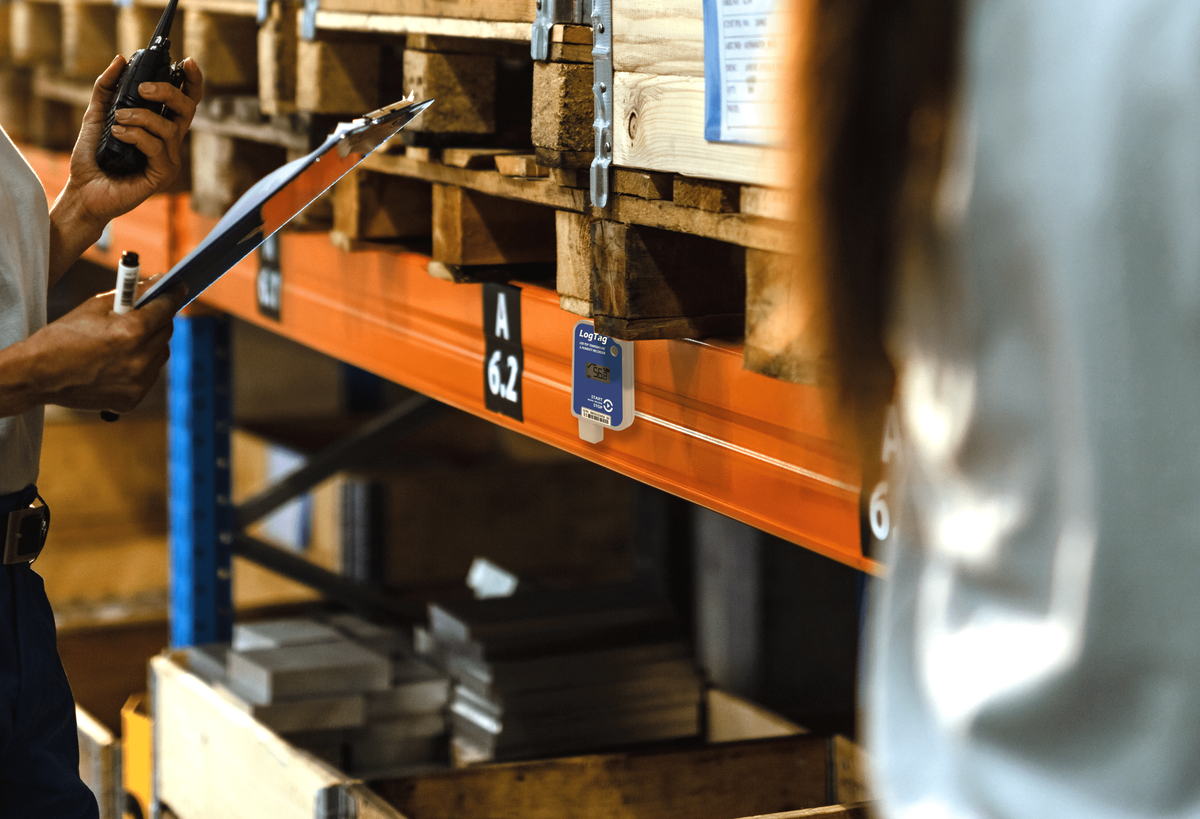

The HAXO-16U is engineered to accurately and reliably monitor temperature and humidity conditions, protecting goods such as healthcare/pharmaceutical products, livestock, food, flowers, and powders during transportation and storage.

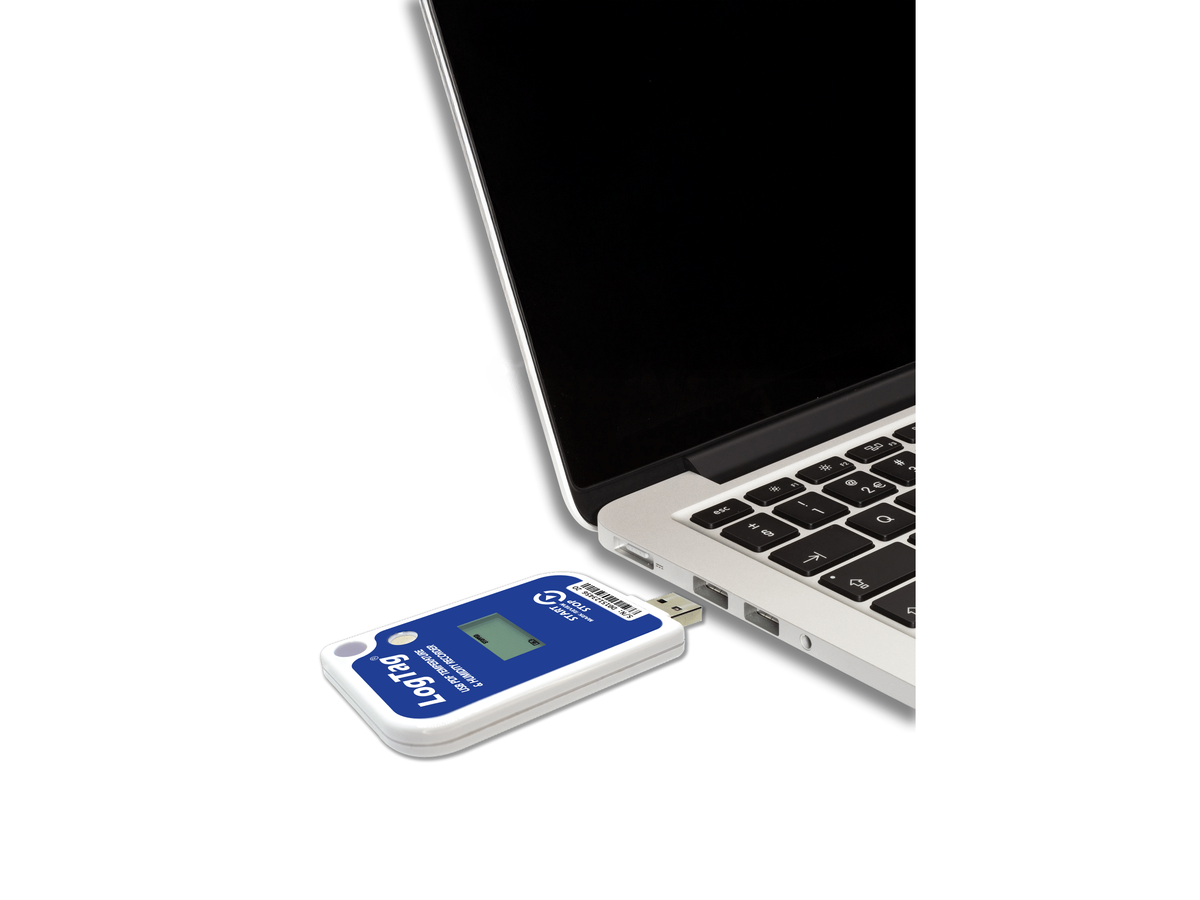

Say goodbye to cradles and slow data downloads! This Datalogger features a built-in USB connection for fast report downloads direct to your PC, allowing users to easily retrieve and analyze data without any additional software.
This USB data logger features a rugged polycarbonate case so your data is protected even at -30 °C. The HAXO‑16U can withstand the rigors of cold chain shipping, providing proven reliability in challenging environments and ensuring you can always retrieve your data.
With a capacity of up to 32,000 readings and a battery life of up to 2 years (multi-use), the HAXO-16U offers uninterrupted monitoring over long durations. Configuration is easy using LogTag® Analyzer, a free software tool that enables customization to suit your monitoring requirements, making it a powerful yet cost-effective solution for businesses that need dependable environmental data logging without added complexity.

Technical Data

Product Model	HAXO-16U-M
Temperature Sensor Measurement range	-30 °C to +70 °C (-22 °F to +158 °F)
Recorder Operating Temperature Range	-30 °C to +70 °C (-22 °F to +158 °F)
Storage Temperature Range	0 °C to +40 °C (+32 °F to +104 °F)
Humidity Measurement Range	0 %RH to 100 %RH (non-condensing), with limitations
Humidity Operating Range	0 %RH to 100 %RH (non-condensing), with limitations
Storage Humidity Range	20 %RH to 60 %RH
Rated Temperature Reading Accuracy	Better than ±0.45 °C (±0.8 °F) for +0 °C to +50 °C (+32 °F to +122 °F), typically ±0.3 °C (±0.6 °F); Better than ±0.8 °C (±1.4 °F) for +50 °C to +70 °C (+122 °F to +158 °F), typically ±0.5 °C (±0.9 °F); Better than ±0.95 °C (±1.7 °F) for -30 °C to +0 °C (-22 °F to +32 °F), typically ±0.6 °C (±1.1 °F); Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
Rated Humidity Reading Accuracy	Better than ±3 %RH for 20 %RH to 80 %RH, typically ±2 %RH; Better than ±5 %RH for 0 %RH to 20 %RH, typically ±4 %RH; Better than ±5 %RH for 80 %RH to 100 %RH, typically ±4 %RH; Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration
Humidity Resolution	Better than 0.1 %RH
Temperature Resolution	Better than 0.1 °C or 0.1 °F
Recording Capacity	32,000 logs, up to 365 days @ 16 min logging
Sampling Interval	Configurable from 30 seconds to 18 hours
Logging Start Options	Push button start or date and time start
Environmental	IP61 with USB cap fitted
Power source	CR2450 3V Li-MnO2 UN38.3 Approved coin cell, non-rechargeable, non-replaceable
Battery Life	3 years storage, 2 years of operational life (based on 5 minute logging)
Connection Interface	Built-in USB 2.0
Size	107 mm (H) x 54.5 mm (W) x 8.6 mm (T) including USB cap
Weight	46.8 g
Case Material	Polycarbonate
