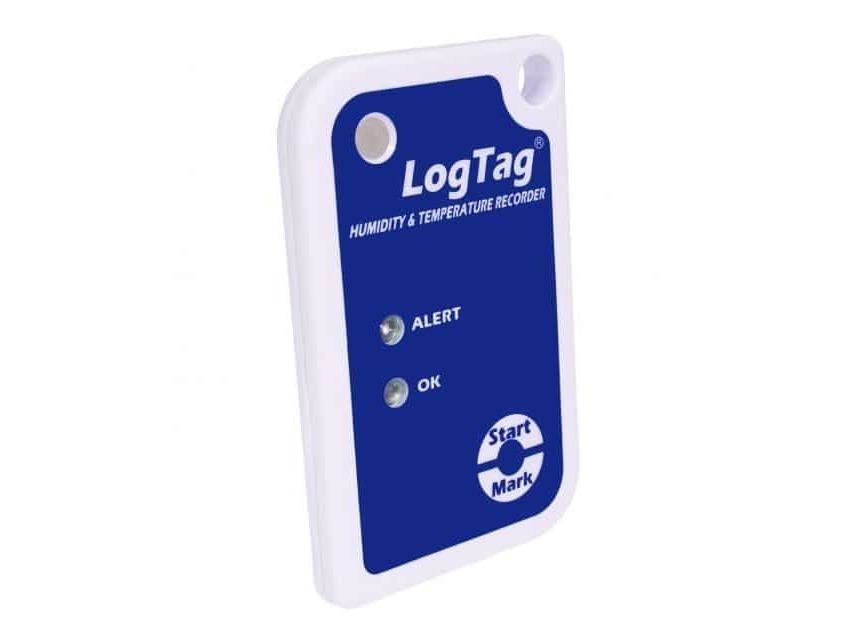

HAXO-8
LogTag HAXO-8
Multi-use Humidity & Temperature Logger
Request a quoteDownload the datasheet
Highlights
- Alert indicator – indicates if readings are outside of preset limits
- OK indicator indicates if still recording and if readings within configured limits
- Record high resolution Temperature and Humidity readings simultaneously.
- Up to 8,000 paired humidity and temperature recordings
- Real time clock records time & temperature simultaneously
- Re-calibration to achieve higher accuracy possible
- For multiple applications use
Overview
The LogTag® Humidity & Temperature Recorder measures and stores up to 8000 sets of high resolution humidity and temperature readings over 0 to 100%RH & -40 °C to +85 °C measurement ranges.
Using the LogTag® Interface and LogTag’s freely available companion software LogTag® Analyzer, the LogTag® is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag® Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.

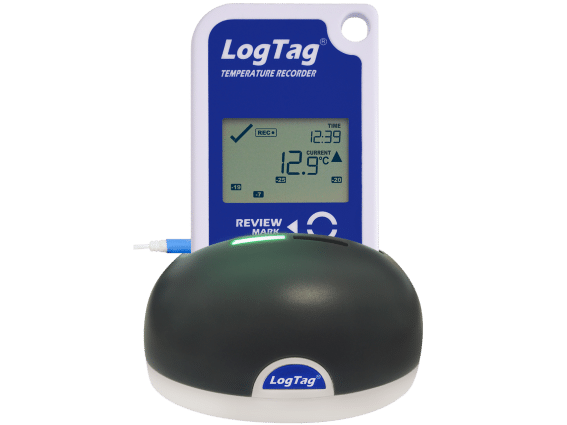

Please note: An interface is required for configuration and reporting
Technical Data
| Product Model | HAXO-8 |
|---|---|
| Temperature Sensor Measurement range | -40 °C to +85 °C (-40 °F to +185 °F) |
| Recorder Operating Temperature Range | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature Range | +10 °C to +50 °C (50 °F to +122 °F)* |
| Humidity Measurement Range | 0 % RH to 100 % RH (non-condensing), with limitations |
| Humidity Operating Range | 0 % RH to 100 % RH (non-condensing), with limitations |
| Storage Humidity Range | 20 %RH to 60 %RH* |
| Rated Temperature Reading Accuracy | Better than ±0.45 °C (±0.8 °F) for +0 °C to +50 °C (+32 °F to +122 °F), typically ±0.3 °C (0.6 °F). Better than ±0.8 °C (±1.4 °F) for +50 °C to +80 °C (+122 °F to +176 °F), typically ±0.5 °C (0.9 °F). Better than ±0.95 °C (±1.7 °F) for -40 °C to +0 °C (-40 °F to +32 °F), typically ±0.6 °C (1.1 °F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | Better than 0.1 °C or 0.1 °F |
| Rated Humidity Reading Accuracy | Better than ±5 %RH for 10 %RH to 80 %RH. Better than ±6 %RH for 0 %RH to 10 %RH. Better than ±7 %RH for 80 %RH to 100 %RH. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Humidity Resolution | Better than 0.1 % RH |
| Recording Capacity | 8,003 pairs of humidity and temperature readings 53 days @ 10min logging, 80 days @ 15min logging |
| Sampling Interval | Configurable from 30 seconds to several hours |
| Logging Start Options | Push button start or specific date & time. Optional start delay (30 seconds to 18 hours) |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator |
| Download Time | Typically less than 10 seconds for full memory, depending on computer or readout device used |
| Environmental | IP61 (when hung or mounted vertically) |
| Power source | 3V LiMnO2 Battery (Fixed) |
| Battery Life | Fixed Battery. 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly) |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (i.e typically +/- 0.00294 seconds/day/°C) |

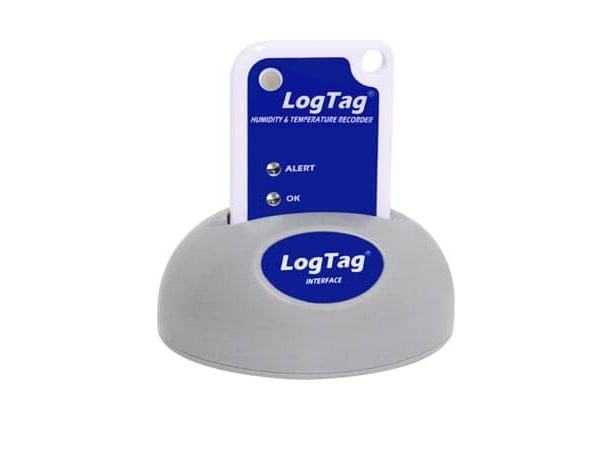

| Connection Interface | Interface Cradle |
| Software | LogTag® Analyzer |
| Size | 86 mm(H) x 54.5 mm(W) x 8.6 mm(T) |
| Weight | 34 g |
| Case Material | Polycarbonate |
| *Optimal Storage Condition | For optimal Humidity logger storage, store units in original packaging in an air conditioned area. (...) |
| EN12830 | EN 12830:2018 - Temperature recorders for the transport, storage and distribution of temperature sensitive goods - Test, performance, suitability |
Gallery
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
HAXO-8
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
Related instruments

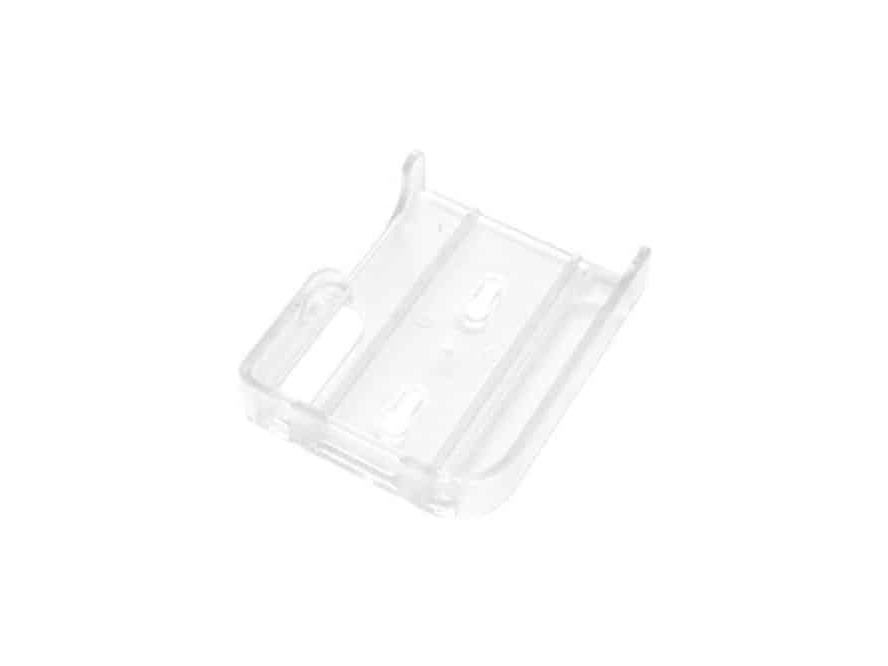

Wall Mount Bracket WMB-01
