HMD60

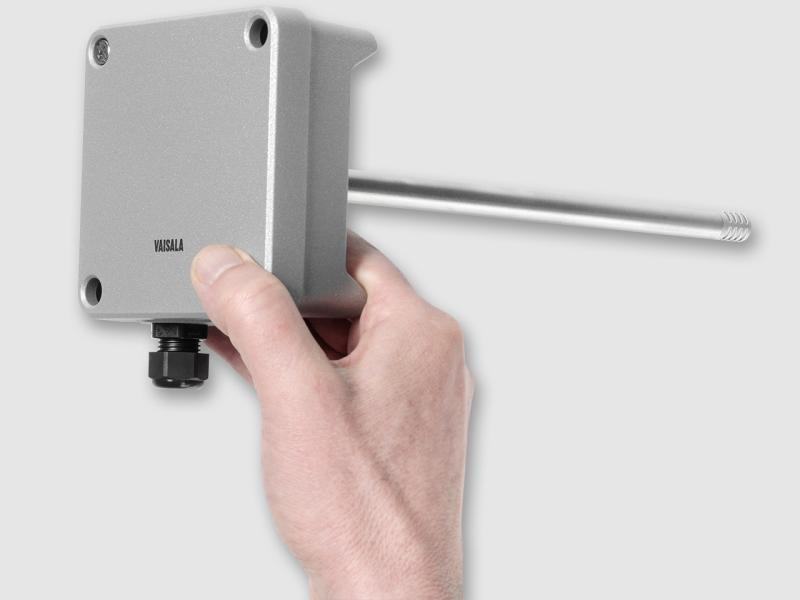

Duct Humidity and Temperature Transmitter HMD60
For high precision measurements in demanding HVAC applications
Request a quoteDownload the datasheet
The sturdy and reliable duct mounted HMD60 transmitter is designed for measuring air humidity and temperature in demanding HVAC systems. The combination of high accuracy, excellent measurement stability and reliable operation makes this product an ideal choice for applications with the highest requirements.
±1.5 %RH, ±0.1 °C / ±0.18 °F accuracy measurements in air ducts Robust and reliable, IP66 rated all metal body Traceable calibration (certificate included) Analog, Modbus RTU and BACnet MS/TP output options Optional parameters: dew point, wet bulb, enthalpy, absolute humidity, mixing ratio Optimal choice for demanding building automation and HVAC process control Humidity models: HMD60 (configurable), HMD62, HMD65 See also the temperature models: TMD60
Fit for demanding measurement needs
Vaisala delivers advanced HVAC transmitters that empower automation systems to perform flawlessly in the most demanding environments, from data centers and semiconductor fabs to cleanrooms, hospitals, and other critical spaces, ensuring precise, reliable measurements where they matter most.
Our transmitters offer superior reliability, easy installation, and seamless integration with major Building Automation and Building Management Systems. The comprehensive product range includes temperature, humidity, air pressure, dew point, and CO₂ for ambient air, pipes, ducts, and outdoor applications.
Gallery
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
HMD60
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
- DatasheetThe duct mounted HMD60 series HUMICAP® transmitters HMD62, TMD62, and HMD65 are designed for light industrial applications and demanding HVAC applications such as museums, cleanrooms, and laboratories.
- User guideInstructions for installing, using, and configuring HMD60 Series Humidity and Temperature Transmitters for Ducts in HVAC.
