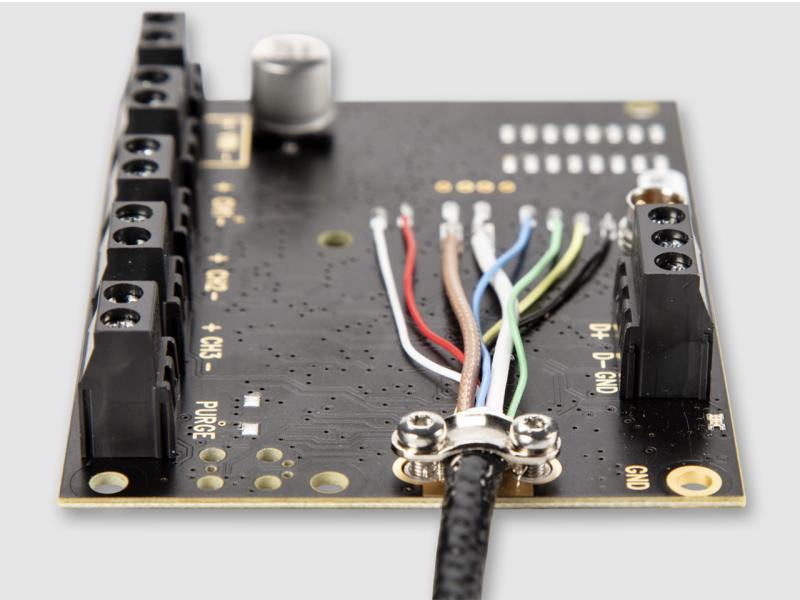

Humidity and Temperature Module HMM170

Name: Humidity and Temperature Module HMM170
SKU: HMM170

for environmental chambers

Vaisala HUMICAP® Humidity and Temperature Module HMM170 is a robust open frame transmitter for integration into environmental chambers that need accurate and reliable measurement even in demanding conditions including vacuum or high pressure.

Built to last

The module is built to last for years and it is easy to integrate into the chamber and the circuit board. Both digital and three configurable analog output channels are available, ensuring compatibility for most chamber types. In addition to relative humidity and temperature, dew point and other calculated parameters are available.

Configure the instrument

Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.

Key benefits

Designed for harsh environments
While test set-ups become increasingly demanding, (example 95 % relative humidity and 95 °C (203 °F)), the HMM170 measurement capability covers the full climate chamber temperature range and full humidity range up to condensation. The instrument also tolerates vacuum conditions and pressure up to 10 bar.
Robust sensor technology
In addition to the recognized accuracy and stability of the Vaisala HUMICAP® sensor technology, HUMICAP® R2 complements this with improved corrosion resistance. Thanks to the automatic purge and probe heating functions, the sensor tolerates typical chemicals and prevents water condensation.
Convenient to use
The modular design with digital (RS-485/Modbus RTU) and three configurable analog output channels make installation easy. An integrated service port enables quick configurations, and calibration with Vaisala Insight PC software and a USB cable.

Documents

DatasheetVaisala HUMICAP® Humidity and Temperature Module HMM170 is an open frame OEM module for integration into demanding environmental chambers and harsh conditions. The module provides a digital RS-485/Modbus RTU output and three freely configurable analog output channels. The module provides relative humidity, temperature, dew point, and other calculated parameters.
User guideThis document provides information on the installation, operation, and maintenance of Vaisala HUMICAP Humidity and Temperature Module HMM170.
