HMP110T

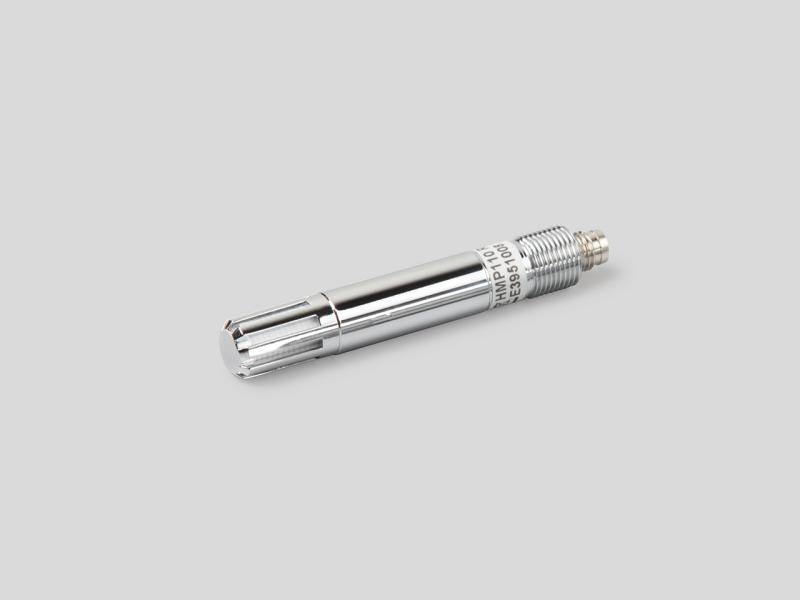

Humidity and Temperature Probe HMP110
with ±1.5%RH accuracy for demanding volume applications
Request a quoteDownload the datasheet
The Vaisala HUMICAP® Humidity and Temperature Probe HMP110 is a trouble-free and cost-effective humidity transmitter with high accuracy and good stability. The power consumption is low and it has fast startup for battery-powered applications.A rugged polyurethane filled stainless steel body survives also in rough conditions. All models come with a calibration certificate. This probe is suitable for volume applications or integration into other manufacturers' equipment and also for glove boxes, greenhouses, fermentation and stability chambers, data loggers, and incubators.
Three models available:
Humidity and temperature probe Temperature only probe with an RS485 interface supporting Modbus RTU protocol Temperature only probe with voltage outputs
The miniature size HMP110 has a measurement range of 0 ... 100 %RH; -40 ... +80°C and the probe incorporates the latest generation HUMICAP® 180R sensor for best stability and high chemical tolerance. The HMP110 has an IP65-classified metal housing.
Features
- Miniature-size humidity transmitter
- Low power consumption and fast startup for battery powered applications
- Measurement range: 0 ... 100 %RH; -40 ... +80°C
- Cable detachable with standard M8 quick connector
- Reliable: Latest generation HUMICAP® 180R sensor for best stability and high chemical tolerance. IP65 metal housing.
- Optional RS485 digital output
- Temperature only version HMP110T also available
- Optional dew point calculation
- Comes with a certificate
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
HMP110T
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Key benefits
Several outputs
Three standard voltage outputs are available.
Easy maintenance
HMP110R replacement probe service available for easy maintenance.
Easy installation
The probe cable has a screw-on quick connector for easy installation.
Documents
- DatasheetDatasheet for Vaisala HUMICAP® Humidity and Temperature Probe HMP110 and Vaisala Temperature Probe HMP110T.
- User guideThis document provides reference information about humidity and temperature probes HMP60 and HMP110 series.
