HMT130
Humidity and Temperature Transmitters HMT120/130
Multi-purpose high-precision transmitters with exchangeable probes
Request a quoteDownload the datasheet
HMT120 and HMT130 humidity transmitters stand for accurate, reliable measurements with excellent long-term stability. These multi-purpose transmitters with exchangeable measurement probe are the perfect choice for data centers, cleanrooms and other demanding HVAC applications.
FEATURES
±1.5 %RH, ±0.1 °C / ±0.18 °F accuracy Wall-mounted, duct-mounted with a kit, or outdoors with a shield Probe can be attached direct to the transmitter or using a cable Analog output options 0…10 V / 4…20 mA (loop powered) Optional parameters: dew point/frost point, wet bulb, enthalpy, absolute humidity, mixing ratio Traceable calibration (certificate included)
Models: HMT120 (current output), HMT130 (voltage output)
See also models with temperature sensors only: TMT120/TMT130
Robust design for industrial measurements
The necessities of demanding professional use have been taken in careful consideration in the design of the instrument. The transmitters incorporate the renowned Vaisala HUMICAP® technology with humidity sensor HUMICAP® 180R. HMT120 and HMT130 are applicable for indoor and outdoor use alike, and the multi-purpose instrument fits in various applications and installation requirements.
The measurement probe of the instrument can be easily removed and replaced with a new one without having to adjust the transmitter, which allows for easy and quick recalibration of the sensor. Maintaining measurement traceability is easy as the probe can be exchanged with minimal downtime and process disturbance.

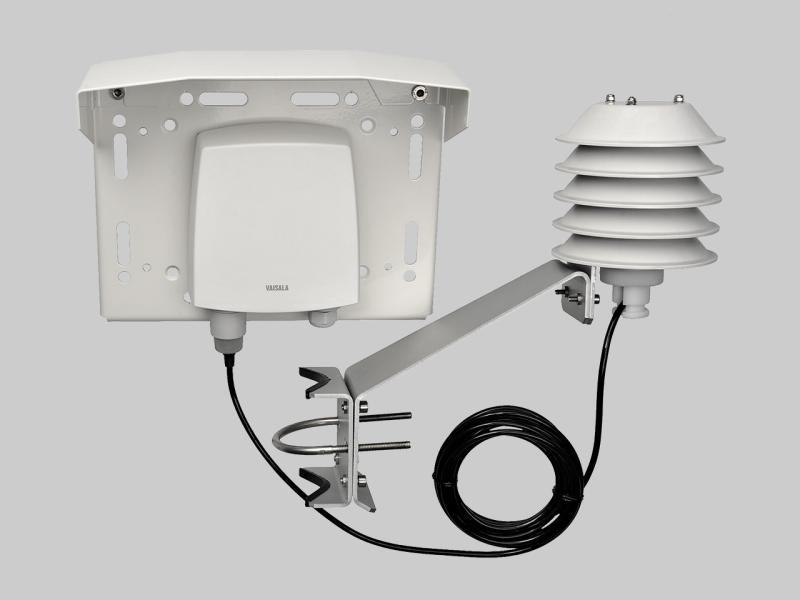

The transmitters are available as wall mounted or with a remote probe coming with a cable. The remote probe is ideal for rough conditions like high-temperature applications, or where space is limited. The devices can also be mounted outdoors using Vaisala installation kit and Vaisala Radiation Shield DTR502B.
Fit for demanding measurement needs
Vaisala delivers advanced HVAC transmitters that empower automation systems to perform flawlessly in the most demanding environments, from data centers and semiconductor fabs to cleanrooms, hospitals, and other critical spaces, ensuring precise, reliable measurements where they matter most.
Our transmitters offer superior reliability, easy installation, and seamless integration with major Building Automation and Building Management Systems. The comprehensive product range includes temperature, humidity, air pressure, dew point, and CO₂ for ambient air, pipes, ducts, and outdoor applications.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
HMT130
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
High Precision
Humidity measurement with Vaisala HUMICAP® 180R humidity sensor comes with state-of-the-art precision, stability and environmental resistance. Temperature is measured with a highly accurate Pt1000 sensor element.
Stability - Reliability
The high quality and excellent stability of the measurements enables precise and reliable controls of HVAC systems, even in demanding conditions or sites.
Traceable Accuracy
The instruments are individually adjusted and delivered with a traceable (ISO 9001) calibration certificate. The humidity transmitter is easy to calibrate also on site using a Vaisala handheld meter or Vaisala Insight PC software.
Documents
- DatasheetHUMICAP Humidity and Temperature Transmitters HMT120 and HMT130 Datasheet B211086EN-M HUMICAPâ Humidity and Temperature Transmitters HMT120 and HMT130 Features • Accurate and reliable measurement with Vaisala HUMICAPâ humidity sensor technology • Interchangeable probe, easy field calibration...
- User guideThis document provides instructions for installing, using, maintaining, and troubleshooting the Vaisala HMT130 Humidity and Temperature Transmitter.
