LTI-WM-WiFi

LTI-WM-WiFi Interface Cradle

Upload data in real time via WiFi

Request a quoteDownload the datasheet

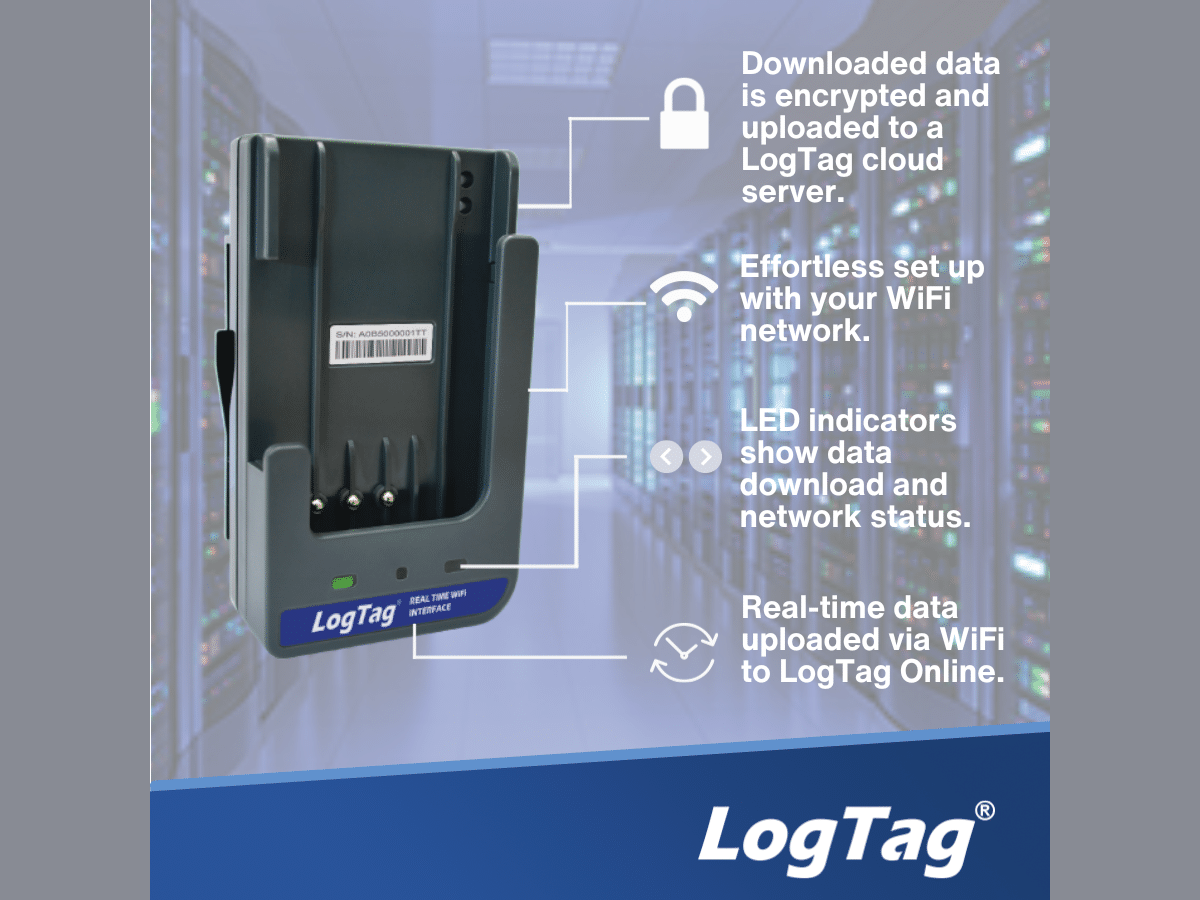

LTI-WM-WiFi Interface Cradle

Highlights

  • Use LTI-WM-WiFi to upload data in real time without access to a computer and installed software.
  • Downloaded data is fully encrypted and automatically uploaded to a secure server.
  • Easily set up to work with your WiFi network.
  • Accepts any TREX/TREL/TRED data loggers.
LTI-WM-WiFi Interface Cradle

Overview

The new LogTag Wall Mounted Wireless Interface Cradle is a high-speed interface device that connects TREX/TREL/TRED data logger (not compatible with TRED CP and U versions) to your WiFi network for real-time data download to a cloud platform.

Technical Data

Product ModelLTI-WM-WIFI
Recorder Operating Temperature Range-25 °C to +40 °C
Storage Temperature Range-40 to +70 °C
EnvironmentalIP50 (Rated for inside use only)
Power source5 V/5 W (Computer or USB wall charger)
Connection InterfaceUSB Micro
Size(W)70 mm (H)114 mm (D)38 mm
Weight100 g
Case MaterialABS
USB Standard2.0
Accessories2.0 m USB Cable
CertificationsFCC, CE & RoHS Compliant
Logger bufferUp to 45 Logger downloads can be buffered
WiFi2.4GHz 802.11 b/g/n. High sensitivity internal antenna
Network SecurityWPA/WPA2-PSK
Range (Clear Line of Sight)>=40 m

Receive real-time notifications with LogTag Online

LogTag Online is a secure, cloud-based application for managing & sharing your temperature data via a role-based permission system. A wide range of features include: real-time alarm notifications; location monitoring; temperature logs and troubleshooting records. No installed software is required and LogTag Online is accessible via any internet-enabled device.
