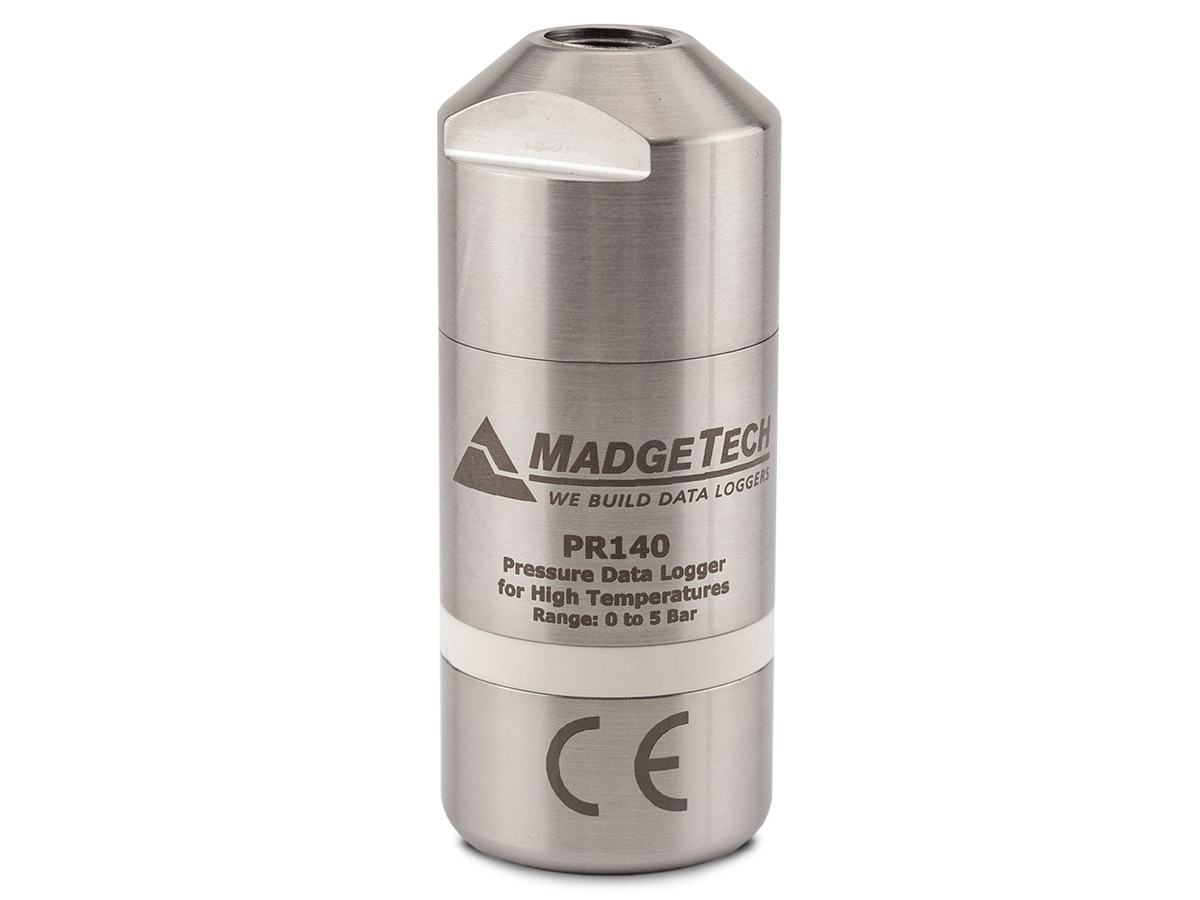

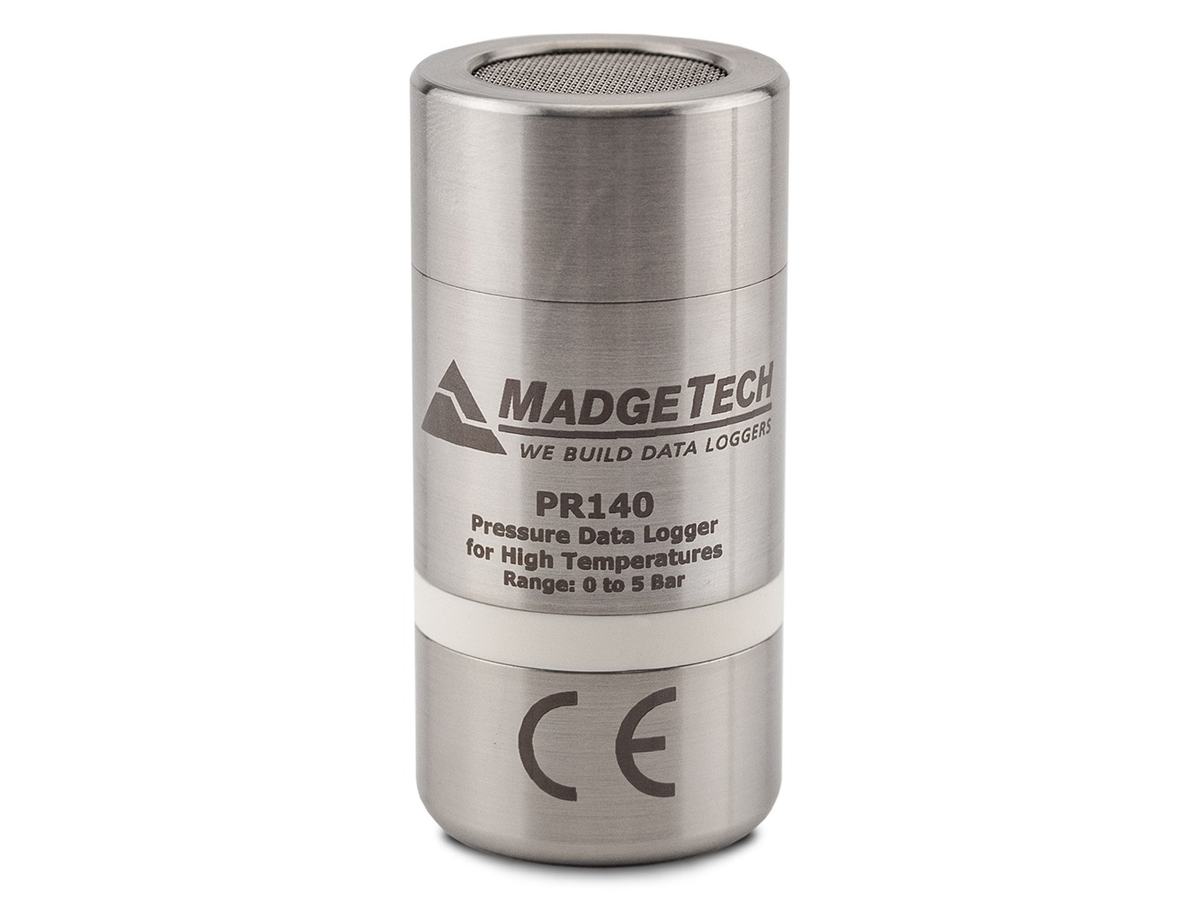

PR140
The PR140 is a pressure data logger for high temperature applications. Includes ISO17025 accredited calibration certificate.
Request a quoteDownload the datasheet

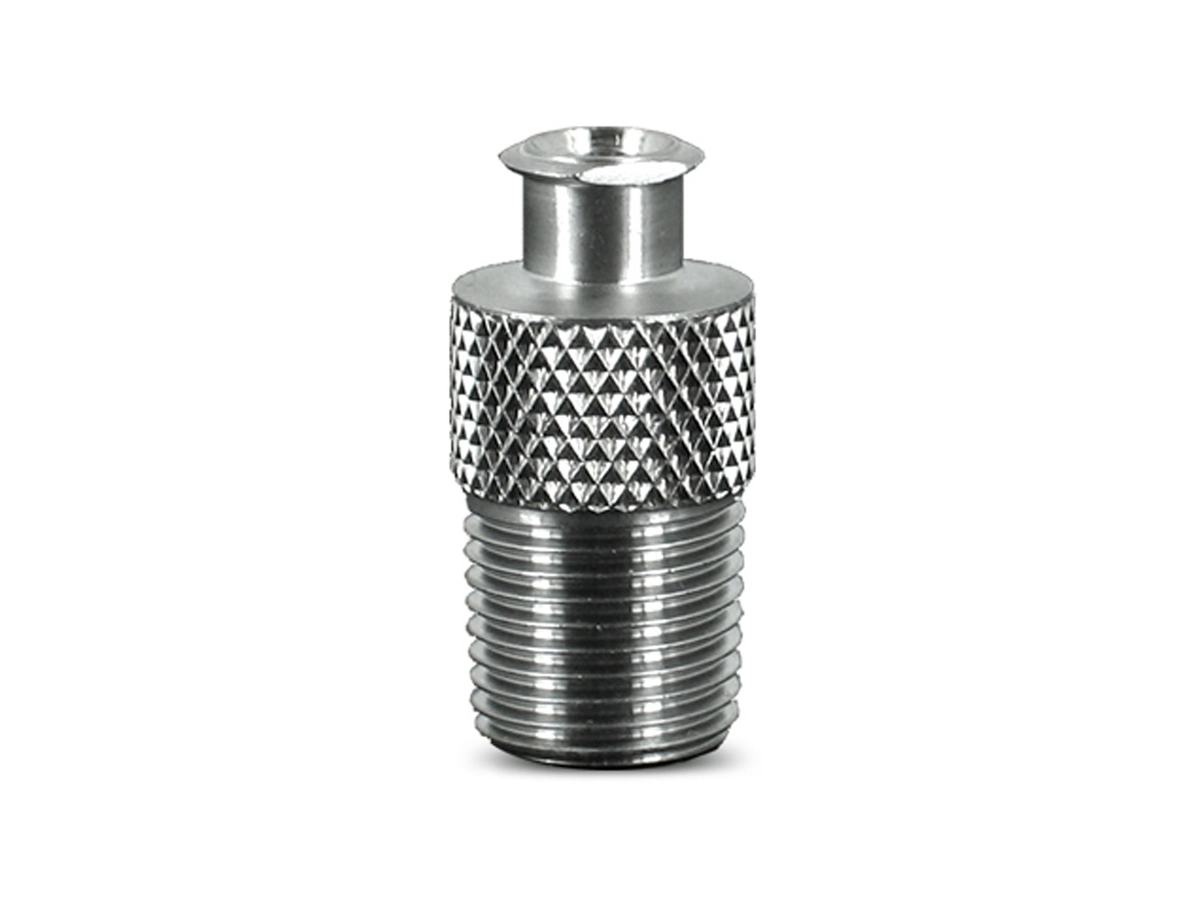

The PR140 is a pressure data logger designed for use in high temperature applications. This device is completely submersible (IP68) and is available with a 1/8-27 NPT pressure port top, allowing it to connect with a variety of fitting and adapters.
The PR140 can withstand temperatures up to +140 °C (+284 °F) with an accuracy of up to ±0.03 Bar (±0.435 PSI). The PR140 can be programmed to take measurements as often as once per second (1 Hz) and can store up to 32,256 readings.
The PR140 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 32,256 readings |
|---|---|
| Reading Rate | 1 second to once every 24 hours, selectable in software |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate at 25 °C / 77 °F); Fast reading intervals and extreme temperatures will shorten the battery life substantially |
| Material | 316 Stainless Steel, Radel |
| Dimensions | 2.29 in x 1.0 in dia. (58.2 mm x 25.4 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -20 °C to +140 °C (-4 °F to +284 °F), 0 %RH to 100 %RH; Note: The PR140 may be used above +60 °C for up to 8 hours, per 24 hour period. |
| Approvals | CE |
| Pressure Sensor | Semiconductor Strain Gauge |
|---|---|
| Pressure Range | 0 to 5 Bar (0 to 72.5 PSIA) |
| Pressure Resolution | 0.0001 bar (0.00145 PSIA) |
| Pressure Calibrated Accuracy | ±0.03 bar from +20 °C to +140 °C (+68 °F to +284 °F); ±0.1 bar from -20 °C to +19.99 °C (-4 °F to +68 °F) |
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
A code can be pasted and the configuration builds itself.
They are quoted separately: the instrument need not be configured.
Versatile stand for use with the HiTemp140, PRTemp140, PR140, Temp1000 and RHTemp1000 series of data loggers.
One set of replacement o-rings for the HiTemp140, RHTemp1000, PR140, PRTemp140 PR1000.
Magnetic Holder for use with the PR140, PRTemp140, HiTemp140, Temp1000, and RHTemp1000 Series Data Loggers.
Versatile mount or stand for use with the HiTemp140 series of data loggers.
