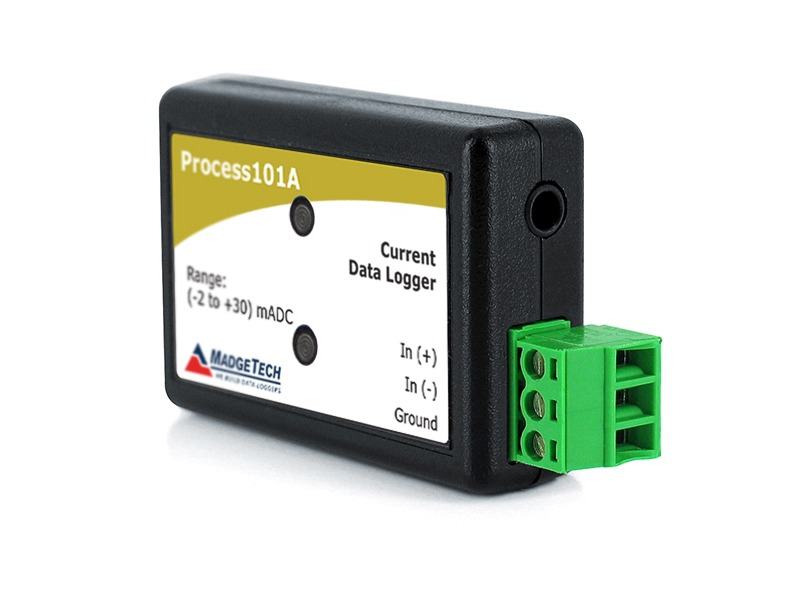

Process101A-3A
Process101A (Process101A-3A)
The Process101A is a compact, low level DC current data logger. Includes standard calibration certificate.
Request a quoteDownload the datasheet
Key Features
- Compact Size
- Configurable Alarms
- Available in 3 Measurement Ranges
Description
The Process101A is a compact data logger that measures and records low-level DC currents. Available in 3 measurement ranges (30 mA, ±160 mA and ±3 A), the Process101A offers a 10-year battery life, ideal for long-term deployments.

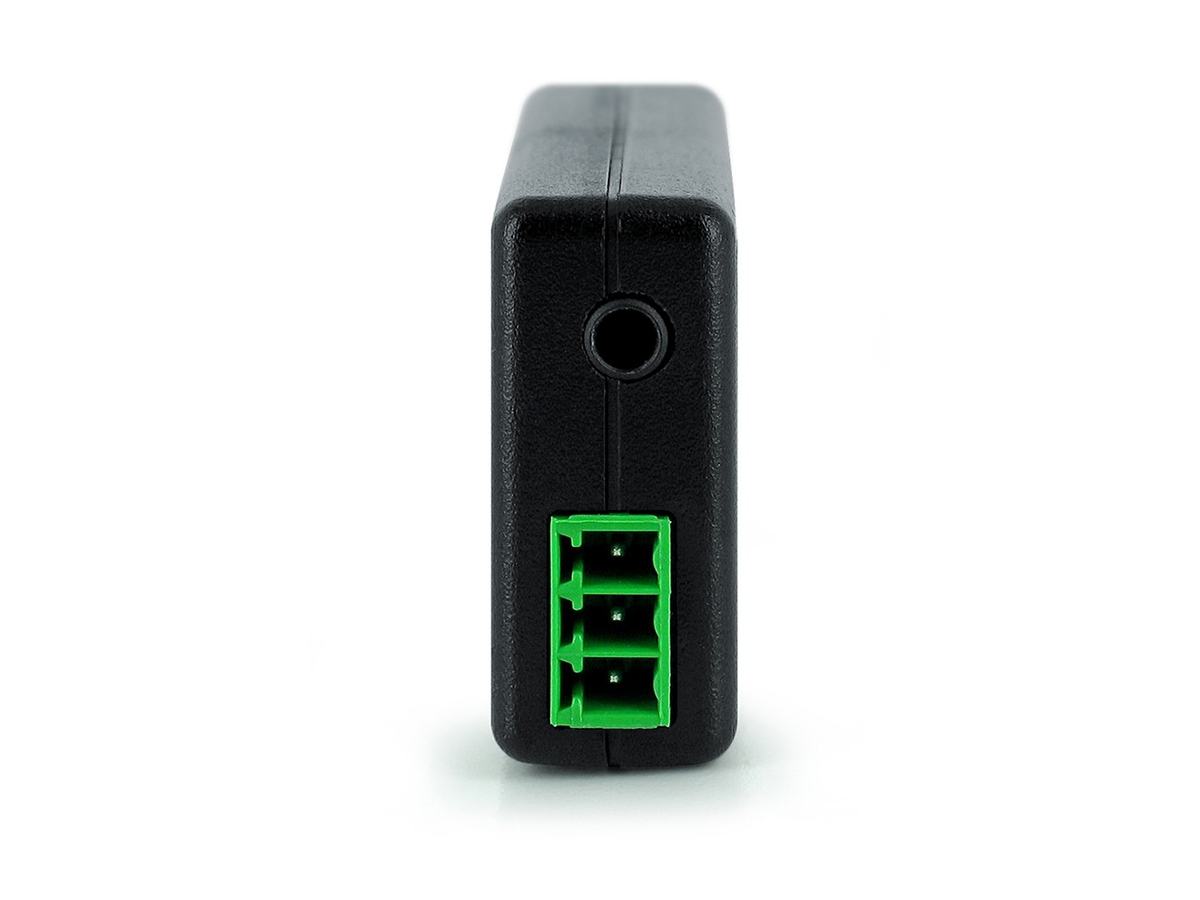

The Process101A features a 4 Hz reading rate and storage capacity of 2,095,104 readings. Equipped with multiple start/stop modes, the Process101A can be programmed to start up to 18 months in advance and has user-specified high/low alarms. Its screw terminal block is designed to easily connect and disconnect to the logger body, while keeping the wiring to the terminal block.
The Process101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
General
| Memory | 2,095,104 readings |
|---|---|
| Reading Rate | 4 Hz to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Battery Life | 10 year battery life typical, at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
Current
| Current Range | 30 mA: -2 to 30mA; ±160 mA: ±160 mA; ±3 A: ±3 A |
|---|---|
| Max Voltage: Inputs & Ground | 0 to 2.5 V |
| Current Resolution | 30 mA: 0.5 μA; ±160 mA: 5 μA; ±3 A: 100 μA |
| Current Calibrate Accuracy | 30 mA, 160 mA: ±0.05 %FSR; 3 A: ±0.15 %FSR |
| Current Input Impedance | 30 mA: 10 Ω, ±1%; ±160 mA: 1 Ω, ±1 %; ±3 A:<0.05 Ω |
