SPMK150

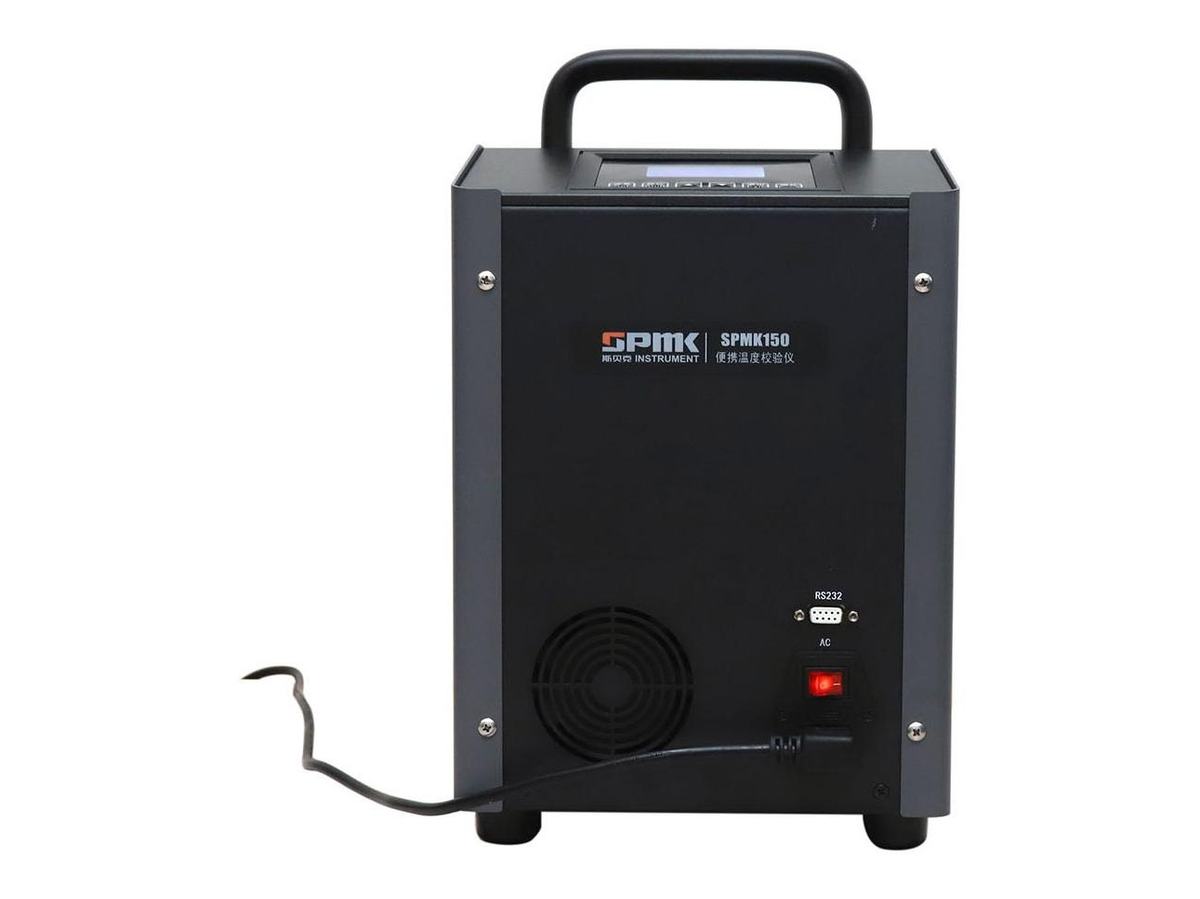

SPMK150 Temperature Calibrator

The BCLog-Control portable temperature calibrator is a high-performance and convenient temperature calibration tool designed to meet the needs of instrument workshops, metrology rooms, and calibration laboratories.It features a thermally stable block made from aerospace-grade alloy materials, ensuring rapid temperature changes and stable temperature control performance, enabling users to efficiently complete temperature calibration tasks.

Request a quote

SPMK150 Temperature Calibrator
  • Temperature range: (-30~155)℃

Overview

The instrument is equipped with a large screen display with high brightness and backlight, which is easy to operate, and users can easily read and monitor temperature data.

It can effectively calibrate temperature components such as thermocouples, platinum resistors, temperature transmitters, temperature switches and other temperature instruments. It is an ideal calibration instrument for process control instruments to help users ensure the accuracy and reliability of equipment.

Feature

  • (-30~155)℃,With 6 digits display;

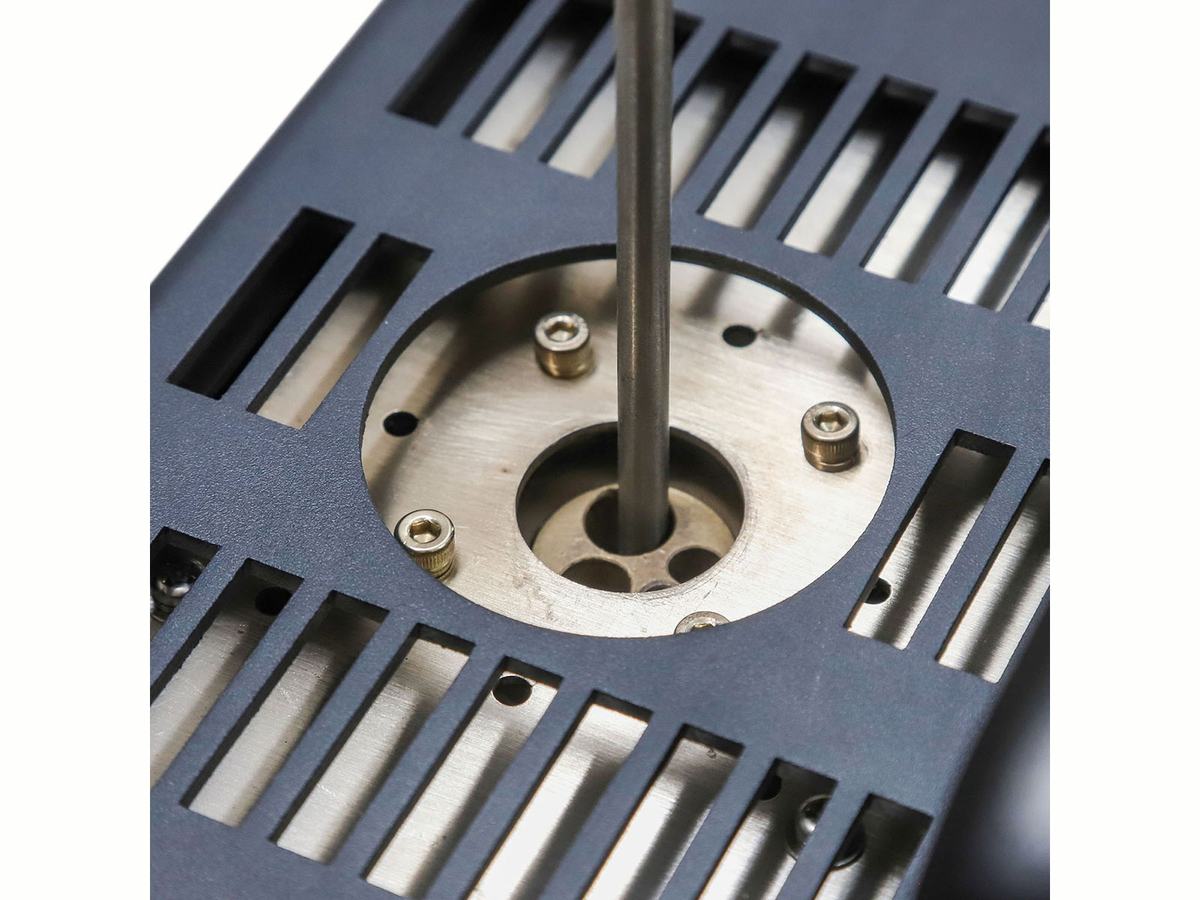

  • The soaking block is replaceable and customized;
  • Digital temperature control, fast cooling and heating with good stability;
  • Dry Block has a series of protection functions such as built-in load short circuit, load disconnection, and sensor protection;
  • Portable and easy to carry without any pollution.
SPMK150 Temperature Calibrator

Technical Data

Temperature Range(-30~155)℃ or (-40~155)℃; (Ambient temperature25℃)
Deviation±0.15℃
Display Resolution0.001℃
Insert Depth170mm
Diameter of Thermal BlockØ25mm
Standard block insertion diameterØ6、Ø8、Ø10mm / customized
Temperature difference between holes≤±0.05℃
Axial temperature fieldTemperature change within 20mm from the bottom of the block insertion≤0.5℃
Temperature fluctuation≤±0.03℃/15mins
Dimension(410×235×410) mm
Net Weight15.5kg
Power0.45kW
Working environmentThere is no corrosive gas, flammable and explosive gas around
Working temperature(0 ~ 50)℃
Relative humidity<90% no condensation
Power supply220VAC
AccessoriesUser manual, Charger
