SPMK223

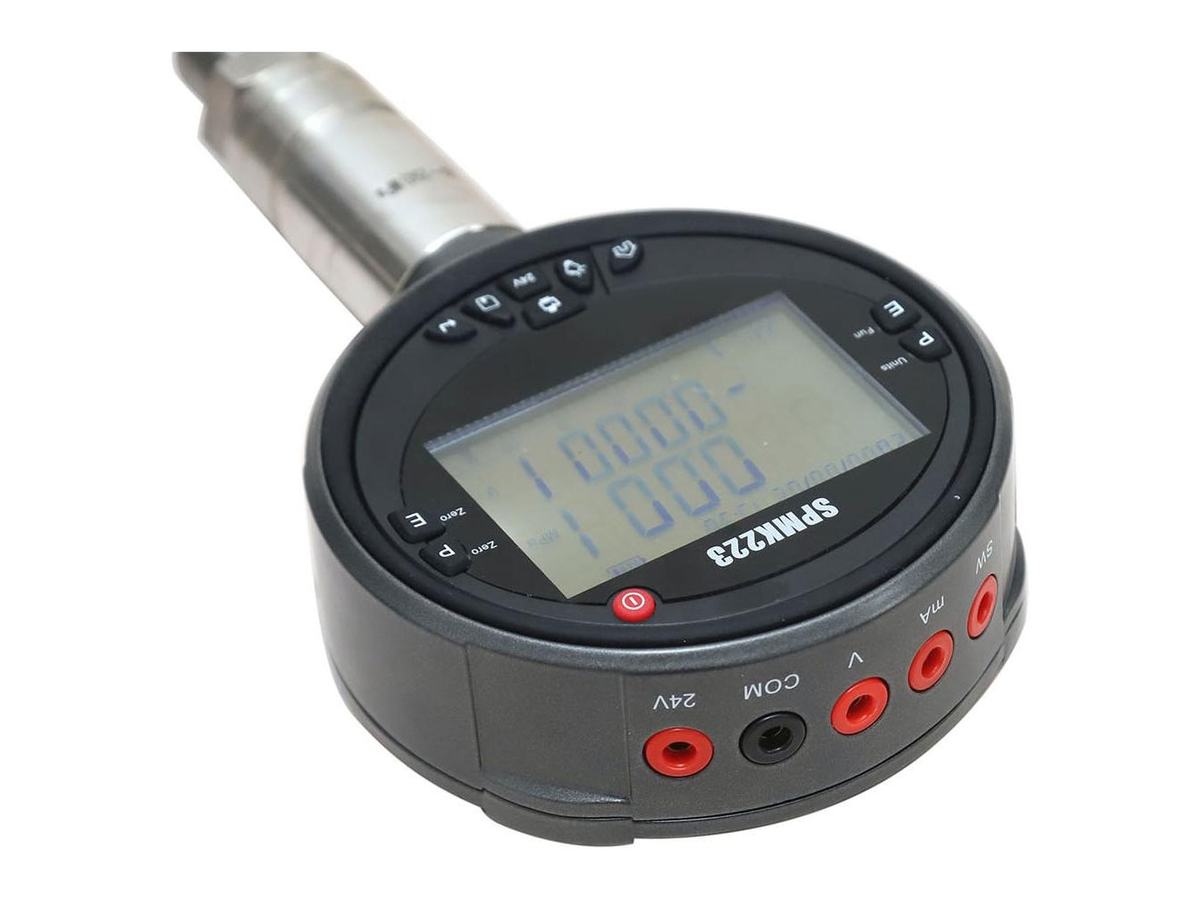

SPMK223 Pressure Calibrator (0.05%F.S 0.1%F.S)

SPMK223 intelligent digital pressure calibrator is a powerful pressure calibrator with high accuracy, which is mainly used to calibrate pressure (differential pressure) transmitter, ordinary (precision) pressure gauge, pressure switch, other pressure instruments.

Request a quote

SPMK223 Pressure Calibrator (0.05%F.S 0.1%F.S)
  • ±0.02%FS or ±0.05%FS or ±0.1%FS
  • Pressure ranges up to 2,500bar (36,000psi), refers to range select table.

Overview

The SPMK223 not only has stable performance and fast response time, but also supports a variety of pressure unit conversion, which greatly facilitates the use of users in different application scenarios.

Feature

  • Six digits resolution display switch;
  • Storage 40 files,40 data per file;
  • Percentage bars indication for visual reference;
  • RS232 interface to connect with computer for datalogger;
  • HART Communication to calibrate HART Pressure transmitter with 24V supply;
SPMK223 Pressure Calibrator (0.05%F.S 0.1%F.S)

Specifications

Pressure rangeUp to 2,500bar (36,000psi)
Accuracy±0.02%FS or ±0.05%FS or ±0.1%FS accuracy
ConnectionM20*1.5, 1/4NPT, 1/4BSP, 1/2NPT, 1/2BSP Male.
Current MeasureRange (-30～30)mA; Accuracy ±(0.01%RD+0.003%FS)
Voltage MeasureRange (-30～30)V; Accuracy ±(0.01%RD+0.003%FS)
TemperatureRange (0～50)℃; Accuracy ±1℃
DC24V output(24±0.5) V, max 50mA
11 pressure units availablekg/cm2, inHg, inH2O, Pa, kPa, MPa, bar, mbar, psi, mmHg, mmH2O
Pressure typesGauge pressure, absolute pressure, differential pressure, compound pressure
Working temperature(0 ~ 50)℃ with temperature compensation
Relative humidity<90% no condensation
Power Supply7.4V rechargeable lithium battery, AC adapter
DimensionHeader (Ø120× 45) mm, total length 190mm

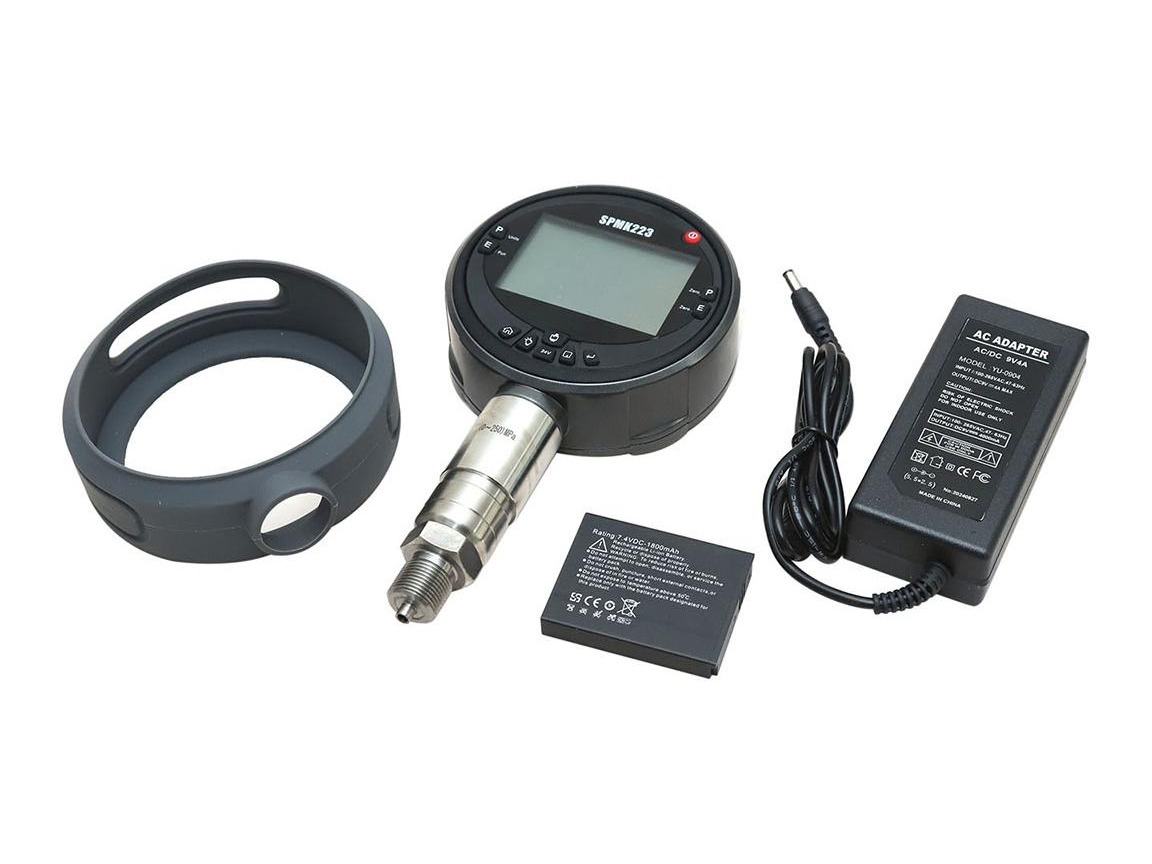

AccessoriesUser manual, Battery, Charger
