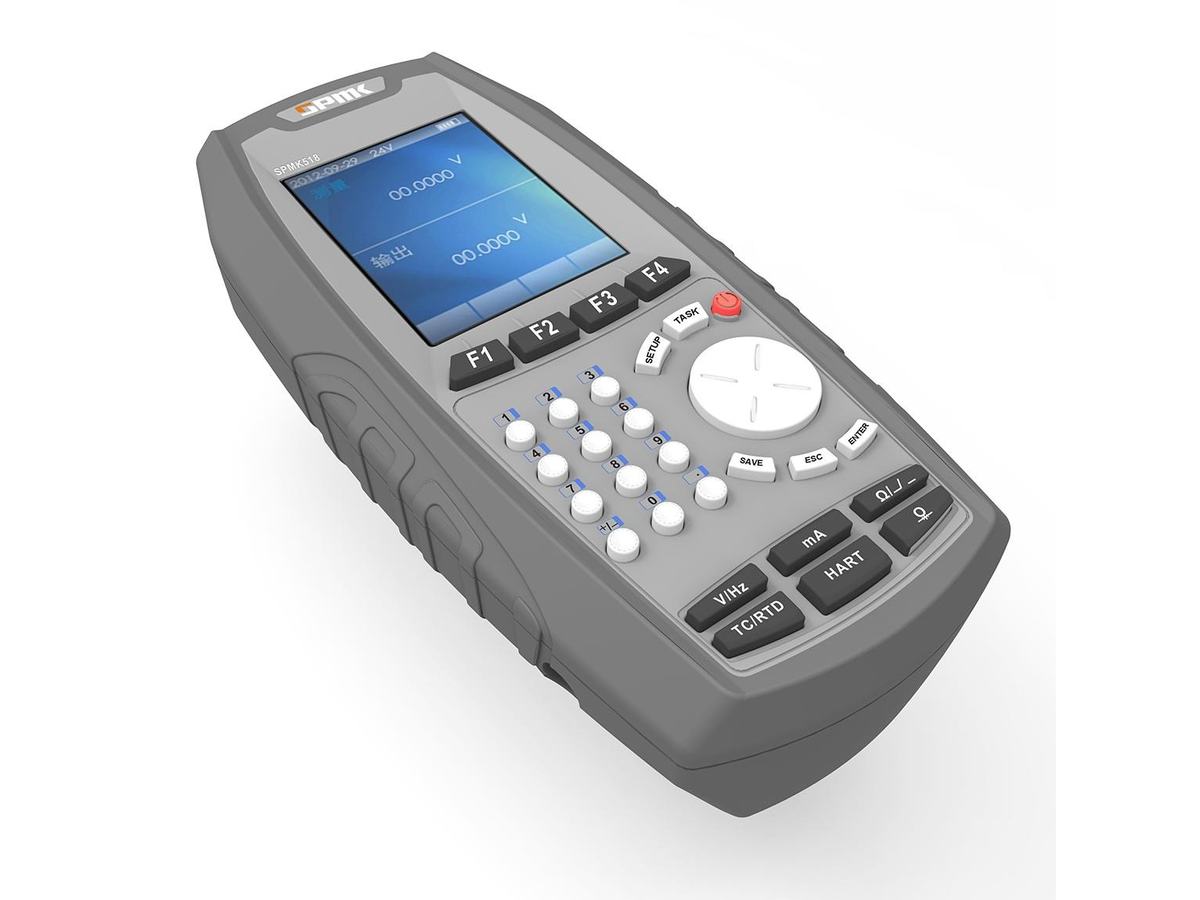

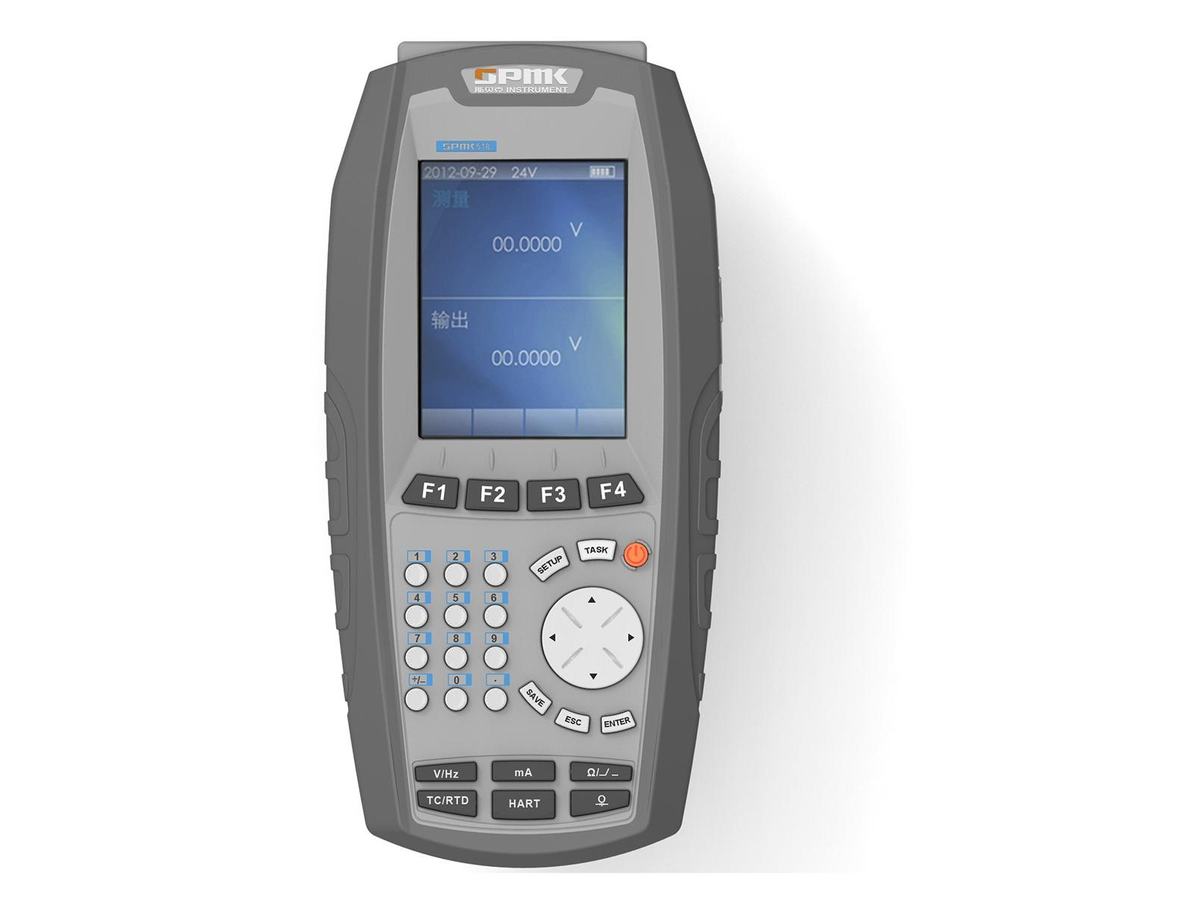

SPMK516
Calibrate temperature, voltage, current, frequency, pulse, resistance. Both measurement and output/simulation functions.
Powerful functions
Measurement and simulation functions
Measures 13 types of thermocouples and 11 types of RTDs and provides analog output with cold end compensation.
Data storage functions
No need to worry about data loss. Supports output methods such as step or program
Built-in HART communication function
It can calibrate and maintain HART-type instruments, and realize functions such as, range migration, zero point and full-scale calibration (only for 516 and 518)
Support external pressure modules
Connect with BCLog-Control SDP external Pressure module (only for SPMK517 and SPMK18)
Task management function
Analog transmitters
Generate precise electrical, temperature or pressure
signals.
Provides a wide range of commonly used tools
Thermal engineering treasure trove, user-built RTD library, temperature and pressure unit conversion.
Automatic cold-end compensation technology
Built-in cold end insulation module for fast tracking of temperature changes.
3.5-inch high-resolution TFT display
Chinese and English languages switch
RS232 interface and open communication protocol
Provide a 24 VDC loop power supply with measurement and output isolated from each other
| Function | SPMK510 | SPMK516 | SPMK517 | SPMK518 |
|---|---|---|---|---|
| Measurement — Millivolts | ★ | ★ | ★ | ★ |
| Voltage | ★ | ★ | ★ | ★ |
| Current | ★ | ★ | ★ | ★ |
| Frequency | ★ | ★ | ★ | |
| Pulse | ★ | ★ | ★ | |
| Resistance | ★ | ★ | ★ | |
| On-off | ★ | ★ | ★ | ★ |
| 11 RTDs | ★ | ★ | ★ | |
| 13 thermocouples | ★ | ★ | ★ | |
| Simulation — Millivolt current | ★ | ★ | ★ | ★ |
| Output — Voltage | ★ | ★ | ★ | ★ |
| Current | ★ | ★ | ★ | ★ |
| Frequency | ★ | ★ | ★ | |
| Resistance | ★ | ★ | ★ | |
| Simulate 11 RTDs | ★ | ★ | ★ | |
| Simulate 13 thermocouples | ★ | ★ | ★ | |
| Other Functions — HART communication | ★ | ★ | ||
| External pressure module① | ★ | ★ | ||
| Thermal book | ★ | ★ | ★ | |
| Step programming output | ★ | ★ | ★ | ★ |
| 24V loop current | ★ | ★ | ★ | ★ |
| Simulating transmitter | ★ | ★ | ★ | |
| RS232 communication | ★ | ★ | ★ | ★ |
| Storage | ★ | ★ | ★ | ★ |
Note:SPMK510 millivolt voltage measurement and output range is wider Measurement range (-200~200)mV，Output range (-10~200)mV，
Loop integrity test range (0~2000)Ω
① External pressure module means SDP Modular Intelligent Digital Pressure Calibrator produced by our company.
Electrical Signal Measurement Specifications (Ambient Temperature(20±5)°C, 1 yearAccuracy)
| Signal | Range | Accuracy | Resolution |
|---|---|---|---|
| Current | (-30-30)mA | ±(0.01%RD+0.005%FS) | 0.l µA |
| Voltage | (-30-30)V | ± (0.01%RD+0.005%FS) | 0.l mV |
| millivolts | (-75-75)mV | ± (0.01%RD+0.005%FS) | 0.l µV |
| Resistance — R-3W | (0-400)Ω | ± (0.02% RD + 0.005% FS) | 1mΩ |
| (0-4000)Ω | 10mΩ | ||
| R-4W | (0-400)Ω | ± (0.01% RD + 0.005% FS) | 1mΩ |
| (0-4000)Ω | 10mΩ | ||
| Frequency | (1-50000)Hz | ± (0.005% RD + 0.002% FS) | 1Hz |
| Pulse | 0-999999 | 1 pulse of earth | 1 |
| Switch (on/off) | If the switch is equipped with an inspection voltage, the voltage range is (3~24)V | ||
| Thermocouples | k、E、J、T、N、R、S、B、C、D、G、L、U | ||
| RTDs | Pt1000(385)、Pt500(385)、Pt100(385)、Pt100(3916)、Pt100(3926)、 Pt10(385)、Cu10(427)、Cu50(428)、Cu100(428)、Ni120(672)、Ni100(618) | ||
| Pressure Function | Refer to the Pressure Range Selection Chart (SPMK518, SPMK517 only). |
Electrical Output Specifications (Ambient Temperature (20±5)℃，1 year accuracy)
| Signal | Range | Accuracy | Resolution |
|---|---|---|---|
| Current | (0-22)mA | ±(0.02% RD + 0.005% FS) | 0.1μA |
| Voltage | (0-12)V | ±(0.02% RD + 0.005% FS) | 0.1mV |
| Millivolts | (-10-100)mV | ±(0.02% RD + 0.005% FS) | 0.1μV |
| Resistance | (0-400)Ω | ±(0.02% RD + 0.005% FS) | 1mΩ |
| (400-4000)Ω | ±(0.03%RD+0.01%FS) | 10mΩ | |
| Frequency | (0-50000)Hz | ±(0.005% RD + 0.002% FS) | 0.lHz |
| Pulse | 0-999999 | ±1pcs | 1 |
| 24VDC | (24±0.5)V Maximum belt load 50mA | ||
| Simulating Thermocouple | k, E, J, T, N, R, S, B, C, D, G, L, U | ||
| Simulating RTDs | Pt1000(385)、Pt500(385)、Pt100(385)、Pt100(3916)、Pt100(3926)、Pt10(385)、Cul0(427)、Cu50(428)、Cu100(428)、Ni120(672)、Ni100(618) |
Measuring and Simulating thermocouple output temperature specifications using thermocouples (ambient temperature (20±5)℃)
| Thermocouple type | Reference | Temperature range (℃) | Tolerance temperature range (℃) | Maximum permissible error (℃) — Measurement | Maximum permissible error (℃) — Output |
|---|---|---|---|---|---|
| Type K | IEC584 | -270~1372 | -200~-100 | ±0.4 | ±0.6 |
| -100~600 | ±0.3 | ±0.3 | |||
| 600~1372 | ±0.4 | ±0.5 | |||
| Type E | IEC584 | -270~1000 | -200~-100 | ±0.3 | ±0.4 |
| -100~600 | ±0.2 | ± 0.2 | |||
| 600~1000 | ±0.2 | ±0.4 | |||
| Type J | IEC584 | -210~1200 | -210~-100 | ±0.3 | ±0.4 |
| -100~1200 | ±0.3 | ±0.3 | |||
| Type T | IEC584 | -270~400 | -200~0 | P0.4 | S0.5 |
| 0~300 | ±0.2 | ±0.3 | |||
| 300~400 | ±0.2 | ±0.2 | |||
| Type N | IEC584 | -270~1300 | -200~-100 | ±0.5 | ±0.6 |
| -100~1300 | ±0.4 | ±0.5 | |||
| Type R | IEC584 | -50~1768 | -50~100 | ±1.4 | ±1.5 |
| 100~500 | ±0.6 | ±0.7 | |||
| 500~1768 | ±0.7 | ±0.7 | |||
| Type S | IEC584 | -50~1768 | -50~100 | ±1.1 | ±1.2 |
| 100~400 | ±1.0 | ±1.1 | |||
| 400~1768 | ± 0.7 | ±0.8 | |||
| Type B | IEC584 | 0~1820 | 0~450 | ±3.8 | ±3.8 |
| 450~800 | ± 0.9 | ±1.0 | |||
| 800~1200 | ±0.6 | ± 0.7 | |||
| 1200~1820 | ±0.6 | ±0.8 | |||
| Type C | ASTM E988 | 0~2315 | 0~1000 | ±0.6 | ±0.7 |
| 1000~1800 | ±0.8 | ±1.0 | |||
| 1800~2315 | ±1.2 | ±1.5 | |||
| Type D | ASTM E988 | 0~2315 | 0~100 | ±0.6 | ±0.6 |
| 100~1100 | ±0.5 | ±0.6 | |||
| 1100~2000 | ±0.8 | ±1.0 | |||
| 2000~2315 | ±1.0 | ±1.4 | |||
| Type G | ASTM E1751 | 0~2315 | 0~200 | ±2.4 | ±2.5 |
| 200~400 | ±0.5 | ±0.6 | |||
| 400~1400 | ±0.4 | ±0.6 | |||
| 1400~2315 | ±0.8 | ±1.0 | |||
| Type L | DIN43710 | -200~900 | -200~-100 | ±0.3 | ±0.5 |
| -100~400 | ±0.2 | ±0.3 | |||
| 400~900 | ±0.5 | ±0.6 | |||
| Type U | DIN43710 | -200~600 | -200~0 | ±0.5 | ±0.4 |
| 0~600 | ±0.3 | ±0.5 |
Note: Thermocouple type C is WRe5-WRe26, Thermocouple type D is WRe3-WRe25. Measuring and Simulating RTD output temperature specifications using RTDs (ambient temperature(20±5)°C)
| Thermocouple type | Reference | Temperature range (℃) | Tolerance applicable temperature range (℃) | Maximum permissible error (℃) — Measurement — 3W | Maximum permissible error (℃) — Measurement — 4W | Maximum permissible error (℃) — Output |
|---|---|---|---|---|---|---|
| Pt1000（385） | IEC751 | -200~850 | -100~200 | ±0.13 | ±0.08 | ±0.29 |
| 200~600 | ±0.24 | ±0.13 | ±0.45 | |||
| 600~840 | ±0.32 | ±0.19 | ±0.56 | |||
| Pt500（385） | IEC751 | -200~850 | -100~200 | ±0.22 | ±0.16 | ±0.35 |
| 200~600 | ±0.35 | ±0.22 | ±0.56 | |||
| 600~850 | ±0.39 | ±0.28 | ±0.69 | |||
| Pt100（385） | IEC751 | -200~850 | -100~200 | ±0.18 | ±0.14 | ±0.18 |
| 200~600 | ±0.27 | ±0.18 | ±0.27 | |||
| 600~850 | ±0.36 | ±0.29 | ±0.36 | |||
| Pt100（3926） | Minco Application Aid #18 | -200~850 | -100~200 | ±0.18 | ±0.14 | ±0.18 |
| 200~600 | ±0.27 | ±0.18 | ±0.27 | |||
| 600~850 | ±0.36 | ±0.29 | ±0.33 | |||
| Pt100（3916） | JIS1604 | -200~850 | -100~200 | ±0.18 | ±0.14 | ±0.18 |
| 200~600 | ±0.27 | ±0.18 | ±0.27 | |||
| 600~850 | ±0.35 | ±0.29 | ±0.35 | |||
| Pt10（385） | IEC751 | -200~850 | -100~200 | ±0.68 | ±0.64 | ±0.68 |
| 200~600 | ±0.85 | ±0.82 | ±0.85 | |||
| 600~850 | ±0.98 | ±0.89 | ±0.98 | |||
| Cu100（428） | JB/T8623—1997 | -50~150 | -50~150 | ±0.15 | ±0.10 | ±0.16 |
| Cu50（428） | JB/T8623—1997 | -50~150 | -50~150 | ±0.19 | ±0.17 | ±0.20 |
| Cu10（427） | Minco Application Aid #18 | -100~260 | -100~260 | ±0.65 | ±0.58 | ±0.65 |
| Ni120（672） | Edison curve #7 | -70~270 | -70~270 | ±0.08 | ±0.06 | ±0.08 |
| Ni100（618） | DIN43760 | -70~190 | -70~190 | ±0.10 | ±0.07 | ±0.10 |
| Display | 6-digit display |
|---|---|
| Usage environment | Ambient temperature (-10～50)°C; Relative humidity <90% non-condensing; Atmospheric pressure(86～106)kPa.a |
| Storage environment | Ambient temperature(-20～60)℃; Relative humidity <90% non-condensing |
| Power supply mode | AC and DC power supply (battery power is recommended for good measurement and output) |
| Overall dimensions | 208mm(L)x101mm(W)x55mm(H) |
| Weight | 0.7kg |

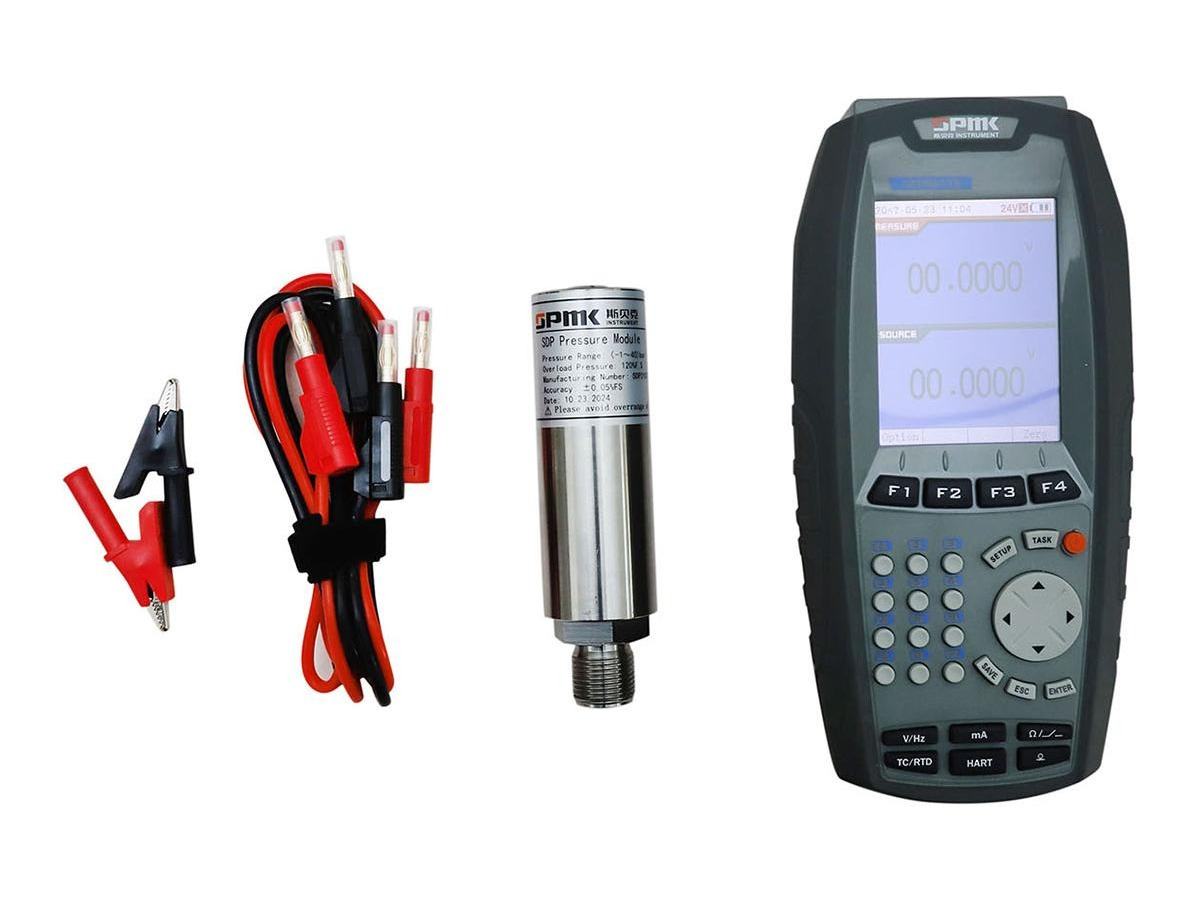

SPMK510/ SPMK516/SPMK517/SPMK518 multifunction calibrators.
| Description | QTY |
|---|---|
| Mainframe | 1 pc |
| Power Adapter | 1 pc |
| Lithium battery | 1 pc |
| 1 red meter pen cable, 1 black meter pen cable, 1 red Tsubagi clip,1 black Tsubagi clip | 3 set |
| Seven-core signal cable (Only for SPMK517, SPMK518) | 1 pc |
| K-type compensation conductorL- (Only for SPMK516, SPMK517, SPMK518) | 1 pc |
| Dedicated short routes | 1 pc |
| User’s Manual | 1 pc |
| Description |
|---|
| BCLog-Control SDP external pressure module |
| (Only for SPMK517, SPMK518) |
| BCLog-Control SDP external pressure module test report |
| Cold End Compensation Assembly |
| (Optional E, Person T, N, R, S, B, C, D, G, L, U) |
