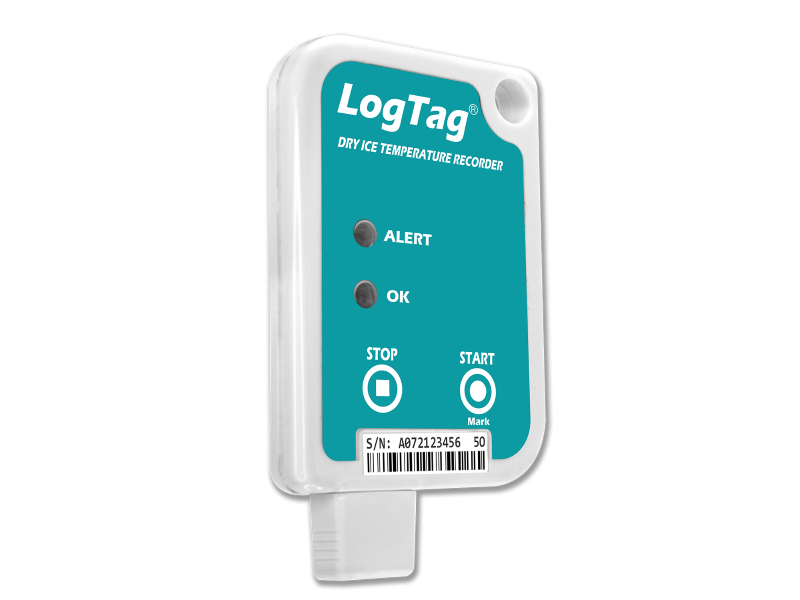

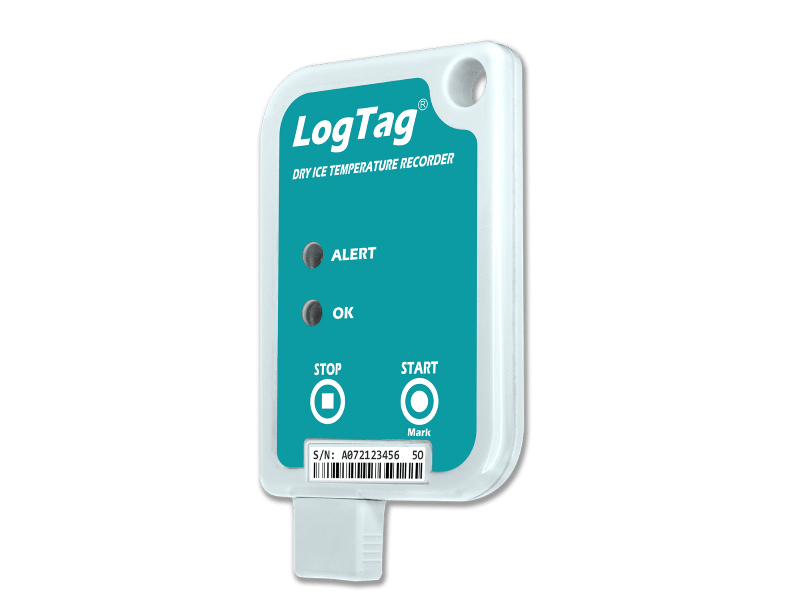

LogTag SRIL-16U
Single-use - built-in USB, software-free PDF- and CSV generation
Request a quoteDownload the datasheet
Highlights
- Built-in USB
- Software-Free Downloads
- Extended Data Storage Capacity: Ensures reliable monitoring for up to 90 days, 16,000 readings.
- At A Glance Monitoring: LED indicators provide immediate visual alerts for temperature excursions, enabling prompt action.
- Rugged, Compact Design: Designed for durability and portability, ideal for challenging environments like dry ice transport or life sciences.
Overview
Introducing LogTag®‘s latest innovation in ultra-low temperature monitoring, designed for professionals who require precise, reliable monitoring across the cold chain.

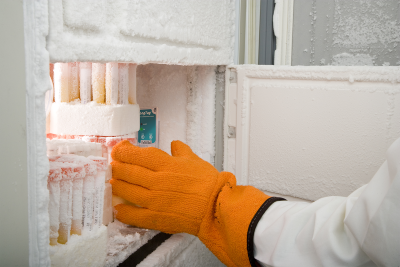

The compact, reliable and versatile SRIL-16U is the ideal solution for monitoring products stored in ultra-low temperature environments, including transport packaging with dry ice.

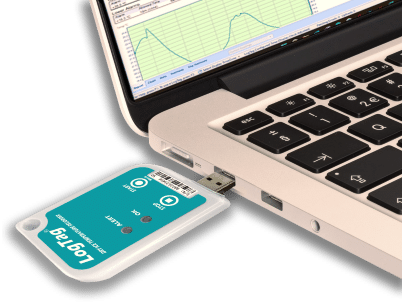

The SRIL-16U features a new, integrated USB port for software-free downloads, allowing seamless integration into any workflow. Simply connect the SRIL-16U to a computer to automatically generate PDF or CSV reports - no software or cradles required.
The free LogTag software LogTag Analyzer enables advanced configurations and bulk setups while providing a central location for data analysis, ensuring complete control over your monitoring process.
Technical Data
| Product Model | SRIL-16U |
|---|---|
| Temperature Sensor Measurement range | -85 °C to +40 °C |
| Storage Temperature Range | -20 °C to +40 °C |
| Rated Temperature Reading Accuracy | Better than ±1 °C (±1.8 °F) for -30 °C to +20 °C (-22 °F to +68 °F). Better than ±1.2 °C (±2.1 °F) for -45 °C to -30 °C (-49 °F to -22 °F) and +20 °C to +40 °C (+68 °F to +104 °F). Better than ±1.7 °C (±3.1 °F) for -80 °C to -45 °C (-112 °F to -49 °F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | Less than 0.1 °C (0.2 °F) for -80 °C to 0 °C (-112 °F to +32 °F). Less than 0.2 °C (0.4 °F) for 0 °C to +20 °C (+32 °F to +68 °F). Less than 0.5 °C (0.9 °F) for +20 °C to +40 °C (+68 °F to +104°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 16,000+ temperature readings. 90 days @ 10min logging |
| Sampling Interval | Configurable from 1 minute to several hours |
| Logging Start Options | Push button start or specific date and time |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator |
| Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used |
| Environmental | IP65 (roughly equivalent to NEMA 4) |
| Power source | 3.6V low temperature chemistry Lithium battery (Fixed) |
| Battery Life | Maximum storage life of 1 year before ‘start’ (if it is in hibernation mode); Single use version rated for a typical trip of 2 weeks duration at dry ice temperatures. |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25 °C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (i.e. typically +/- 0.00294 seconds/day/°C). |
| Size | 86 mm(H) x 54.5 mm(W) x 8.6 mm(T) |
| Weight | 33 g |
| Case Material | Polycarbonate |
