TR-55i-Pt
T&D TR-55i-Pt
Compact Pt100/Pt1000 Temperature Logger with On-Face LED Alarm
Request a quoteDownload the datasheet
Overview
With dimensions of 62 x 47 x 19mm (2.4 x 1.8 x 0.75in) TR-5i series loggers may be small, but they are built to last. In addition to the LCD on the front panel, the built-in alarm LED makes warnings easily visible.
TR-55i-Pt is designed for use with Pt sensors and measures in the wide range of temperature from -199℃ to 600℃ with superior accuracy.
Main Specifications
| Channels | Temperature 1ch Pt100 / Pt1000 (sensor available as option) |
|---|---|
| Range | -199 to 600°C |
| Comm Interfaces | Optical |
| Waterproof Capacity | IP64 |
Special Features
Because the TR-55i-Pt is capable of measuring a wide range of temperature with high accuracy, it is perfect for recording temperature in research using deep freezers, high temperature testing, and low temperature testing.

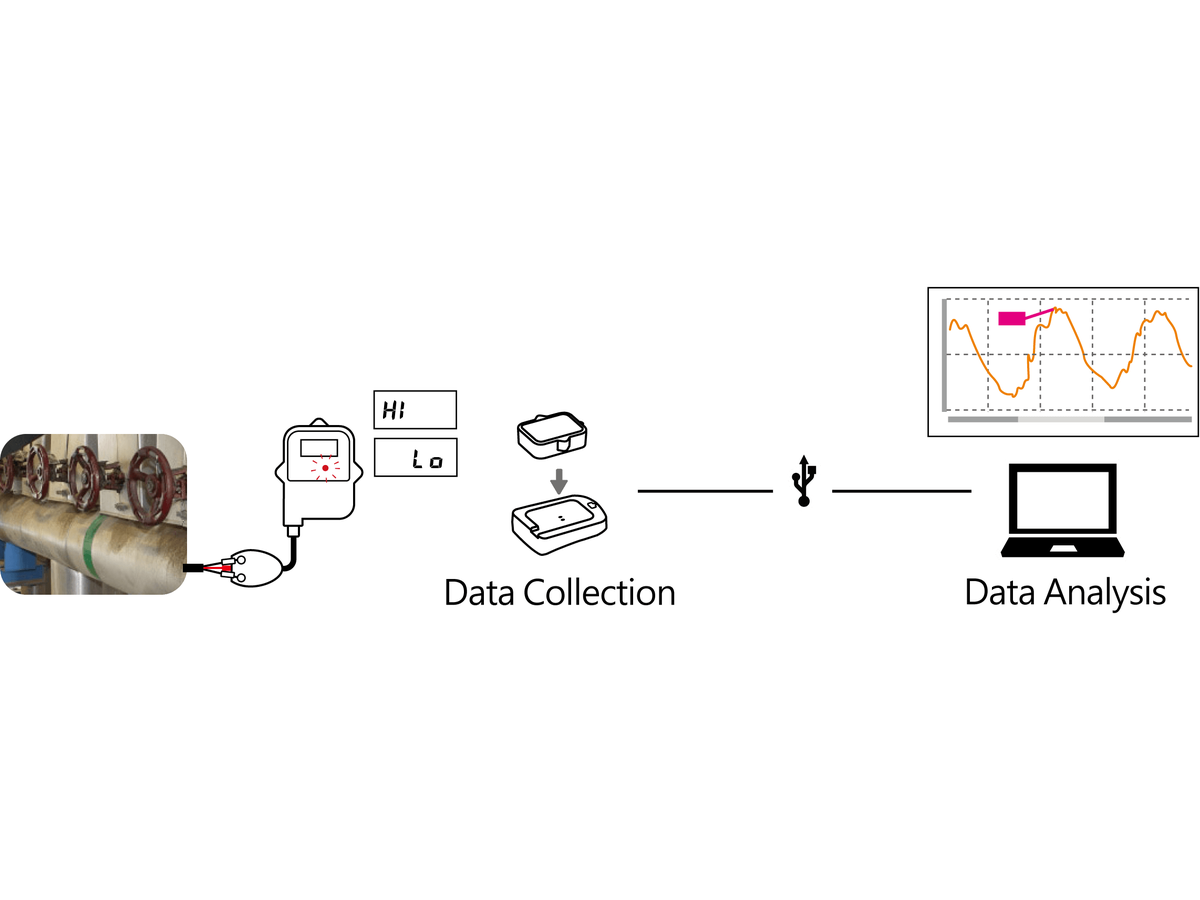

By connecting our Communication Port TR-50U2 to your PC via a USB cable, you can easily download data by placing the logger face down on the port. Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software “T&D Graph”.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-55i-Pt
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
