TR-55i-TC
T&D TR-55i-TC
Compact Thermocouple Temperature Logger with On-Face LED Alarm
Request a quoteDownload the datasheet
Overview
With dimensions of 62 x 47 x 19mm (2.4 x 1.8 x 0.75in) TR-5i series loggers may be small, but they are built to last. In addition to the LCD on the front panel, the built-in alarm LED makes warnings easily visible.
TR-55i-TC is designed for use with highly versatile thermocouple sensors and measures in the wide range of temperature from -199℃ to 1760℃.
Main Specifications
| Channels | Temperature 1ch Thermocouple: Type K, J, T, S (Sensor not provided) |
|---|---|
| Range | -199 to 1760 °C |
| Comm Interfaces | Optical |
| Waterproof Capacity | IP64 |
Special Features
As it is possible to connect to most commonly used thermocouple sensors in the industry for measuring middle to high range temperatures, TR-55i-TC is most suitable for temperature control management in facilities such as factories and plants. For customers who already have thermocouple sensors, all you need to do is connect and start recording!

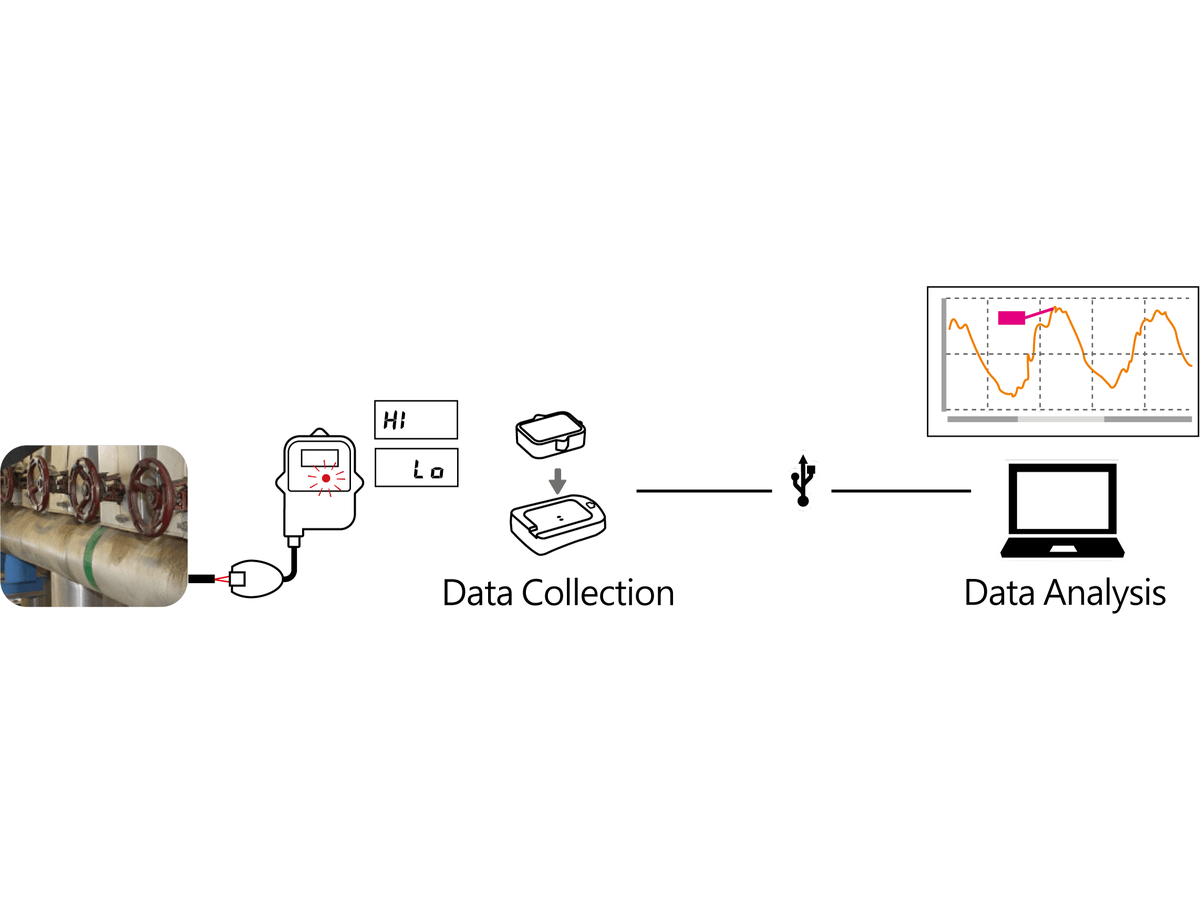

By connecting our Communication Port TR-50U2 to your PC via a USB cable, you can easily download data by placing the logger face down on the port. Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software “T&D Graph”.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-55i-TC
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
Related instruments
T&D RTR505BL
Compact Wireless Logger for Measuring Temperature, Voltage, Current, and Pulse / Large Capacity Battery Type
T&D TR75A2
Ultimate 2-channel thermocouple logger connectible via wireless LAN, Bluetooth and USB. Ideal for ultra low temperature vaccine monitoring!
T&D MCR-4TC
Thermocouple temperature loggers with 4 channels on a single unit.Connecting loggers makes it possible to simultaneously measure and record up to 16…
Sensor Extension Cable (TR-3C30)
Option recommended when you wish to extend the cable of the supplied sensor or input module.
Maintenance Set (TR-00P1)
This maintenance set is for use with the TR41A/42A/43A, RTR500B series, and TR-5i series data loggers.
Wall Attachment (TR-05K3)
This attachment is for use with the TR41A/42A/43A, RTR500B series, and TR-5i series data loggers.

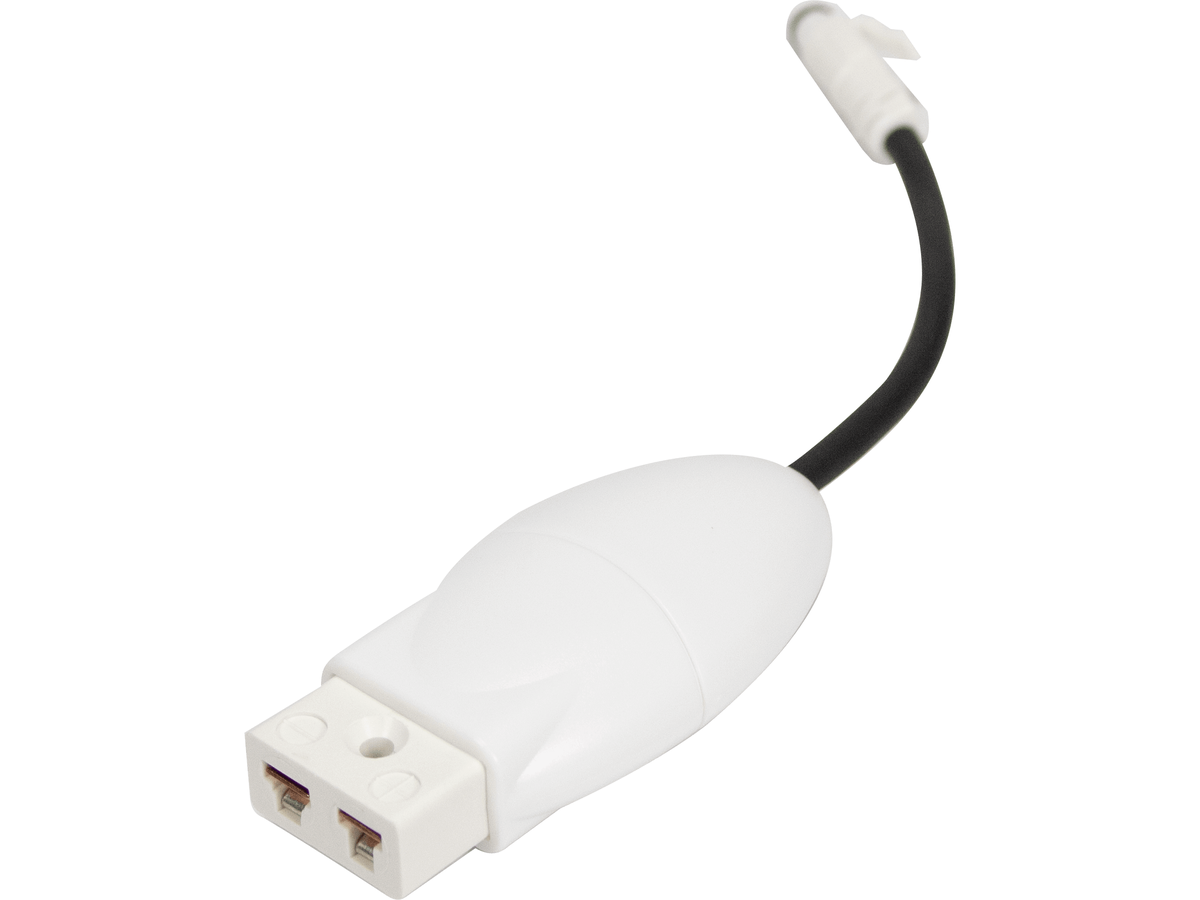

Thermocouple Module (TCM-3010)
