TR-74Ui-S
T&D TR-74Ui-S
Four-Item Logger for UV, Illuminance, and High Precision Temperature and Humidity
Request a quoteDownload the datasheet
Overview
The TR-7Ui series, with a simple USB connection to your PC, provides an easy way to make detailed settings and download data. Basic settings and REC start/stop can also be done by simply pressing buttons on the units themselves.
The TR-74Ui-S model can not only measure and record UV, Illuminance, temperature and humidity but can also record and display cumulative UV and Illuminance. For use in the protection of exhibits and archives in museums and libraries. This model comes with a high precision temperature-humidity sensor, making it perfect for situations where strict temperature and humidity control is required.
Main Specifications
| Channels | Illuminance, UV Intensity, Temperature, Humidity |
|---|---|
| Range | Illuminance: 0 to 130klx UV Intensity: 0 to 30mW/cm2 Temperature: -25 to 70°C, Humidity: 0 to 99%RH (-20°C~) |
| Comm Interfaces | USB, Serial |
Special Features

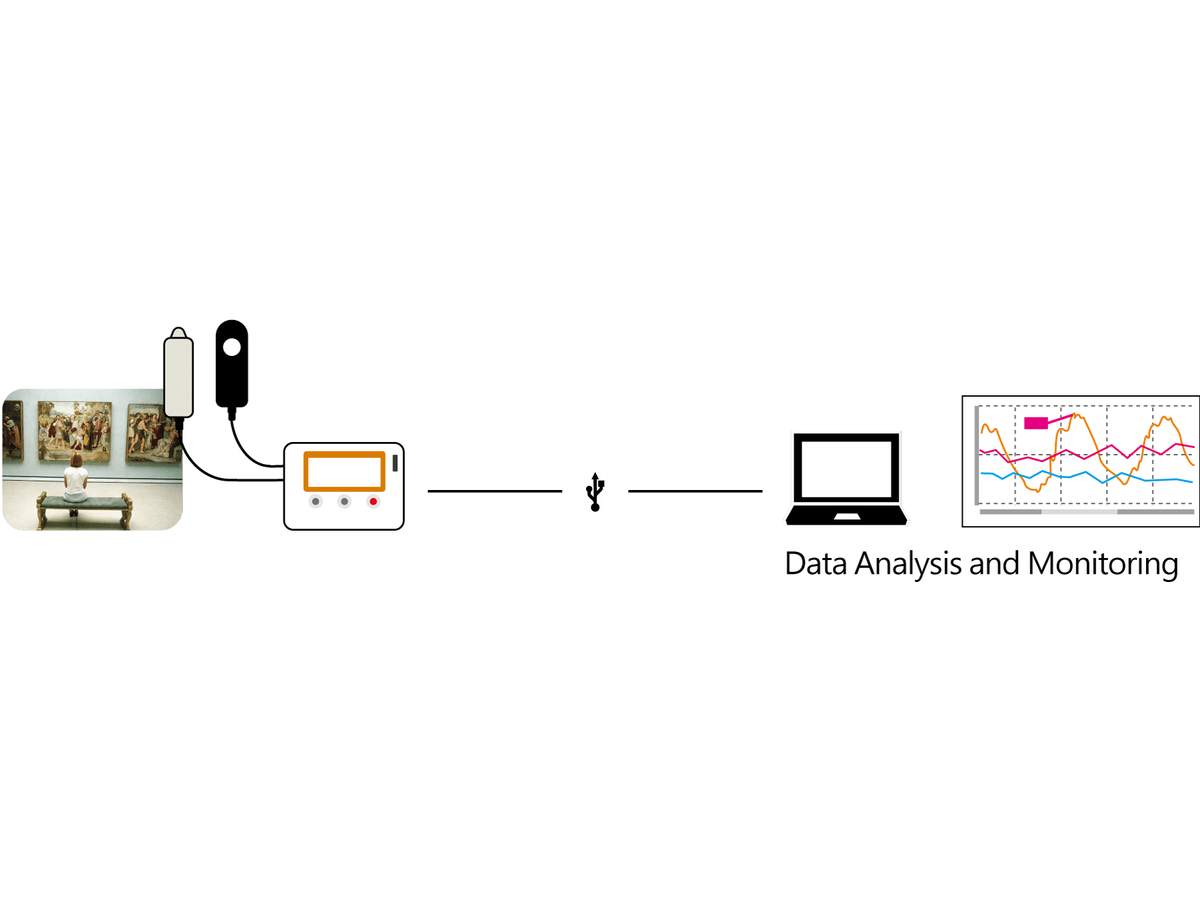

Simply place the TR-74Ui-S at the measurement site after starting recording. Recorded data can then be downloaded by connecting the logger to a PC with a USB cable and using our Windows software “Illuminance UV Recorder for Windows”. Data downloaded to your PC can then be viewed and analyzed with our Windows compatible software “T&D Graph”. By connecting a logger to your PC, it is also possible to monitor current readings using our Windows software.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR-74Ui-S
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
