TR72A2
T&D TR72A2
Ultimate IoT temperature and humidity logger connectible via wireless LAN, Bluetooth and USB!
Request a quoteDownload the datasheet
Overview
The TR72A2 allows you to measure and record temperature from 0 to 55°C and humidity from 10 to 95%RH.
The LCD screen allows the simultaneous display of either the current values of two channels, the highest and lowest values of channel 1, or the highest and lowest values of channel 2. The ALM icon on the LCD alerts the user of the occurrence of an alarm.
Use the wireless LAN feature (compatible with the enterprise communication) to auto-upload data to the cloud for anytime anywhere access and receive warning notifications. By using Bluetooth or USB, you can configure device settings, generate reports, download data, and view the uploaded data. You can download the recorded data and change the device settings on a PC via USB Connection. A USB cable (option US-15C) is required to connect the device to a PC.
Note: The TR7A2 series is the successor model of our TR7A series.
Main Specifications
| Channels | Temperature 1ch, Humidity 1ch (External) |
|---|---|
| Range | Temperature: 0 to 55°C Humidity: 10 to 95%RH |
| Comm Interfaces | Wireless LAN, USB, Bluetooth 4.2 (Bluetooth Low Energy) |
| Waterproof Capacity | None |
Special Features

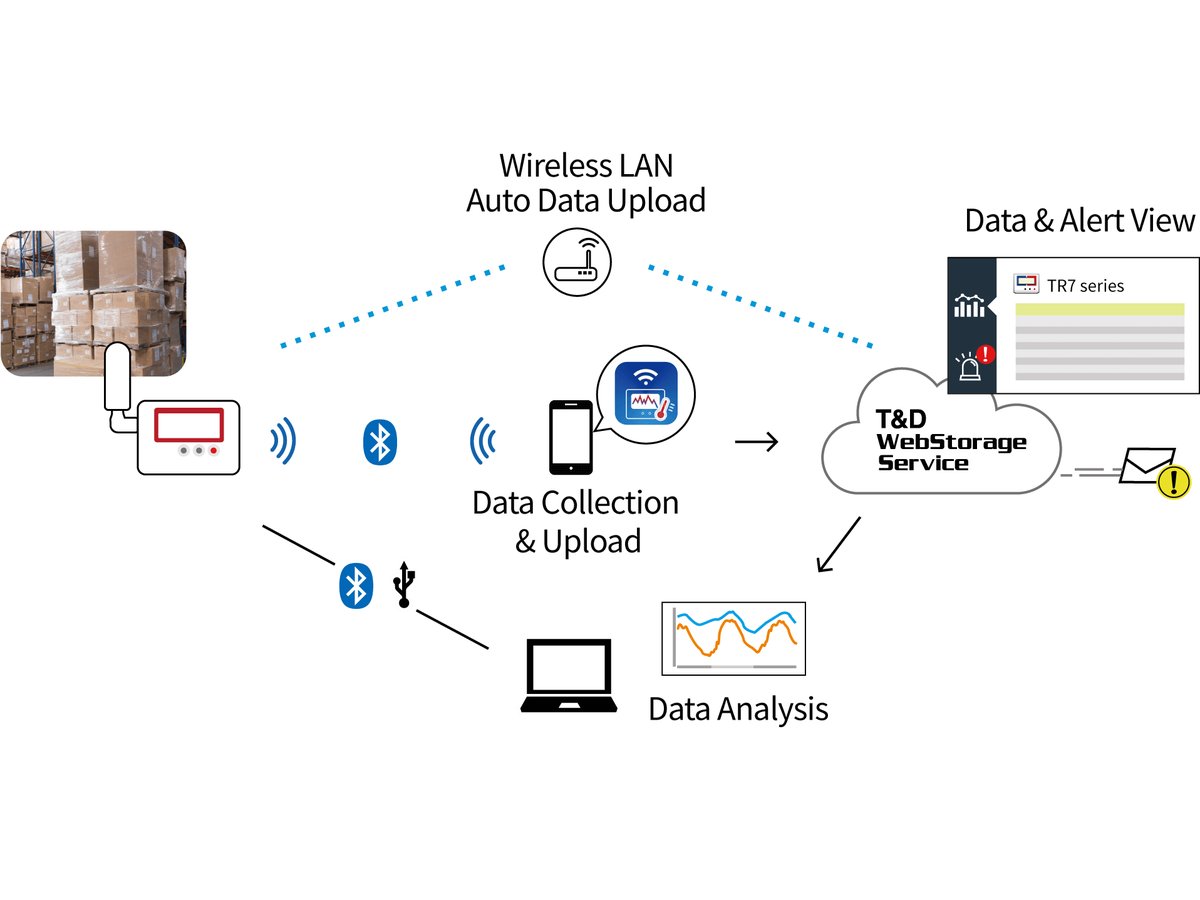

The TR72A2 uses a wireless LAN access point to auto-upload recorded data and warning notifications to our free-of-charge cloud-based “T&D WebStorage Service”. You can download data and configure device settings using our dedicated app "TR7 for Windows (for Windows)" or "T&D Thermo (for smartphone / tablet)". By using our Windows software “T&D Graph”, you can easily view and analyze data from a PC.
Configure the instrument
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
TR72A2
A code can be pasted and the configuration builds itself.
Services and accessories
They are quoted separately: the instrument need not be configured.
Documents
Related instruments
T&D RTR503BL
Compact Wireless Logger for Measuring Temperature and Humidity with Extended Battery Life
T&D TR71A2
Ultimate 2-channel IoT temperature loggers connectible via wireless LAN, Bluetooth and USB. Ideal for monitoring temperature of vaccines.
T&D TR72A2-S
High precision IoT temperature and humidity logger connectible via wireless LAN, Bluetooth and USB!
T&D TR75A2
Ultimate 2-channel thermocouple logger connectible via wireless LAN, Bluetooth and USB. Ideal for ultra low temperature vaccine monitoring!
High Precision Temperature-Humidity Sensor (SHA-3151)
This sensor is supplied with the '-S' type models and also available as an option for the regular type (without -S) models.
Temperature-Humidity Sensor (THA-3151)
This is our standard temperature-humidity sensor for use with the TR72A2/72A2-S, TR-72nw/72nw-S, RTR-574/574-S, RTR-576/576-S, TR-74Ui/74Ui-S, and…

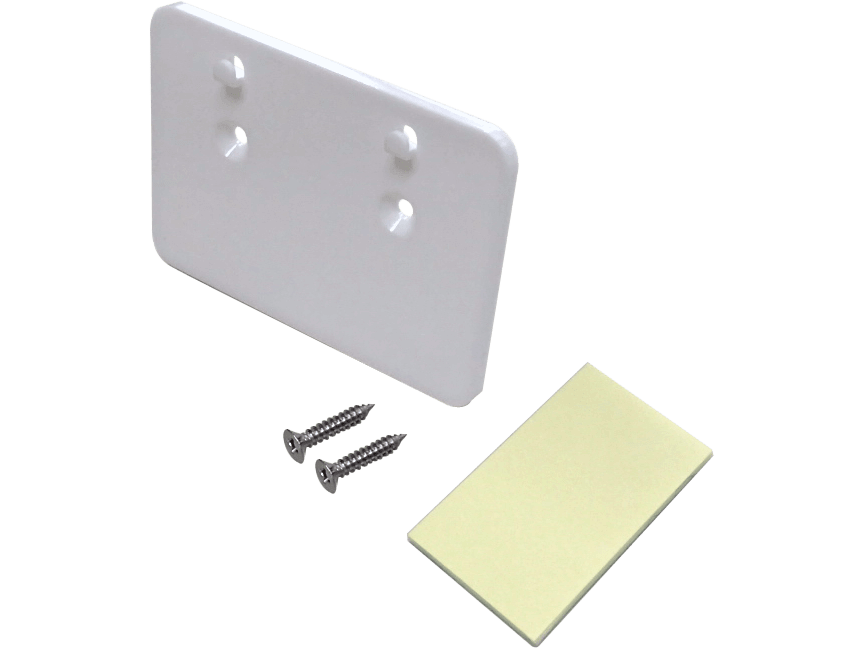

Wall Attachment (TR-07K2)
