Using the LogTag® Interface and the freely available companion software LogTag® Analyzer , the LogTag® is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.
Readings are downloaded using LogTag® Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.

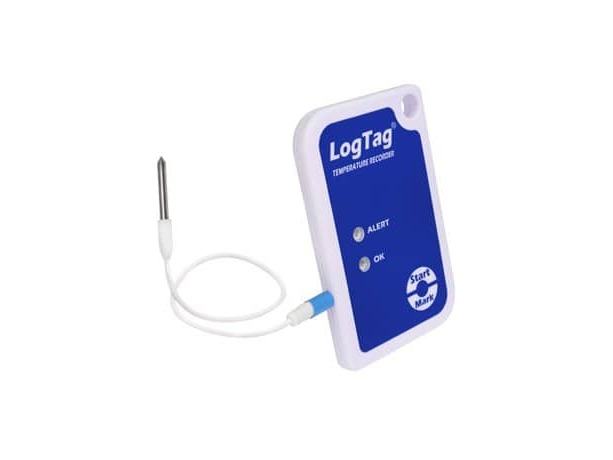

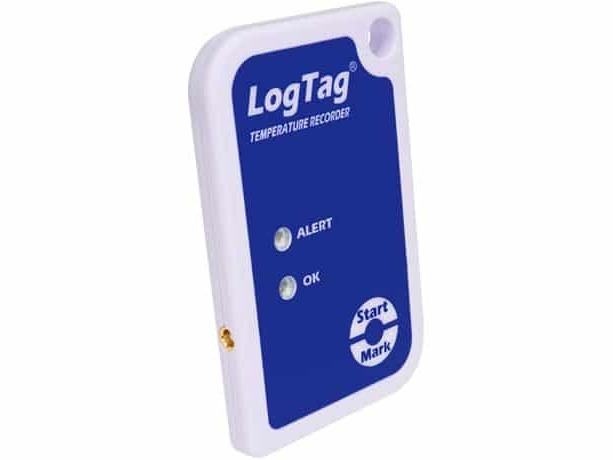

The LogTag® Remote Probe Temperature Recorder measures and stores up to 8000 temperature readings over -40 °C to +99 °C measurement range.

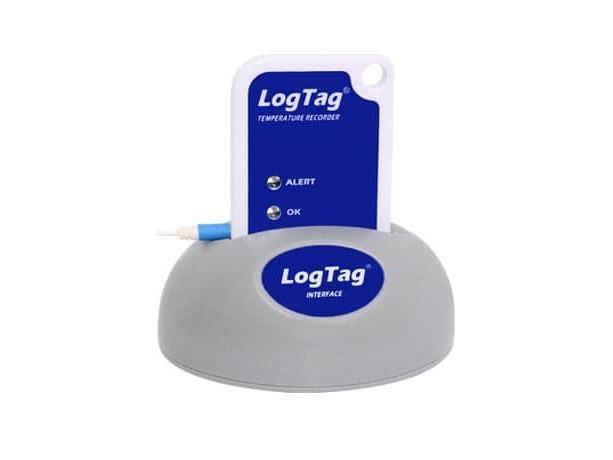

Please note: An interface is required for configuration and reporting
| Product Model | TREX-8 |
|---|---|
| External Temperature Sensor Measurement Range | -40 °C to +99 °C (-40 °F to +210 °F) |
| Recorder Operating Temperature Range | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature Range | -10 °C to +55 °C (14 °F to +131 °F) |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C (±0.9 °F) for -10 °C to +40 °C (14 °F to +104 °F). Better than ±0.7 °C (±1.3 °F) for -30 °C to -10 °C (-22 °F to 14 °F) & +40 °C to +60 °C (104 °F to 14 0°F). Better than ±0.8 °C (±1.4 °F) for -40 °C to -30 °C (-40 °F to -22 °F) & +60 °C to +80 °C (140 °F to 176 °F). Better than ±1.0 °C (±1.8 °F) for +80 °C to +99 °C (176 °F to 210 °F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration |
| Rated Temperature Reading Resolution | Less than 0.1 °C (0.2 °F) for measurements -40 °C to +40 °C (-40 °F to +104 °F). Less than 0.2 °C (0.4 °F) for measurements +40 °C to +80 °C (+104 °F to +176 °F). Less than 0.6 °C (0.5 °F) for measurements +80 °C to +99 °C (+176 °F to +210 °F). LogTag Analyzer® currently displays to one decimal place of °C or °F |
| Sensor Reaction Time | Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H & ST100S types |
| Recording Capacity | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 72 hours |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator |
| Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used |
| Environmental | IP61 |
| Power source | CR2450 3V LiMnO2 Battery (Fixed) |
| Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly) |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Standard Remote Sensor Cable Length | Standard: 1.5 m (4’11”)Extended: 3 m (9’10”) (Recommended maximum) |
| Remote Sensor Cable Type | PTFE (FDA food contact rated), coaxial |
| Size | 86 mm(H) x 54.5 mm(W) x 8.6 mm(T) |
| Weight | 36 g (without External Probe) |
| Case Material | Polycarbonate |
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
A code can be pasted and the configuration builds itself.
They are quoted separately: the instrument need not be configured.
The LogTag® Glycol Buffer is used where the temperature of vaccines needs to be monitored during storage or transport.
For all current LogTag® models excluding indicators and UTRED30/UTREL30 loggers
Long pointed Tipped Standard Temperature Probe with Handle. Short cable. 5mm Ø × 105mm long. 1.5 m (4'11")
Long pointed Tipped Standard Temperature Probe with Handle. Long cable. 5mm Ø × 105mm long. 3 m (9'10")
Short Tipped Standard Temperature range Probe. Short cable. 3.2mm Ø × 40mm long. 1.5 m (4'11")
Short Tipped Standard Temperature range Probe. Long cable. 3.2mm Ø × 40mm long. 3 m (9'10")
Medium round Tipped Standard Temperature range Probe. Short cable. 3.2mm Ø × 65mm long. 1.5 m (4'11")
Medium round Tipped Standard Temperature range Probe. Long cable. 3.2mm Ø × 65mm long. 3 m (9'10")
Long, round Tipped Standard Temperature range Probe. Short cable. 3.2mm Ø × 90mm long. 1.5 m (4'11")
Long, round Tipped Standard Temperature range Probe. Long cable. 3.2mm Ø × 90mm long. 3 m (9'10")
Short Round Tipped Standard Temperature range Probe. Short cable. 5mm Ø × 22.5mm long. 1.5 m (4'11")
Short Round Tipped Standard Temperature range Probe. Long cable. 5mm Ø × 22.5mm long. 3 m (9'10")
Long, pointed Tipped Standard Temperature range Probe. Short cable. 5mm Ø × 137.5mm long. 1.5 m (4'11")
Long, pointed Tipped Standard Temperature range Probe. Long cable. 5mm Ø × 137.5mm long. 3 m (9'10")
Extension Cable for All External Sensors (excluding Smart Probes). Temperature range -46 °C to +74 °C (-50.8 °F to 165.2 °F). 5 m (16'5")
