UTREL-16F
Multi-use low temperature Logger with USB and external probe
Request a quoteDownload the datasheet

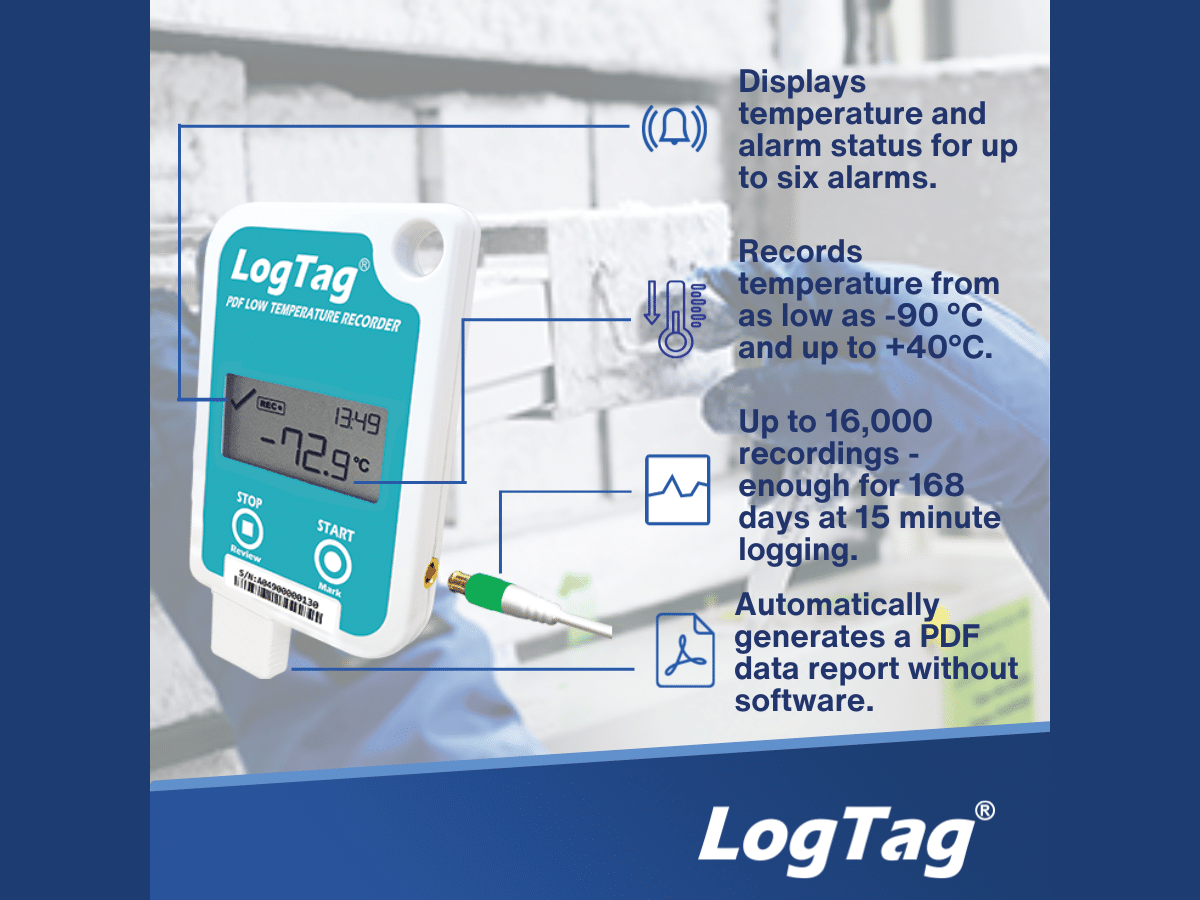

The display shows recording status, current temperature, alarm status of up to six user-configurable alarms and duration of any temperature excursions.
When the UTREL-16F is connected to a computer using the integrated USB plug, a detailed PDF report of the recorded temperature data and alarms can be automatically generated without the need for extra accessories and proprietary software. For more detailed data analysis, the UTREL-16F also creates an encrypted data file compatible with LogTag Analyzer® operating software and data management options.
The UTREL-16F connects to a computer USB port for easy configuration by the user for a wide range of recording and alert conditions. Upon download, it automatically generates a fully detailed PDF report with the option to download the data using the freely available LogTag®Analyzer software for a more detailed analysis.
| Product Model | UTREL-16F |
|---|---|
| External Temperature Sensor Measurement Range | -90 °C to +40 °C (-130 °F to +104 °F) |
| Temperature Sensor Measurement range | -90 °C to +40 °C (-130 °F to +104 °F) |
| Recorder Operating Temperature Range | -30 °C to +60 °C (-22 °F to +140 °F) |
| Storage Temperature Range | 0 °C to +40 °C (32 °F to +104 °F) |
| Rated Temperature Reading Accuracy | Better than ±0.5 °C for -20 °C to +10 °C (-4 °F to 50 °F); Better than ±0.7 °C for -50 °C to -20 °C (-58 °F to -4 °F) and +10 °C to +30 °C (50 °F to 86 °F); Better than ±1 °C for -80 °C to -50 °C (-112 °F to -58 °F ) and +30 °C to +40 °C (86 °F to 104 °F); Better than ±1.8 °C for -90 °C to -80 °C (-130 °F to -112 °F) |
| Rated Temperature Reading Resolution | 0.1 °C (0.2 °F) for measurements -80 °C to 10 °C (-112 °F to 50 °F); 0.2 °C (0.4 °F) for measurements 10 °C to 20 °C (50 °F to 68 °F) and -90 °C to -80 °C (-130 °F to -112 °F); 0.3 °C (0.5 °F) for measurements 20 °C to 30 °C (68 °F to 86 °F); 0.5 °C (0.9 °F) for measurements 30 °C to 40 °C (86 °F to 104 °F); LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag |
| Recording Capacity | 16,129 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values |
| Sampling Interval | Configurable from 30 seconds to 18 hours |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 72 hours |
| Recording Indication | “REC” symbol on LCD |
| Alarms | Three configurable upper and three configurable lower alarms |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured) |
| Environmental | IP61 (when vertically mounted or hung with USB dust-cap in place) |
| Power source | CR2450 3V LiMnO2 (Fixed battery) |
| Battery Life | Storage life of 1 year before ‘start’ (if it is hibernation mode), followed by: 2 years of normal use (based on 15 minute logging, download data monthly) |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically ± 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 3.1.9 or higher |
| Size | 93 mm(H) x 54.5 mm(W) x 8.6 mm(T) including protective USB cap |
| Weight | 39 g |
| Case Material | Polycarbonate |
| PDF Report | One page report with trip and alarm summary. Multi-page report with list of readings, including date and time |
Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
Loading the options…
A code can be pasted and the configuration builds itself.
They are quoted separately: the instrument need not be configured.
The LogTag® Glycol Buffer is used where the temperature of vaccines needs to be monitored during storage or transport.
For all current LogTag® models excluding indicators and UTRED30/UTREL30 loggers
Medium Tipped Ultra-Low Temperature range Probe. Short cable. 5mm Ø × 60mm long. 1.5 m (4'11")
Medium Tipped Ultra-Low Temperature range Probe. Long cable. 5mm Ø × 60mm long. 3 m (9'10")
Short Tipped Ultra-Low Temperature range Probe. Tiny cable. 5mm Ø × 22.5mm long. 0.5 m (1'8")
Short Tipped Ultra-Low Temperature range Probe. Short cable. 5mm Ø × 22.5mm long. 1.5 m (4'11")
Short Tipped Ultra-Low Temperature range Probe. Long cable. 5mm Ø × 22.5mm long. 3 m (9'10")
Extension Cable for All External Sensors (excluding Smart Probes). Temperature range -46 °C to +74 °C (-50.8 °F to 165.2 °F). 5 m (16'5")
