HydroStation-Series

Geolux HydroStation

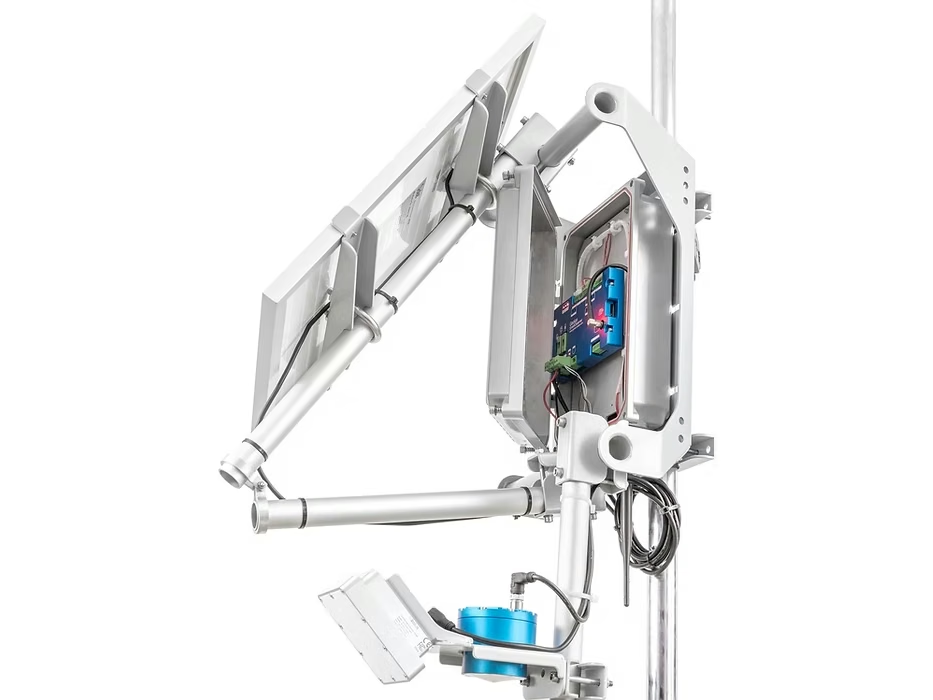

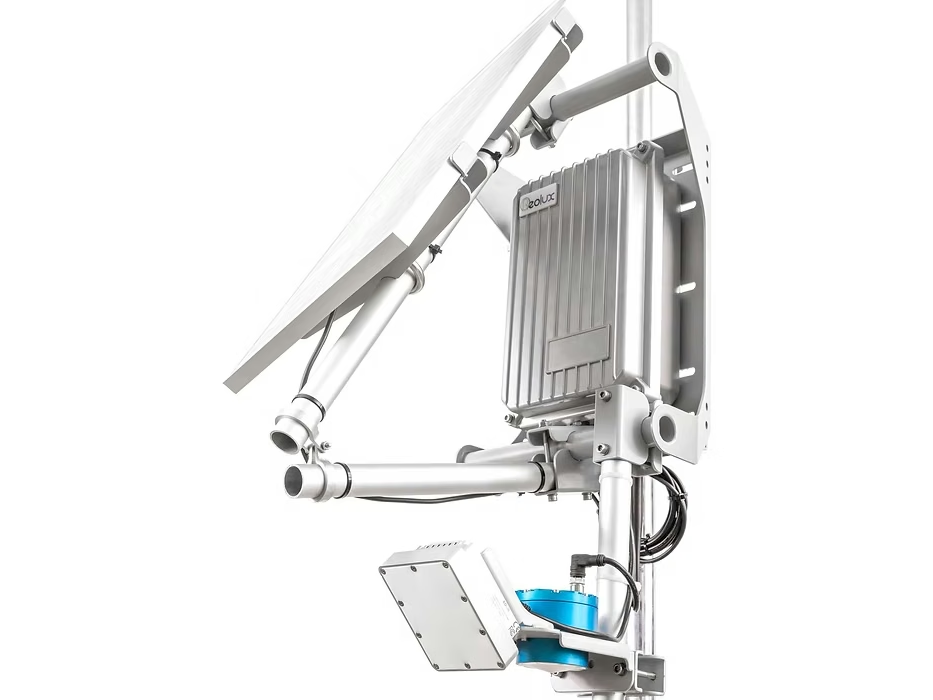

The Geolux HydroStation is a compact, automated hydrological monitoring station designed to provide seamless integration of hydrological instruments with the datalogger, power supply system, and mounting accessories. This all-in-one package simplifies the installation process by combining essential equipment needed for accurate and reliable hydrology monitoring into a single, preassembled unit.

Request a quoteDownload the datasheet

Geolux HydroStation

Features

  • Complete, integrated solution for hydrology measurements.
  • Self-sustaining with a solar panel, battery, and datalogger featuring an integrated MPPT battery charger.
  • Easy integration of third-party hydrometeorological sensors.
  • Robust, modular design with IP68 waterproof and vandal-proof enclosure.
  • Preassembled for fast and simple on-site installation.
Geolux HydroStation

Description

The HydroStation includes a solar panel and battery system, offering a completely self-sustaining power supply, along with a SmartObserver datalogger equipped with an integrated MPPT battery charger and communication module. Geolux radar instruments for water level and surface velocity measurement are also part of the package, with the option to extend the HydroStation with various third-party instruments such as water quality probes or meteorological sensors. The datalogger and battery are housed in a robust, IP68-rated enclosure that is both waterproof and vandal-proof.

Preassembled by Geolux, the HydroStation ensures quick and straightforward on-site installation. Various mounting options are available to accommodate different environments, with detailed descriptions provided in the Mounting Solutions chapter of this document.

The HydroStation is fully compatible with Geolux HydroView, a cloud-based software platform that offers continuous real-time monitoring of all measurements.

Geolux HydroStation

Specifications

ParameterHydroLevelHydroFlowHydroVelocityHydroQualityMeteoStationAirQStationCustomStation
Power Supply20 W/50 W solar panel AC/DC power supply20 W/50 W solar panel AC/DC power supply20 W/50 W solar panel AC/DC power supply20 W/50 W solar panel AC/DC power supply20 W/50 W solar panel AC/DC power supply20 W/50 W solar panel AC/DC power supply20 W/50 W solar panel AC/DC power supply
Backup Battery30 Ah lithium-ion / 7 Ah lithium-ion30 Ah lithium-ion / 7 Ah lithium-ion30 Ah lithium-ion / 7 Ah lithium-ion30 Ah lithium-ion / 7 Ah lithium-ion30 Ah lithium-ion / 7 Ah lithium-ion30 Ah lithium-ion / 7 Ah lithium-ion30 Ah lithium-ion / 7 Ah lithium-ion
IP RatingIP68IP68IP68IP68IP68IP68IP68
Installed Instruments or measured parameterGeolux LX-80 radar level sensorGeolux LX-80 radar level sensor & Geolux RSS-2-300W surface velocity sensor OR Geolux RSS-2-300WL flow sensorGeolux RSS-2-300W surface velocity sensorTurbidity, Conductivity, pH, DO, Nitrate, Chlorine, Redox Integration of any water quality sensorRG200/400 Tipping bucket and/or Wind – direction and speed and/or Air temperature and humidityAX500 Air Quality Wind – direction and speed Air temperature and humidityCustom
Optional Geolux InstrumentsHydroTemp HydroCam RG200/400HydroTemp HydroCam RG200/400HydroTemp HydroCam RG200/400HydroTemp HydroCam RG200/400HydroCamHydroCamCustom
Optional Other InstrumentsAny SDI-12 or Modbus compatible deviceAny SDI-12 or Modbus compatible deviceAny SDI-12 or Modbus compatible deviceAny SDI-12 or Modbus compatible deviceAny SDI-12 or Modbus compatible deviceAny SDI-12 or Modbus compatible deviceAny SDI-12 or Modbus compatible device
ConnectivityGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satelliteGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satelliteGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satelliteGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satelliteGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satelliteGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satelliteGPRS 2G/3G/4G NB-IoT Optional LoRaWAN Optional satellite
Mounting SolutionPole/Bridge/WallPole/Bridge/WallPole/Bridge/WallPole/Bridge/WallPole/Bridge/WallPole/Bridge/WallPole/Bridge/Wall

Configure the instrument

Choose the model, probes and accessories. Incompatible combinations are blocked as you go; the remaining rules are checked when the instrument is added to the quote.
